74LVC32A

Document number: DS35263 Rev. 3- 2

1 of 10

www.diodes.com

January 2014

© Diodes Incorporated

74LVC32A

QUADRUPLE 2-INPUT OR GATES

Description

The 74LVC32A provides four independent 2-input OR gates. The

device is designed for operation with a power supply range of 1.65V

to 3.6V. The inputs are tolerant to 5.5V allowing this device to be

used in a mixed voltage environment. The device is fully specified for

partial power down applications using IOFF. The IOFF circuitry

disables the output preventing damaging current backflow when the

device is powered down.

The gates perform the positive Boolean function:

B

A

Y

+

=

or

B

A

Y

=

Features

• Supply Voltage Range from 1.65V to 3.6V
• Sinks 24mA at V

CC

= 3.3V

• CMOS low power consumption
• IOFF Supports Partial-Power-Down Mode Operation
• Inputs or outputs accept up to 5.5V
• Inputs can be driven by 3.3V or 5.5V allowing for voltage

translation applications.

• ESD Protection Exceeds JESD 22

ƒ

200-V Machine Model (A115)

ƒ

2000-V Human Body Model (A114)

• Latch-Up Exceeds 250mA per JESD 78, Class I
• Range of Package Options SO-14 and TSSOP-14
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)



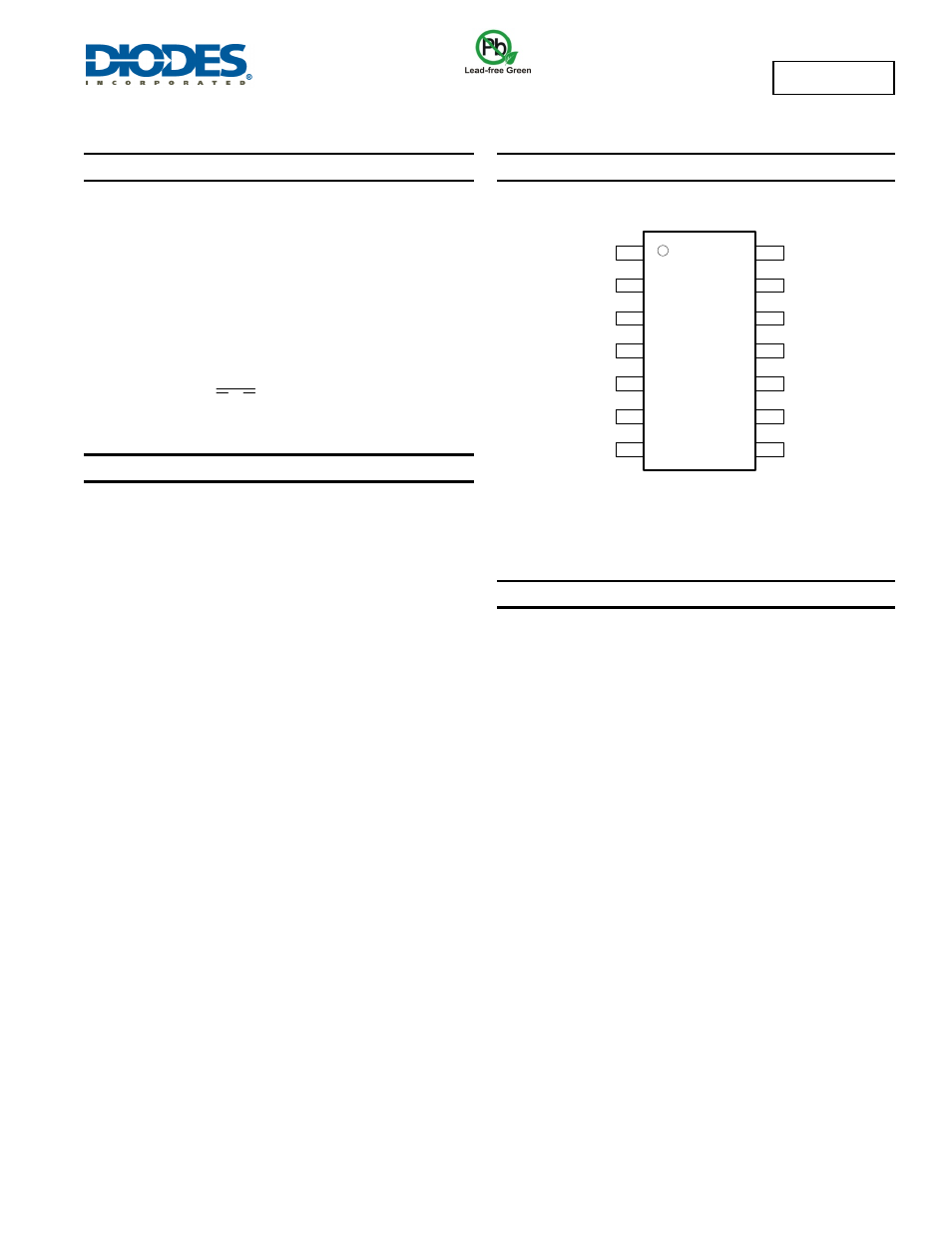

Pin Assignments

1

3

2

4

5

6

7

1A

1Y

1B

2A

2B

2Y

GND

13

14

12

11

10

9

8

4B

4Y

4A

3B

3A

3Y

Vcc

( Top View )

SO-14 / TSSOP-14

Applications

Voltage Level Shifting

General Purpose Logic

Power Down Signal Isolation

Wide array of products such as:

ƒ

PCs, networking, notebooks, ultrabooks, netbooks, PDAs

ƒ

Computer peripherals, hard drives, CD/DVD ROM

ƒ

TV, DVD, DVR, set top box





Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
