74LV04A
NEW PROD
UC
T
Pin Descriptions
Pin Number Pin Name
Description
1 1A
Data
Input
2 1Y
Data
Output
3 2A
Data
Input
4 2Y
Data
Output
5 3A
Data
Input
6 3Y
Data
Output
7 GND
Ground
8 4Y
Data
Output
9 4A
Data
Input
10 5Y
Data
Output
11 5A
Data
Input
12 6Y
Data
Output
13 6A
Data
Input
14 Vcc
Supply
Voltage

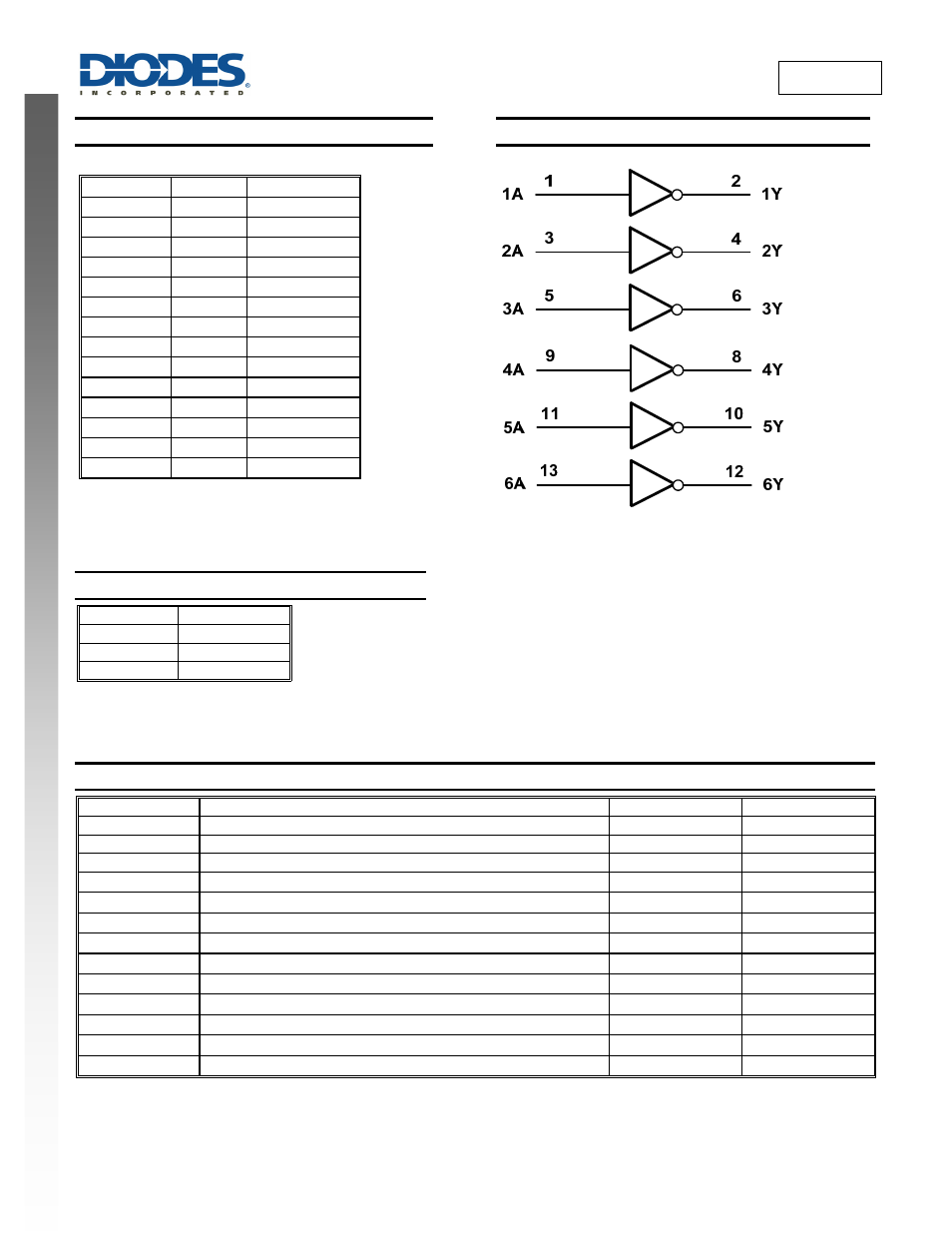

Logic Diagram
Function Table
Input Output
A Y
H L
L H
Absolute Maximum Ratings
(Note 4)
(@T
A
= +25°C, unless otherwise specified.)
Symbol Parameter Rating
Unit
ESD HBM
Human Body Model ESD Protection
2
kV
ESD CDM
Charged Device Model ESD Protection
1
kV
ESD MM
Machine Model ESD Protection
200
V
V
CC
Supply Voltage Range
-0.5 to +7.0
V
V
I
Input Voltage Range (Note 4)
-0.5 to +7.0
V
I
IK
Input Clamp Current V
I
< 0V
-20 mA
I
OK
Output Clamp Current V
O
<-0V
-50
mA
I
O
Continuous Output Current - 0.5V < V
O
Vcc + 0.5V
±25 mA
I
CC
Continuous Current Through Vcc
50
mA
I
GND
Continuous Current Through GND
-50
mA
T
J
Operating Junction Temperature
-40 to +150
°C
T
STG
Storage Temperature
-65 to +150
°C
P
TOT
Total Power Dissipation
500
mW
Note:
4. Stresses beyond the absolute maximum may result in immediate failure or reduced reliability. These are stress values and device operation should be
within recommend values.
