AP431/AP431A
Document number: DS31002 Rev. 21 - 2
14 of 17
www.diodes.com
June 2013
© Diodes Incorporated
AP431/AP431A

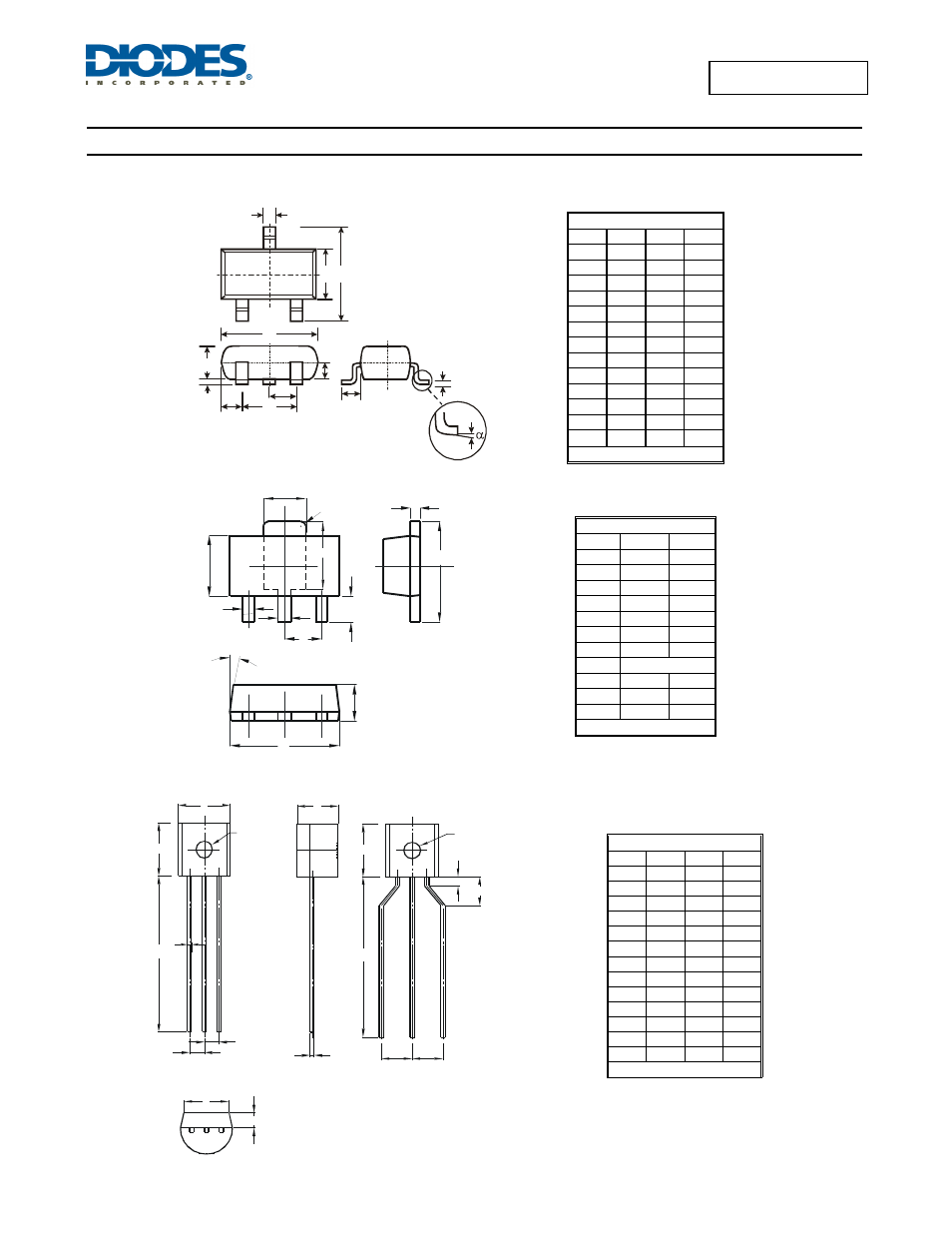

Package Outline Dimensions
(cont.) (All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
(4) SOT23 and SOT23R
(5) SOT89
(6) TO92
SOT23
Dim Min Max Typ
A 0.37 0.51 0.40
B 1.20 1.40 1.30
C 2.30 2.50 2.40
D 0.89 1.03 0.915
F 0.45 0.60 0.535
G 1.78 2.05 1.83
H 2.80 3.00 2.90
J 0.013 0.10 0.05
K 0.903 1.10 1.00
K1 - - 0.400
L 0.45 0.61 0.55
M 0.085 0.18 0.11
 0° 8° -
All Dimensions in mm
SOT89
Dim Min Max
A 1.40 1.60
B 0.44 0.62
B1 0.35 0.54
C 0.35 0.44
D 4.40 4.60
D1 1.62 1.83
E 2.29 2.60
e 1.50 Typ
H 3.94 4.25
H1 2.63 2.93
L 0.89 1.20
All Dimensions in mm
TO92
Dim Min Max Typ
A 3.45 3.66 —
B 4.27 4.78 —
b — — 0.38
c — — 0.38
D — — 3.87
E 4.32 4.83 —
e — — 1.27
e2 2.40 2.90 —
L 12.98 15.00 —
L1 12.80 15.00 —
L2 0.80 —
L3 2.00 3.00 —
N 1.22 1.37 —
All Dimensions in mm
A
M
J L
D
F
B C
H
K
G
K1
E
H
D1
B1 B
e
C
L
A
D
8° (4X)
H
1
R0
.2
00
EJECTION
MARK
LOOSE PRODUCT
TAPED PRODUCT
EJECTION
MARK
B
E
b
e
e
D
N
c
e2 e2
L1
E
L2
L3
A
L
