AP431/AP431A
Document number: DS31002 Rev. 21 - 2
13 of 17
www.diodes.com
June 2013
© Diodes Incorporated
AP431/AP431A

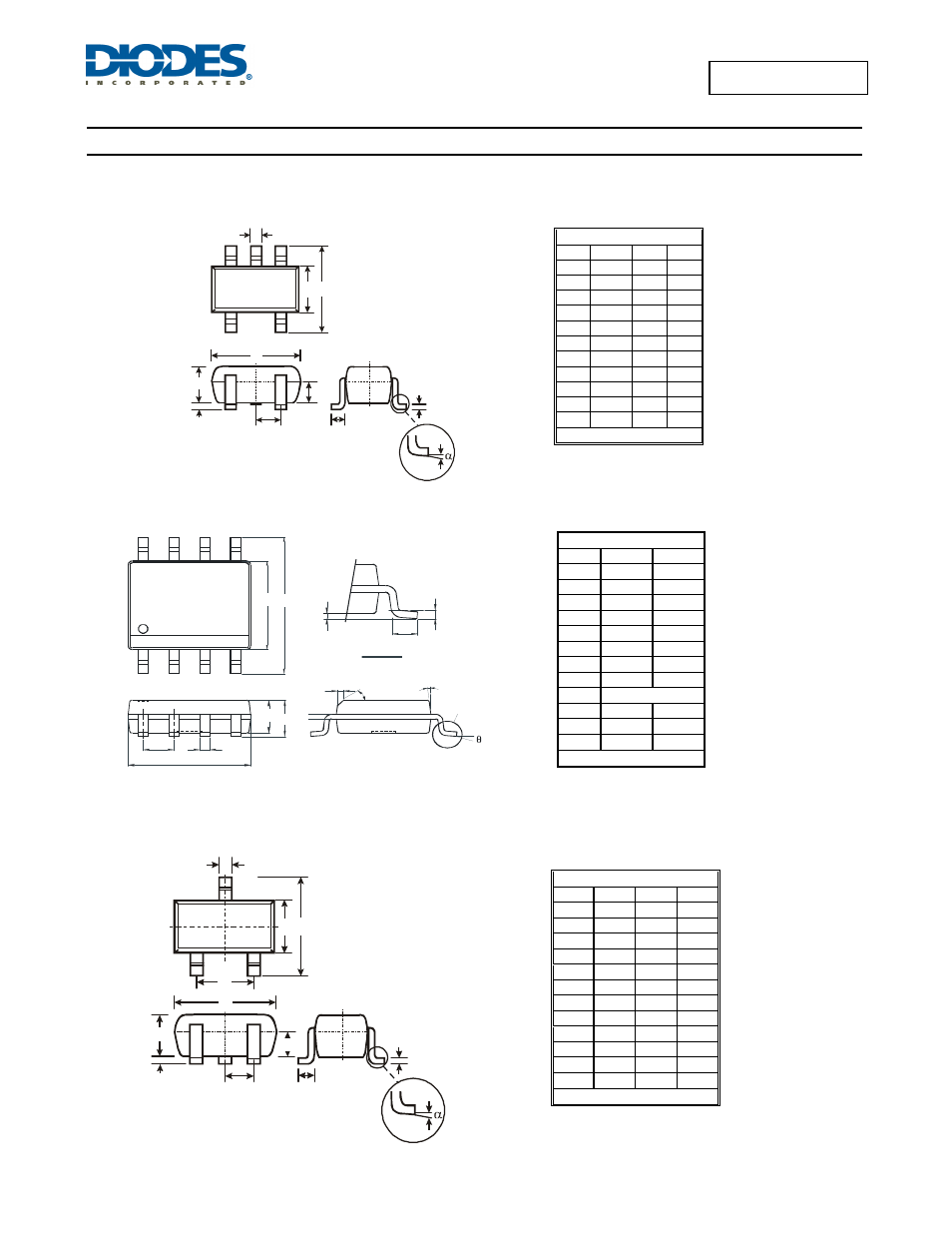

Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
(1) SOT25
(2) SO-8
(3) SC59 and SC59R
SOT25
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D   0.95
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
N 0.70 0.80 0.75
 0° 8° 
All Dimensions in mm
SO-8
Dim Min Max
A - 1.75
A1 0.10 0.20
A2 1.30 1.50
A3 0.15 0.25
b 0.3 0.5
D 4.85 4.95
E 5.90 6.10
E1 3.85 3.95
e 1.27 Typ
h - 0.35
L 0.62 0.82
 0  8 
All Dimensions in mm
SC59
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D - - 0.95
G - - 1.90
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
N 0.70 0.80 0.75
 0° 8° -
All Dimensions in mm
A
M
J
L D
B C
H
K
N
Gauge Plane
Seating Plane
Detail ‘A’
Detail ‘A’
E E1
h
L
D
e b
A2
A1
A
45 °
7 °~ 9 °
A3
0.
2
5
4
A
M
J
L D
B C
H
K
G
N
