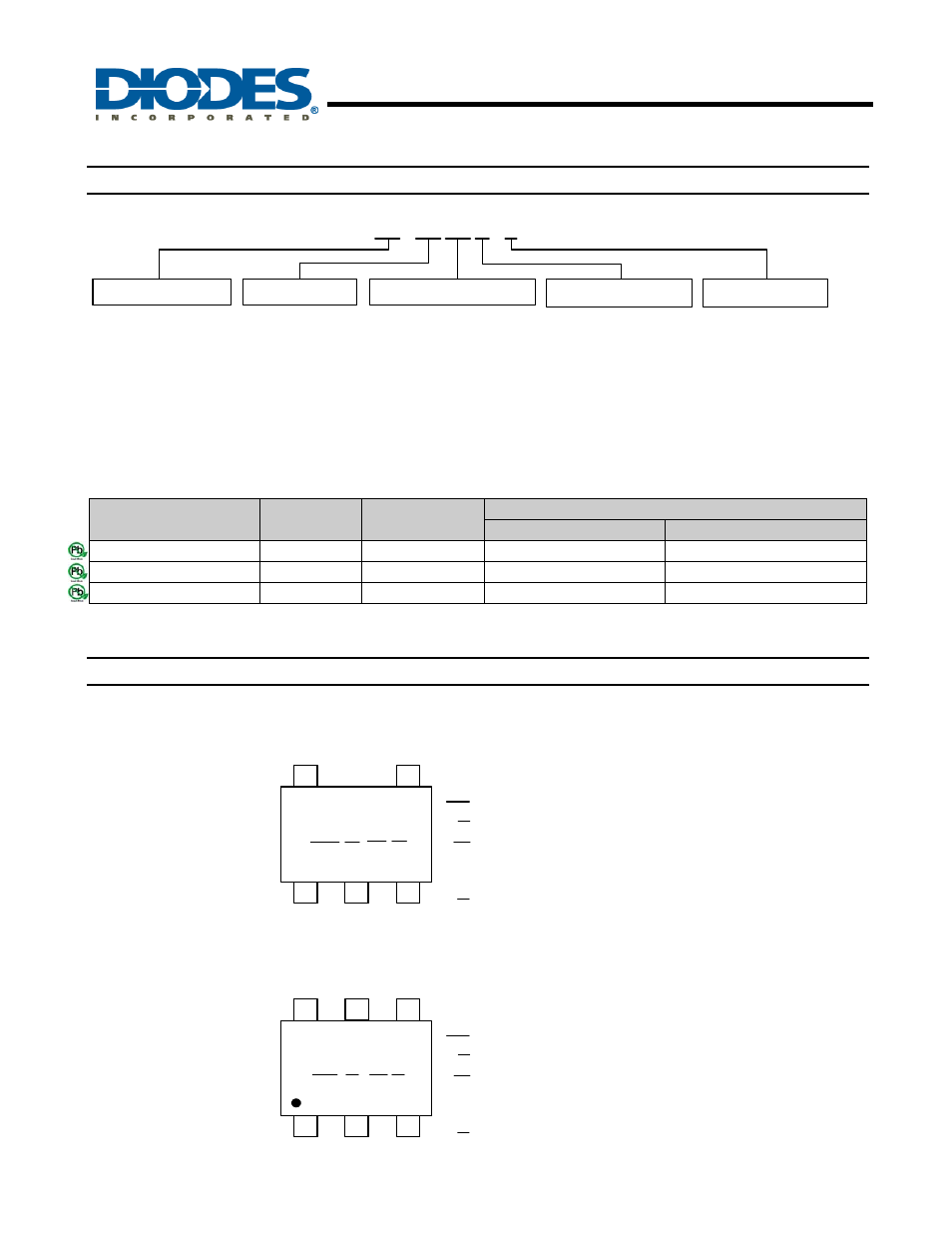

Ordering Information
APX82 XX - XX XX G - 7
Part No.
3 : APX823
4 : APX824
Voltage
46 : 4.63
44 : 4.38
40 : 4.00
31 : 3.08
29 : 2.93
26 : 2.63
23 : 2.25
5A : APX825A
Package
W5 : SOT25
W6 : SOT26
Green
Packing
G : Green
7 : Tape & Reel
Device
Package Code
Packaging
(Note 5)
7” Tape and Reel
Quantity
Part Number Suffix
APX823-XXW5G-7
W5
SOT25
3000/Tape & Reel
-7
APX824-XXW5G-7
W5
SOT25
3000/Tape & Reel
-7
APX825A-XXW6G-7
W6
SOT26
3000/Tape & Reel
-7
Notes:
5. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
Marking Information
(1) SOT25
1
2
3
5
7
4
XX Y W X
( Top View )
XX : Identification code
W : Week : A~Z : 1~26 week;
X : A~Z : Green
Y : Year 0~9
a~z : 27~52 week; z represents
52 and 53 week
(2) SOT26
1
2
3
6
7
4
XX Y W X
( Top View )
XX : Identification code
W : Week : A~Z : 1~26 week;
X : A~Z : Green
Y : Year 0~9
a~z : 27~52 week; z represents
52 and 53 week
