AP78L05/08/12
AP78LXX SERIES 3-TERMINAL POSITIVE REGULATORS
AP78L05/08/12
Document number: DS31054 Rev. 10 - 2
15 of 16
www.diodes.com
March 2012
© Diodes Incorporated

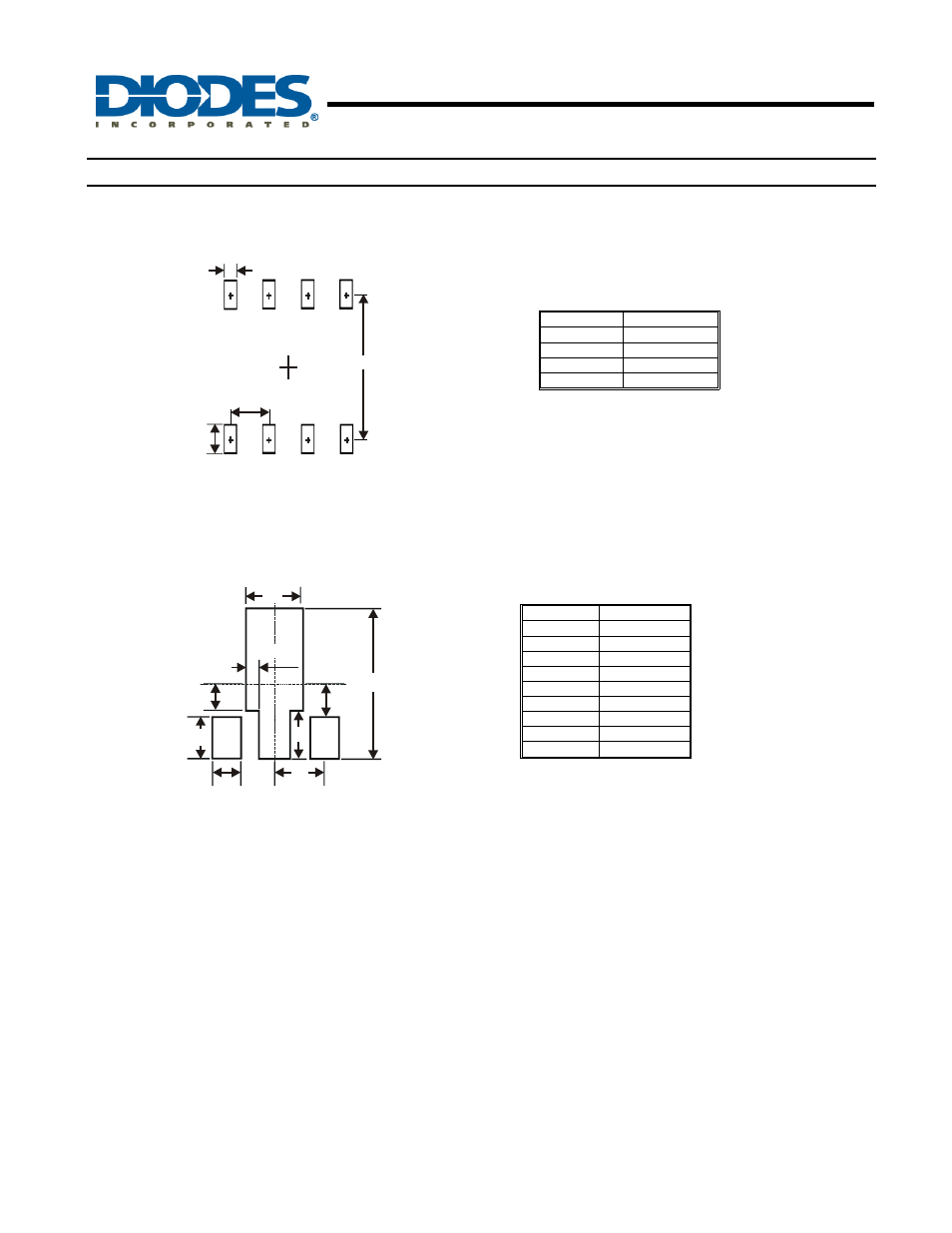

Suggested Pad Layout (All Dimensions in mm)
(1) Package Type: SO-8
(2) Package Type: SOT89
Dimensions Value (in mm)
X 0.60
Y 1.55
C1 5.4
C2 1.27
Dimensions Value (in mm)
X 0.900
X1 1.733
X2 0.416
Y 1.300
Y1 4.600
Y2 1.475
Y3 0.950
Y4 1.125
C 1.500
X
C1
C2
Y
Y1
X1
Y2 Y
C
X (3x)
Y3
Y4
X2 (2x)
