Diodes AP78L05/08/12 - Manual (Page 14)

AP78L05/08/12
AP78LXX SERIES 3-TERMINAL POSITIVE REGULATORS
AP78L05/08/12
Document number: DS31054 Rev. 10 - 2
14 of 16
www.diodes.com
March 2012
© Diodes Incorporated

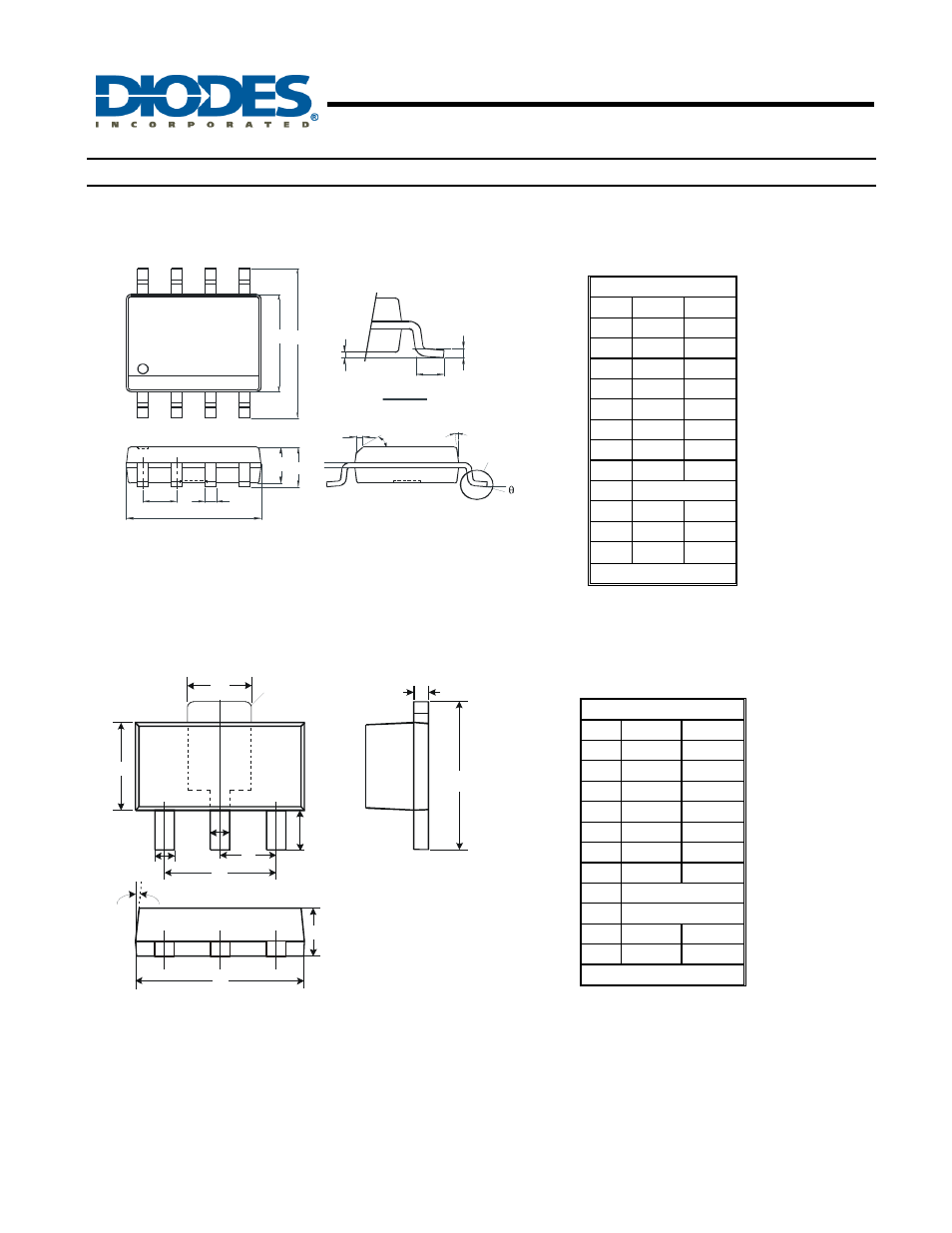

Package Outline Dimensions (cont.) (All Dimensions in mm)
(3) Package Type: SO-8
(4) Package Type: SOT89
SO-8
Dim Min Max
A - 1.75
A1 0.10 0.20
A2 1.30 1.50
A3 0.15 0.25
b 0.3 0.5
D 4.85 4.95
E 5.90 6.10
E1 3.85 3.95
e 1.27 Typ
h - 0.35
L 0.62 0.82
θ
0
°
8
°
All Dimensions in mm
SOT89
Dim Min Max
A 1.40 1.60
B 0.44 0.62
B1 0.35 0.54
C 0.35 0.43
D 4.40 4.60
D1 1.52 1.83
E 2.29 2.60
e 1.50 Typ
e1 3.00 Typ
H 3.94 4.25
L 0.89 1.20
All Dimensions in mm
e
D
H
L
A
C
E
8° (4
X)
B1
B
D1
R
0.
20
0
e1
Gauge Plane
Seating Plane
Detail ‘A’
Detail ‘A’
E E1
h
L
D
e b
A2
A1
A
45 °
7 °~ 9 °
A3
0.
25
4
