AP78L05/08/12
AP78LXX SERIES 3-TERMINAL POSITIVE REGULATORS
AP78L05/08/12
Document number: DS31054 Rev. 10 - 2
13 of 16
www.diodes.com
March 2012
© Diodes Incorporated

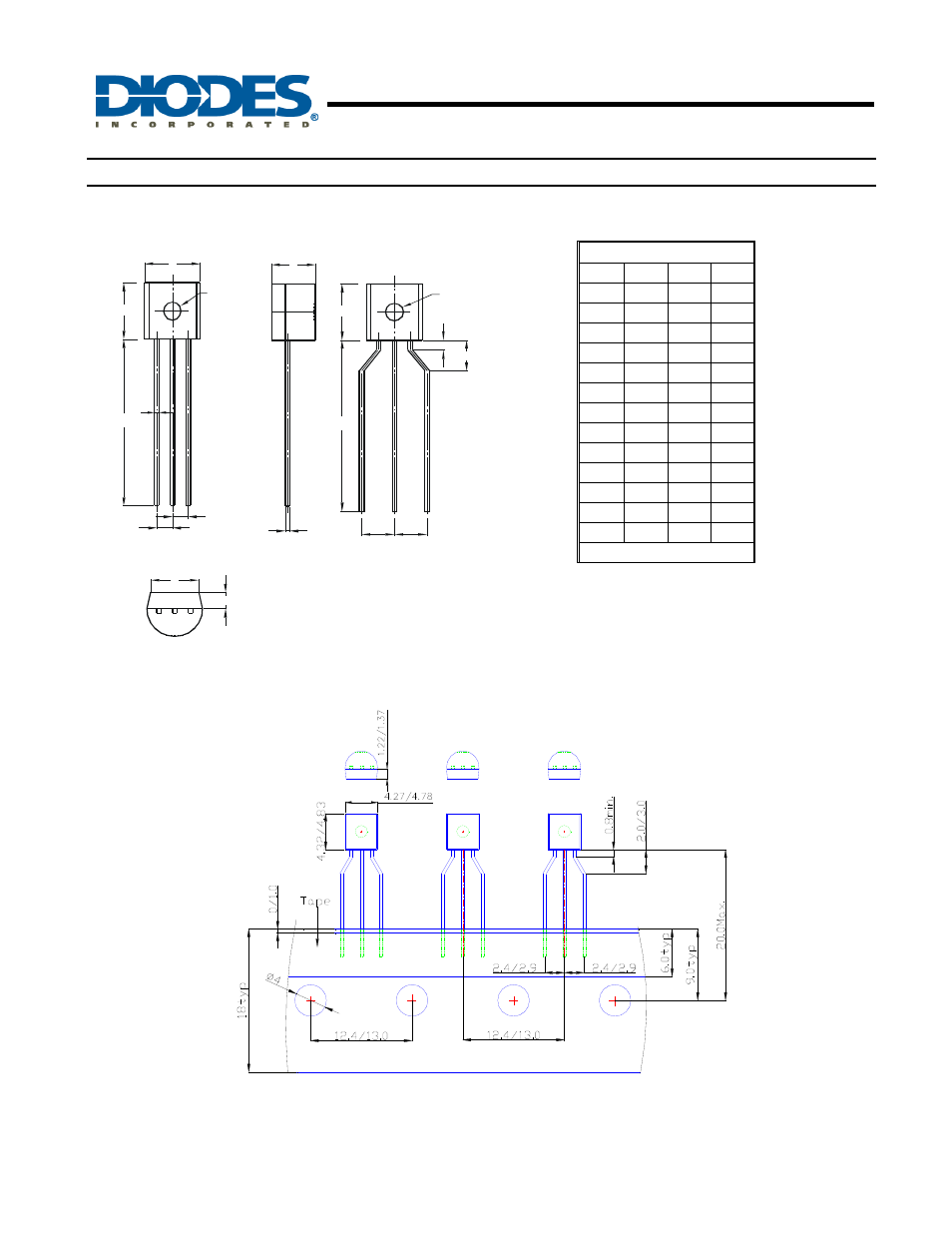

Package Outline Dimensions (All Dimensions in mm)
(1) Package Type: TO92
(2) TO92 for Ammo pack
TO92-3L
Dim Min Max Typ
A 3.45 3.66 -
B 4.27 4.78 -
b - - 0.38
c - - 0.38
D - - 3.87
E 4.32 4.83 
e - - 1.27
e2 2.40 2.90 -
L 12.98 15.00 -
L1 12.80 15.00 -
L2 0.80 - -
L3 2.00 3.00 -
N 1.22 1.37 -
All Dimensions in mm
EJECTION
MARK
LOOSE PRODUCT
TAPED PRODUCT
EJECTION
MARK
B
E
b
e
e
D
N
c
e2 e2
L1
E
L2
L3
A
