Preliminary Datasheet
Octave Remote Resistor-programmable Temperature Switches AP2602
Feb. 2012 Rev. 1. 0 BCD Semiconductor Manufacturing Limited
1
General Description
The AP2602 are fully integrated, resistor
programmable octave remote temperature switches
with selectable external/internal trigger voltages
setting. The thresholds are set by external resistors
and thermistors with negative temperature
coefficient.
The AP2602 provides 4 open-drain, active low,
over-temperature outputs for each 2 sensors. These
switches operate with a 2.7V to 5.5V single supply.
The AP2602 are available in 16-pin QFN-3X3-16
package.
Features
•
8 Remote Temperature Switches Set by
Thermistor and External Resistors
• 4 Open-drain Active Low Output Stages for
Each 2 Temperature Switches
• Selectable External/Internal Trigger Voltages
Setting
• Built-in Hysteresis Temperature when Using
Internal Setting Trigger Voltage
• Guaranteed Output Signal Valid to V
CC
=0.8V
• QFN-3X3-16 Package
Applications
• µP Temperature Monitoring High-speed
Computers
• Temperature Control
• Temperature Alarms
• Fan Control
• Automotives

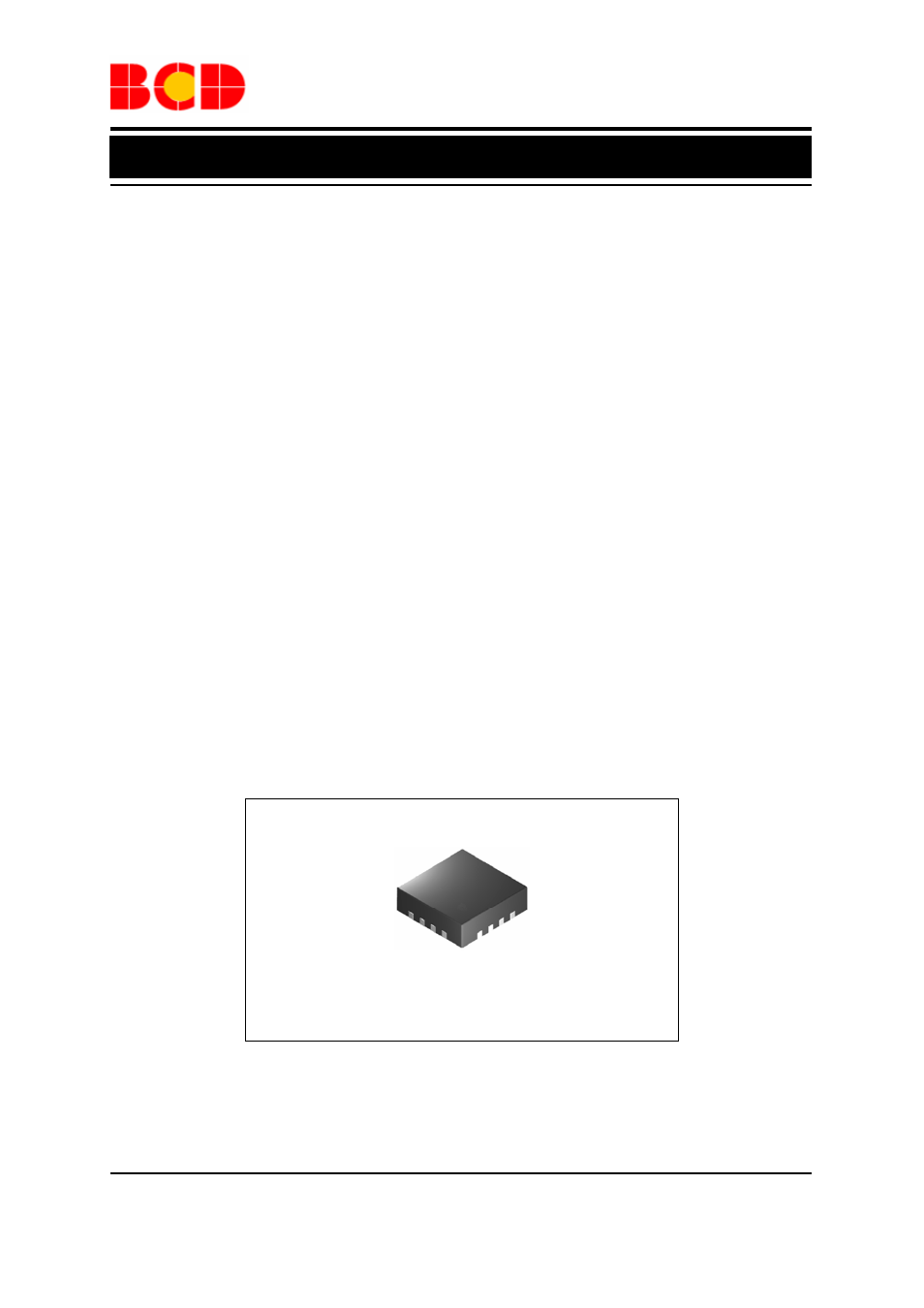

Figure 1. Package Type of AP2602
QFN-3X3-16
