AH1883
MICROPOWER, ULTRA-SENSITIVE HALL EFFECT SWITCH
AH1883
Document number: DS31296 Rev. 6 - 2
8 of 10
www.diodes.com
September 2011
© Diodes Incorporated

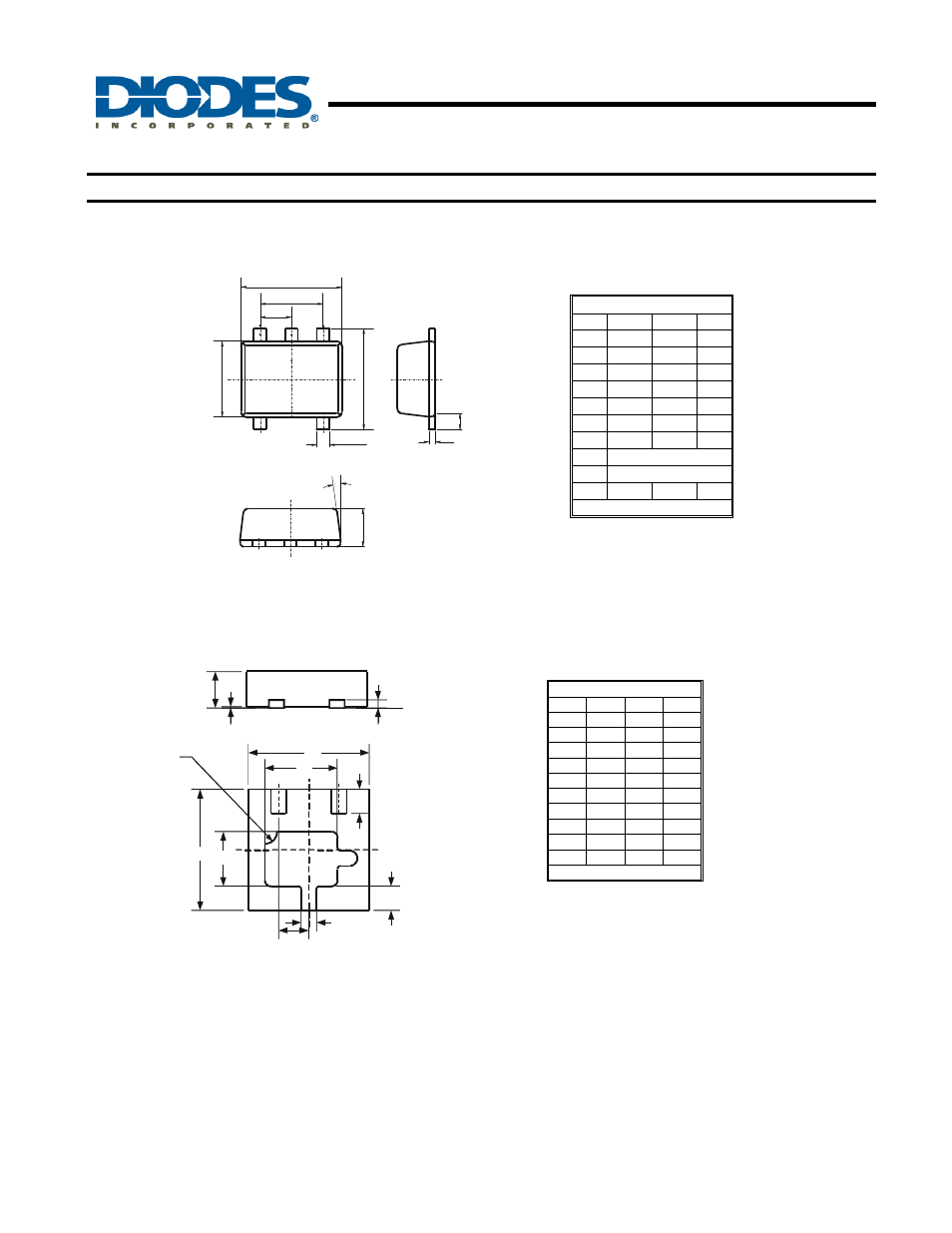

Package Outline Dimensions (All Dimensions in mm)
(1) Package Type: SOT553
(2) Package Type: U-DFN2020-3
SOT553
Dim Min Max Typ
A 0.55 0.60 0.60
c 0.10 0.18 0.15
D 1.50 1.70 1.60
E 1.55 1.70 1.60
E1 1.10 1.25 1.20
L 0.10 0.30 0.20
b 0.15 0.30 0.20
e 0.50 Typ
e1 1.00 Typ
a 6° 8° 7°
All Dimensions in mm
U-DFN2020-3
Dim Min Max Typ
A 0.57 0.63 0.60
A1 0 0.05 0.02
A3 ⎯ ⎯ 0.152
b 0.20 0.30 0.25
D 1.95 2.075 2.00
D2 1.10 1.30 1.20
e ⎯ ⎯ 0.50
E 1.95 2.075 2.00
E2 0.80 1.00 0.90
L 0.35 0.45 0.40
All Dimensions in mm
