AH1883
MICROPOWER, ULTRA-SENSITIVE HALL EFFECT SWITCH
AH1883
Document number: DS31296 Rev. 6 - 2
5 of 10
www.diodes.com
September 2011
© Diodes Incorporated

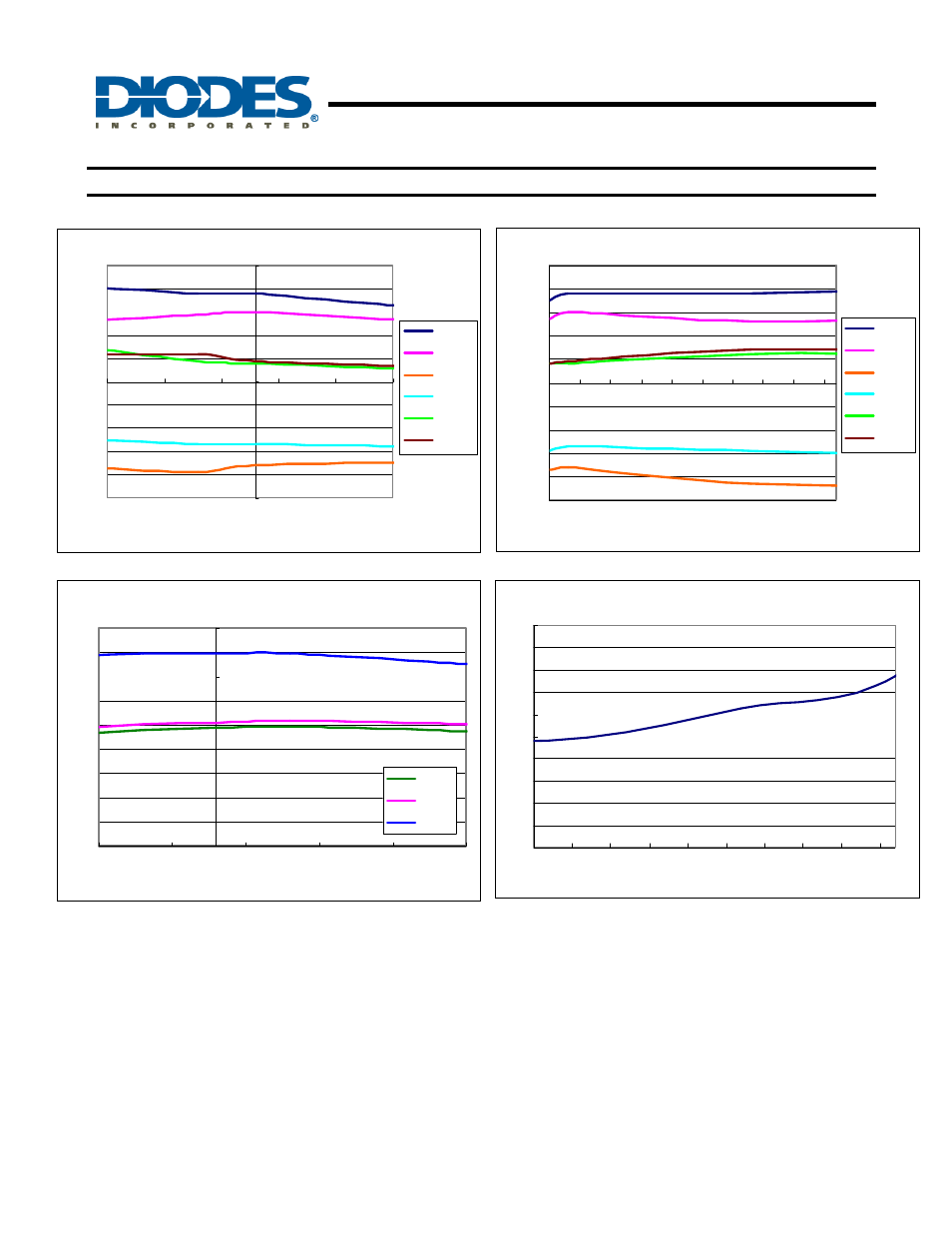

Typical Operating Characteristics
AH1883 Sw itch points vs. Tem perature (Vdd = 1.8V)
-50
-40
-30
-20
-10
0
10
20
30
40
50
-40 -15 10 35 60 85
Tem perature ( ℃)
Ga
u
s
s
(G)
Bops
Brps
Bopn
Brpn
Bhy_s
Bhy_n
AH1883 Sw itch points vs. Vdd (T
A
=25 ℃)
-50
-40
-30
-20
-10
0
10
20
30
40
50
1.65 1.9 2.15 2.4 2.65 2.9 3.15 3.4 3.65 3.9
Vdd(V)
Ga
u
s
s
(G)
Bops
Brps
Bopn
Brpn
Bhy_s
Bhy_n
AH1883 Idd(avg.) vs. Tem perature
0
1
2
3
4
5
6
7
8
9
-40 -15 10 35 60 85
Tem perature ( ℃)
Idd (avg.)
unit: μA
1.65V
1.8V
3.3V
AH1883 Idd(avg.) vs. Vdd (T
A
=25 ºC)
0
1
2
3
4
5
6
7
8
9
10
1.65 1.9 2.15 2.4 2.65 2.9 3.15 3.4 3.65 3.9
Vdd(V)
Idd (avg.)
unit: μA
