AH1804
MICROPOWER OMNIPOLAR HALL EFFECT SENSORSWITCH
AH1804
Document number: DS35314 Rev. 2 - 2
6 of 9
September 2011
© Diodes Incorporated
NEW PROD
UC
T

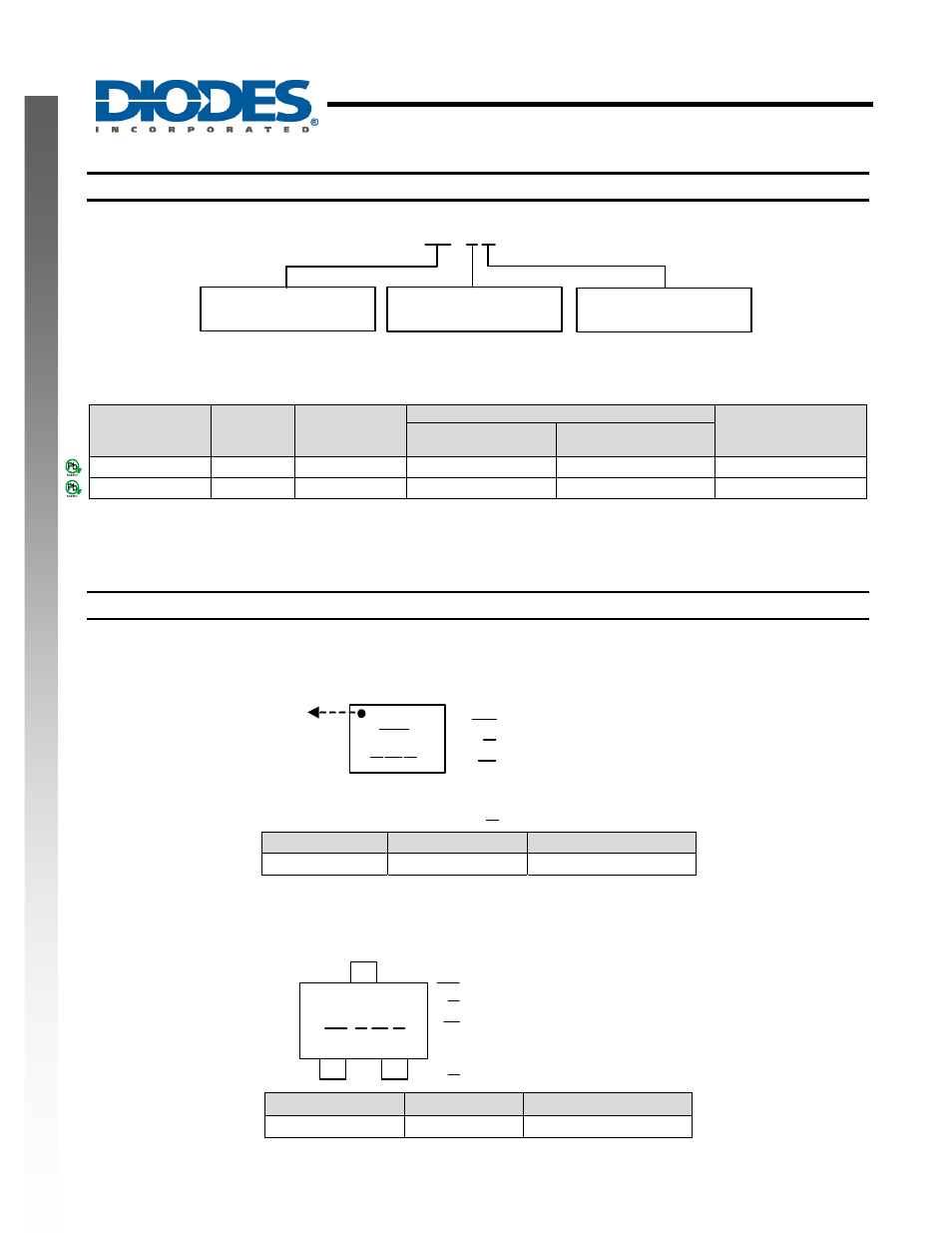

Ordering Information
AH1804 - XX - 7 X
Package
FA : DFN1216-4
7 : Tape & Reel
Magentic
Characteristics
- Blank : Option 1
(Note 7)
Packing
W : SC59
Device
(Note 8)
Package
Code
Packaging
(Note 9)
7” Tape and Reel
Magentic
Characteristics
(Note 7)
Quantity
Part Number Suffix
AH1804-FA-7
FA
DFN1216-4
3000/Tape & Reel
-7
-Blank
AH1804-W-7
W
SC59
3000/Tape & Reel
-7
-Blank
Notes:
7. Please refer the Magnetic Characteristics table.
8. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
9. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
Marking Information
(1) DFN1216-4
( Top View )
X X
Pin 1 indicator
Y : Year : 0~9
X : Internal code
XX : Identification Code
W : Week : A~Z : 1~26 week;
a~z : 27~52 week; z represents
52 and 53 week
YWX
Part Number
Package
Identification Code
AH1804-FA-7 DFN1216-4
KJ
(2) SC59 (commonly known as SOT23 in Asia)
XX Y W X
( Top View )
XX : Identification code
W : Week : A to Z : 1 to 26 week;
X : Internal code
Y : Year 0 to 9
a to z : 27 to 52 week; z represents
52 and 53 week
Part Number
Package
Identification Code
AH1804-W-7 SC59
WJ
