Ah1804 – Diodes AH1804 User Manual
Page 5
AH1804
MICROPOWER OMNIPOLAR HALL EFFECT SENSORSWITCH
AH1804
Document number: DS35314 Rev. 2 - 2
5 of 9
September 2011
© Diodes Incorporated
NEW PROD
UC
T

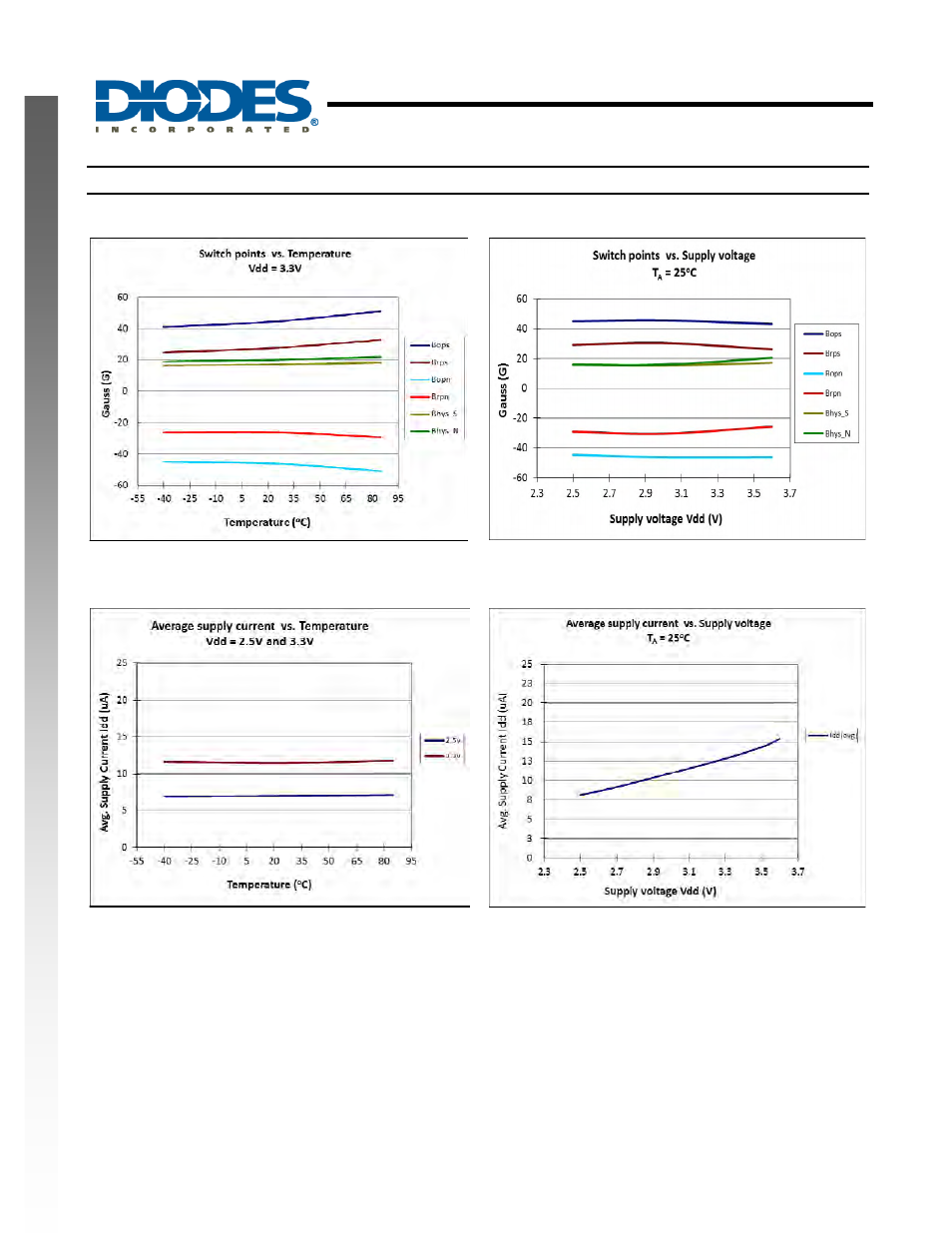

Typical Characteristics
Typical Switch Point Bop and Brp vs. Temperature
Typical Switch Points Bop and Brp vs. Supply Voltage
Average Supply Current vs. Temperature
Average Supply Current vs. Supply Voltage
