AH1889

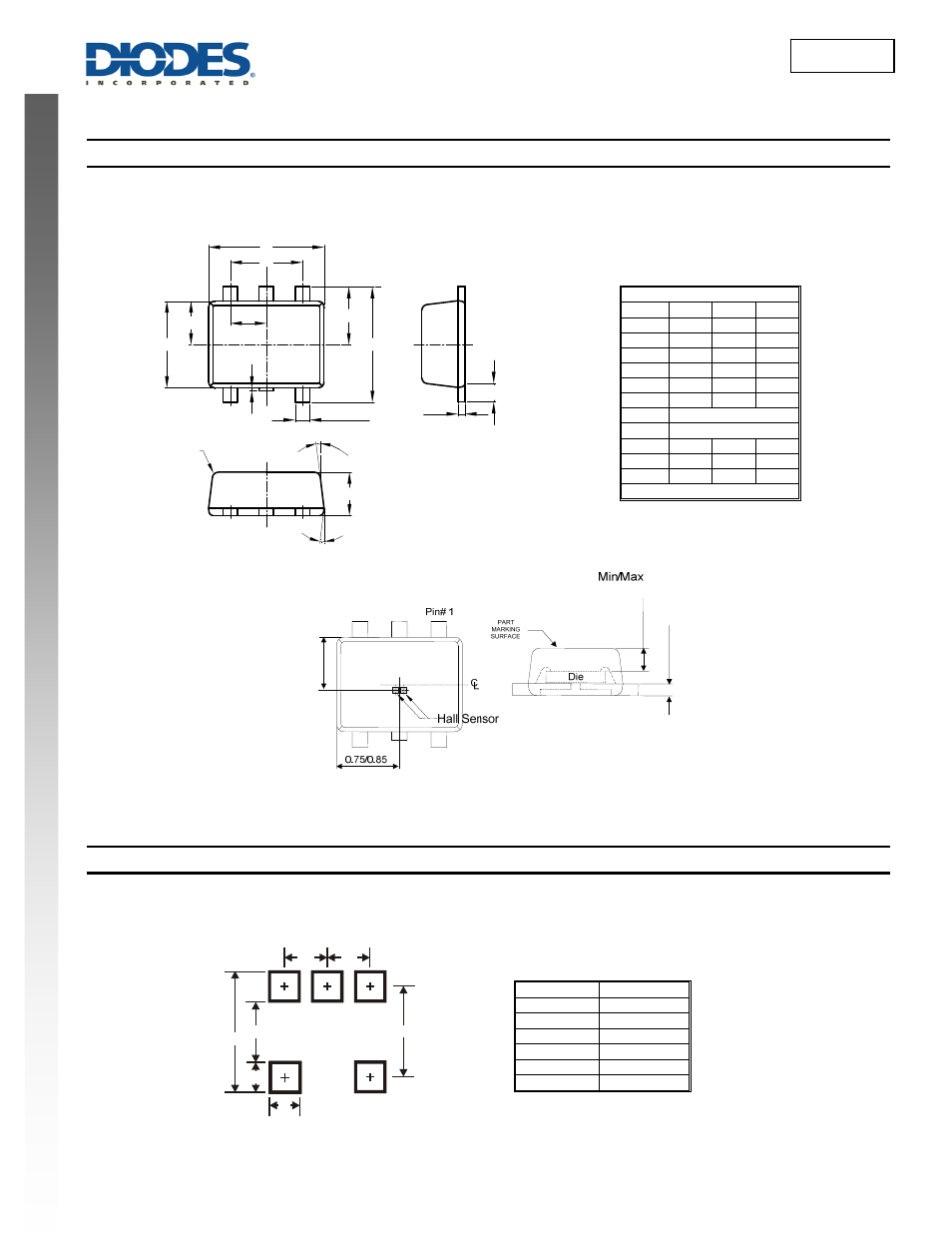

Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
(1) Package Type: SOT553
0.55/0.70
0.10/0
.1
8
0.23
/0.37
Sensor Location
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
(1) Package Type: SOT553
SOT553
Dim Min Max Typ
A 0.55 0.62 0.60
b 0.15 0.30 0.20
c 0.10 0.18 0.15
D 1.50 1.70 1.60
E 1.55 1.70 1.60
E1 1.10 1.25 1.20
e 0.50 BSC
e1 1.00 BSC
F 0.00 0.10 ––
L 0.10 0.30 0.20
a 6° 8° 7°
All Dimensions in mm
Dimensions Value (in mm)
Z 2.2
G 1.2
X 0.375
Y 0.5
C1 1.7
C2 0.5
E1/2
E1
D
TYP.
R0.1 MAX.
a
A
E/2
E
b (5x)
e
e1
L (5x)
c
F
7°
TYP.
X
Z
Y
C1
C2 C2
G
