AH1889

Document number: DS36256 Rev. 1 - 2

3 of 7

www.diodes.com

April 2013

© Diodes Incorporated

NEW PROD

UC

T

AH1889



Recommended Operating Conditions

(@T

A

= +25°C, unless otherwise specified.)

Symbol Characteristic

Conditions

Rating

Unit

V

DD

Supply Voltage

Operating

1.65 to 3.6

V

T

A

Operating Temperature Range

Operating

-40 to +85

°C



Electrical Characteristics

(Note 8)

(@T

A

= +25°C, V

DD

= 1.8V, unless otherwise specified.)

Symbol Characteristic

Conditions

Min

Typ

Max

Unit

V

OH

OUTPUT1 and OUTPUT2 High Voltage (off)

I

OUT

= -0.5mA

V

DD

-0.2

— — V

V

OL

OUTPUT1 and OUTPUT2 Low Voltage (on) I

OUT

= 0.5mA

— 0.1 0.2 V

I

DD

Supply Current

V

DD

= 1.8V Outputs Off

— 2.1 — mA

V

DD

= 3.6V Outputs Off

— 5 —

mA

Note:

8. When power is initially turned on, the operating V

DD

(1.65V to 3.6V) must be applied to guaranteed the output.


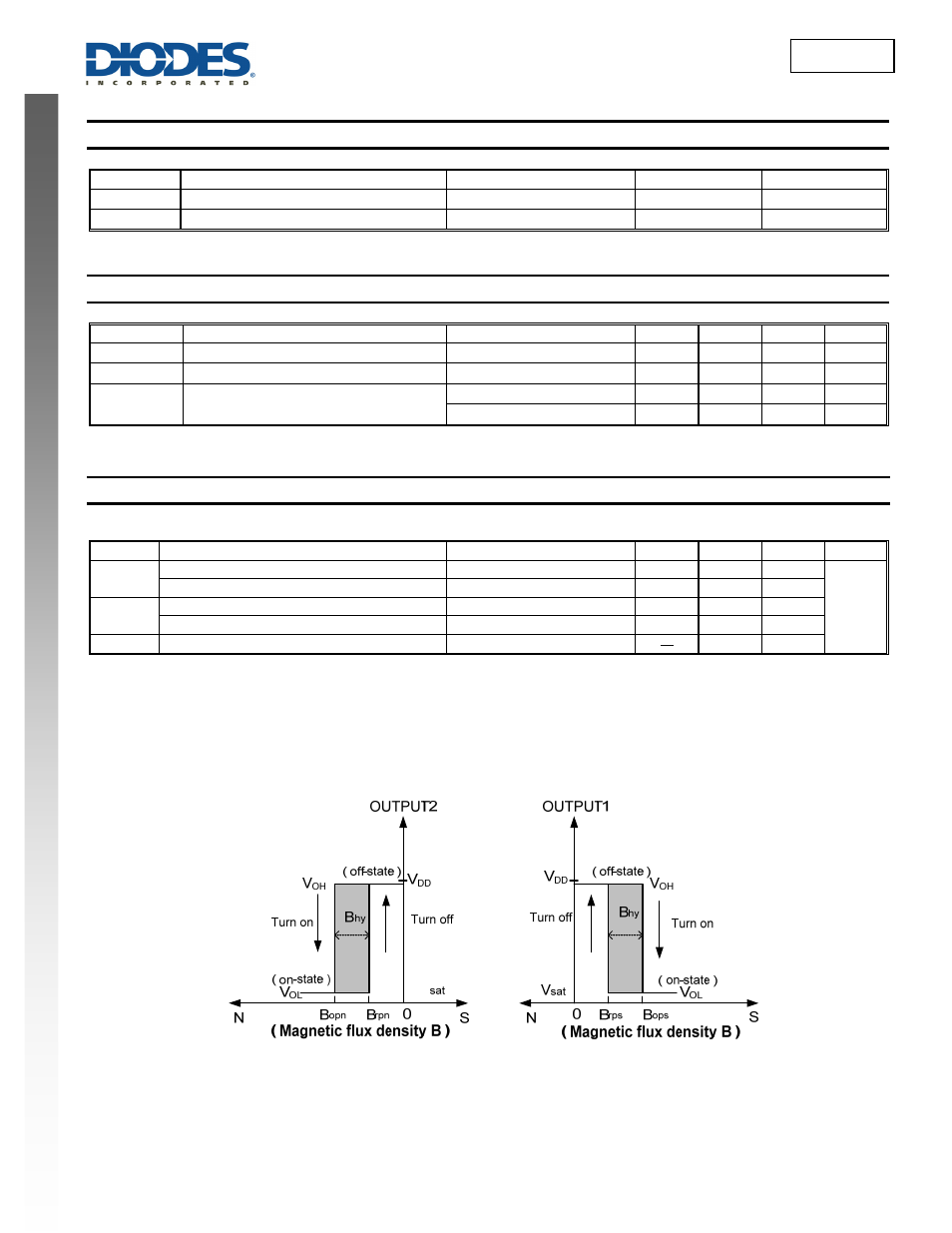

Magnetic Characteristics

(Note 9, 10, 11) (@T

A

= +25°C, V

DD

= 1.8V, unless otherwise specified.)

(1mT=10 Gauss)

Output Symbol

Characteristic

Min

Typ

Max

Unit

OUTPUT1

Bops (South pole to part marking side)

Operation Point

— 35 50

Gauss

Brps (South pole to part marking side)

Release point

6 20 —

OUTPUT2

Bopn (North pole to part marking side)

Operation Point

-50 -35 —

Brpn (North pole to part marking side)

Release point

— -20 -6

Bhy

(|Bopx|-|Brpx|)

Hysteresis

— 8 —

Notes:

9. Typical data is at T

A

= +25°C, V

DD

= 3V, and for design information only.

10. Bops and Brps for OUTPUT1 pin responds to South pole only; Bopn and Brpn for OUTPUT2 pin responds to North pole only.
11. Magnetic characteristics may vary with operating temperature and after soldering.





(

O

ut

p

u

t

V

ol

ta

g

e

)

(

O

ut

p

u

t

V

ol

ta

g

e

)
