AH3761
HIGH SENSITIVITY HALL EFFECT LATCH
AH3761 Rev. 1 4 of 9 SEPTEMBER 2009
www.diodes.com © Diodes Incorporated
Electrical Characteristics
(T
A
=+ 25
°C, Vdd =24V, Note 7)
Symbol Characteristic Test Conditions Min Typ. Max Unit
Vo(sat) Output Saturation Voltage Iout =20mA, B>Bop - 300 500 mV
Ioff Output Leakage Current V
O
=24V, B - < 0.1 10 uA
Idd Supply Current Output Open - 4 6 mA
t
r
Output Rising Time R
L
=10K Ω, C
L
=16pF - 340 - ns
t
f
Output Falling Time R
L
=10K Ω, C
L
=16pF - 20 - ns
f
c
Chopping Frequency - 300 - KHz
I
OM
Output Current Limit B>Bop (Note 5) 50 70 90 mA
t
ST
Start-up time of IC Vdd>3V, B>Bop (Note 6) - 47 - us
Notes: 5. The device will shut down operating after the output current I O is over the output current limit I OM for 160us (typically). The device will re-start
up operating after resetting the supply voltage Vdd.
6. I n initial power on time, the output state is kept in “High” in this start-up time of IC.
7. Typical data is at T A =+25 °C, Vdd=24V and is design information only.
Magnetic Characteristics
(T
A
=+ 25
°C, Vdd =3V to 28V, Note 8)
(1mT=10Gauss)
Symbol Parameter Min Typ. Max Unit
Bop Operate Point 5 30 60 Gauss
Brp Release Point -60 -30 -5 Gauss
Bhys Hysteresis - 60 - Gauss
Notes: 8. Magnetic characteristics are for design information, which will vary with supply voltage, operating temperature and after soldering.

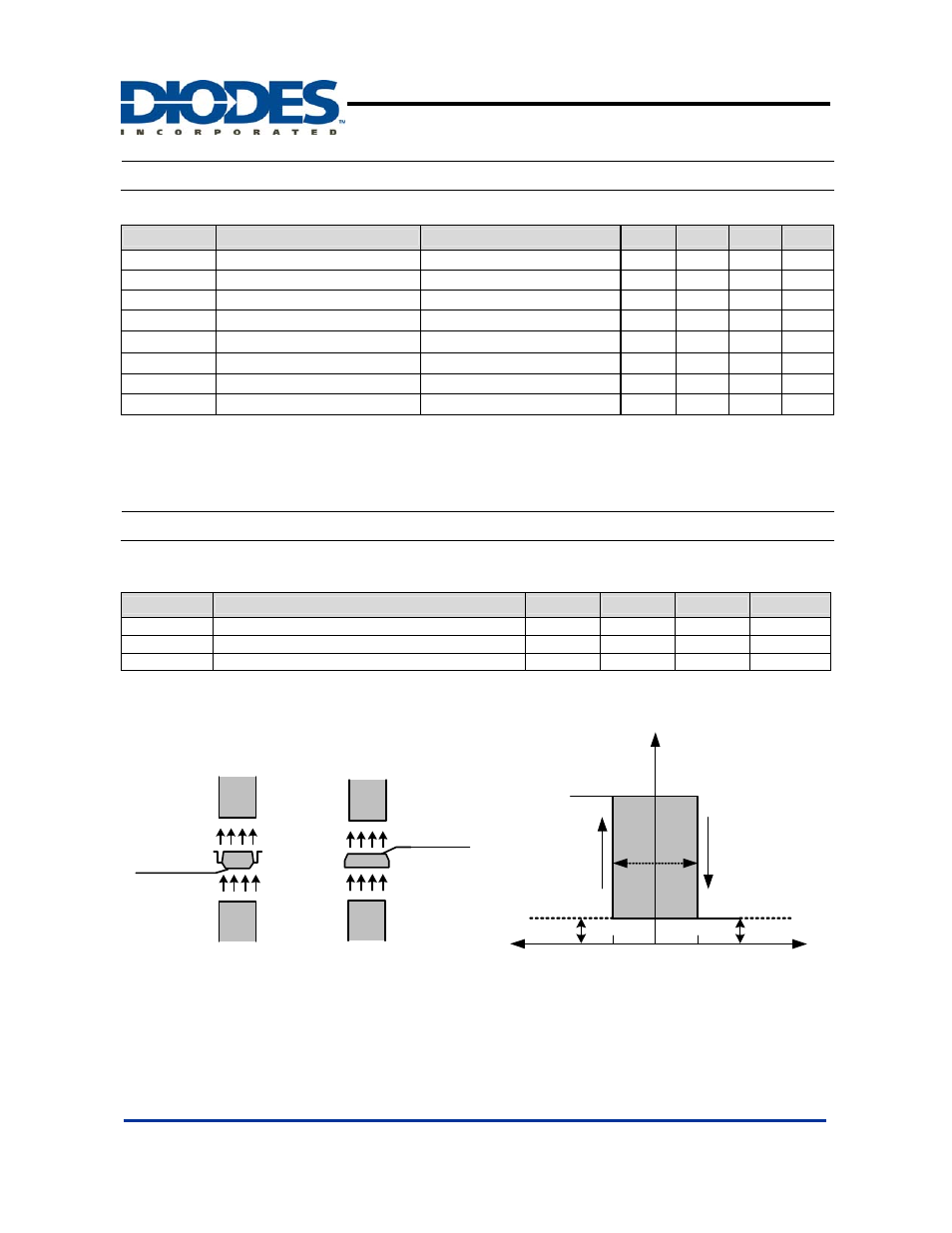

Marking side
S
(SIP3)
N
Marking side
S
(SC59)
N
V
dd
(Out
put
V
o
lt
a
g
e)
Brp Bop 0
(Magnetic Flux Density B)
Output
Turn off Turn on
(off-state)
(on-state)
V
SAT V
SAT
Bhy
