2-PHASE HALF-WAVE HIGH VOLTAGE MOTOR PRE-DRIVER AM4406/4406F
Data Sheet
2
Nov. 2009 Rev. 1. 5 BCD Semiconductor Manufacturing Limited
1
2
3
4
8
7
6
5

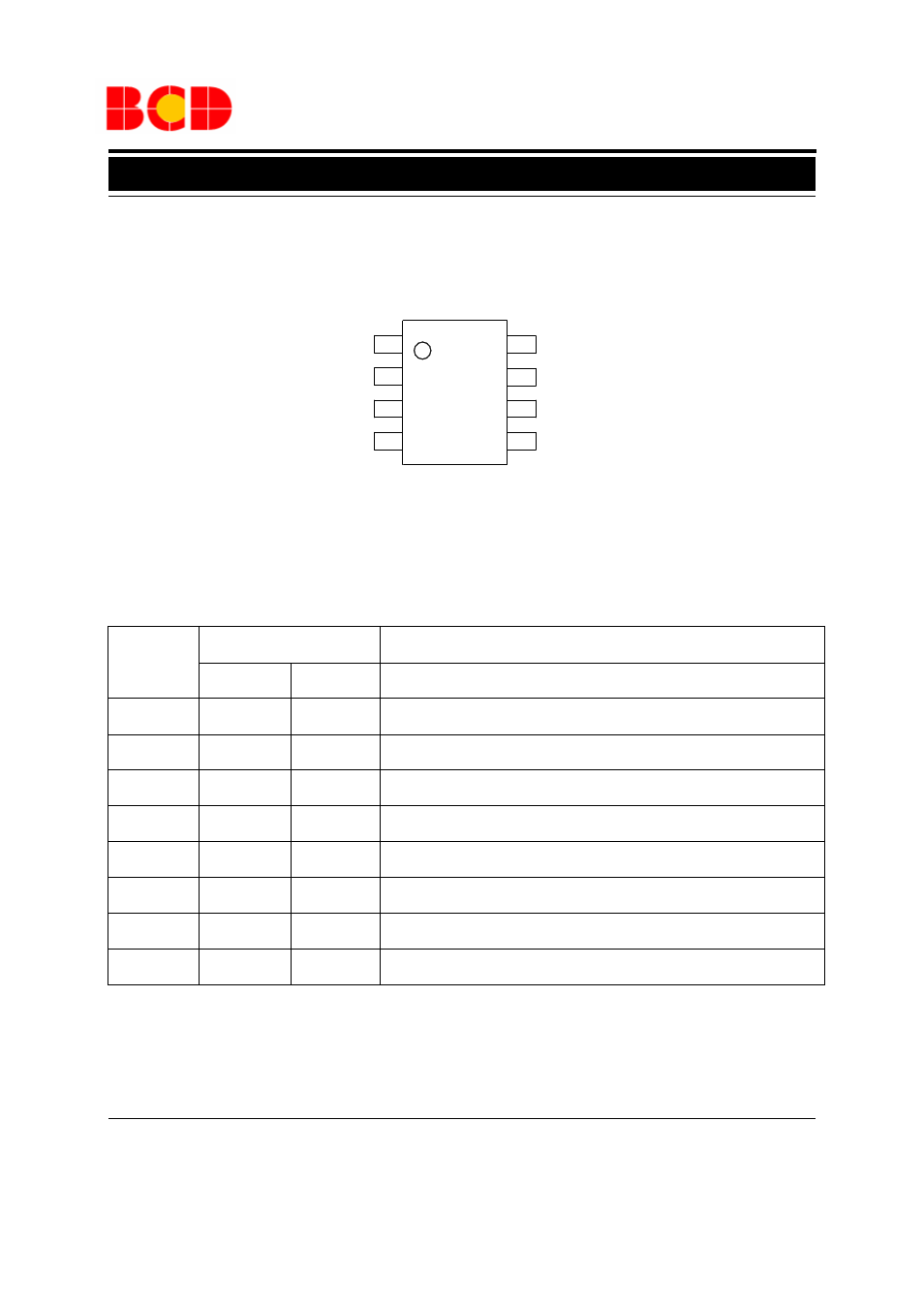

Figure 2. Pin Configuration of AM4406/4406F (Top View)
Pin Description
Pin Number
Pin Name Function
AM4406 AM4406F
1 VCC VCC Power supply
2 HS (+) HS (+) Hall input (+)
3 RD FG Rotation detection/Frequency generation
4 HS (-) HS (-) Hall input (-)
5 GND GND Ground
6 CT CT Timing capacitor
7 OUT2 OUT2 Driver output 2
8 OUT1 OUT1 Driver output 1
M Package
(SOIC-8)
Pin Configuration
VCC
RD/FG
HS (+)
HS (-)
OUT1
OUT2
CT
GND
