AH266
Document number: DS30876 Rev. 5 - 2
5 of 7
www.diodes.com
December 2013
© Diodes Incorporated
AH266

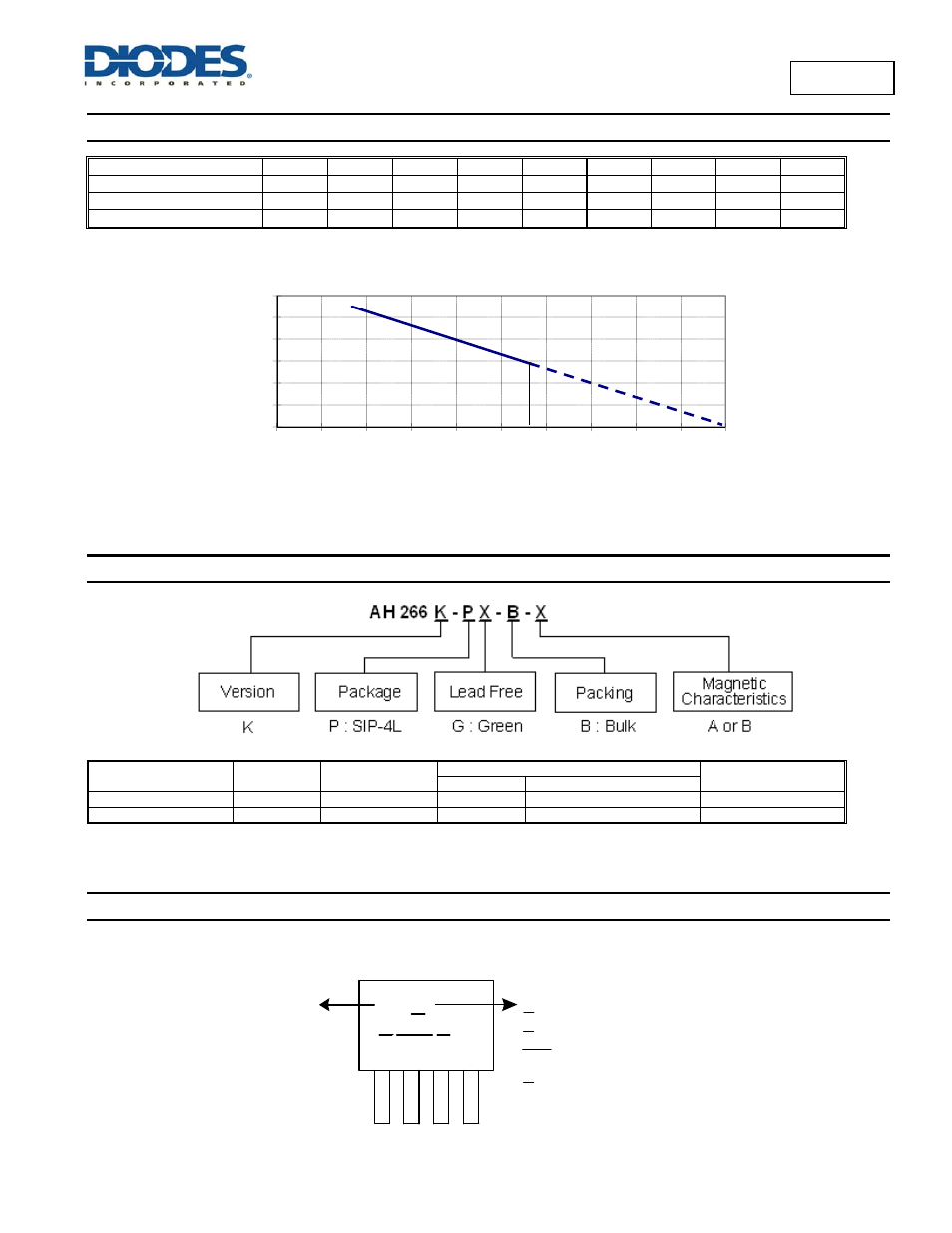

Performance Characteristics
T A (
C) 25 50 60 70 80 85 90 95 100
P
D
(mW) 550 440 396 352 308 286 264 242 220
T
A
( C) 105 110 115 120 125 130 135 140 150
P
D
(mW) 198 176 154 132 110 88 66 44 0
Ordering Information
Device
Package
Code
Packaging
(Note 8)
Bulk Magnetic
Characteristics Quantity Part Number Suffix
AH266K-PG-B-A P SIP-4 1000 -B A
AH266K-PG-B-B P SIP-4 1000 -B B
Note: 8. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
266X
Part Number
( Top View )
Y WW X
X : Version : K
SIP-4L
X : Internal Code : a~z : Lead Free
Y : Year : 0~9
WW : Week : 01~52, " 52" represents
52 and 53 week
A~Z : Green
0
100
200
300
400
500
600
0 15 30 45 60 75 90 105 120 135 150
P
D
(mW)
T
A
(°C)
Power Dissipation Curve
85
