Diodes AP8802H - Manual (Page 13)

AP8802H
60V 1A LED STEP-DOWN CONVERTER
AP8802H
Document number: DS32227 Rev. 6 - 2
13 of 14
www.diodes.com
May 2012
© Diodes Incorporated
PRELIMINARY
NEW PROD
UC
T

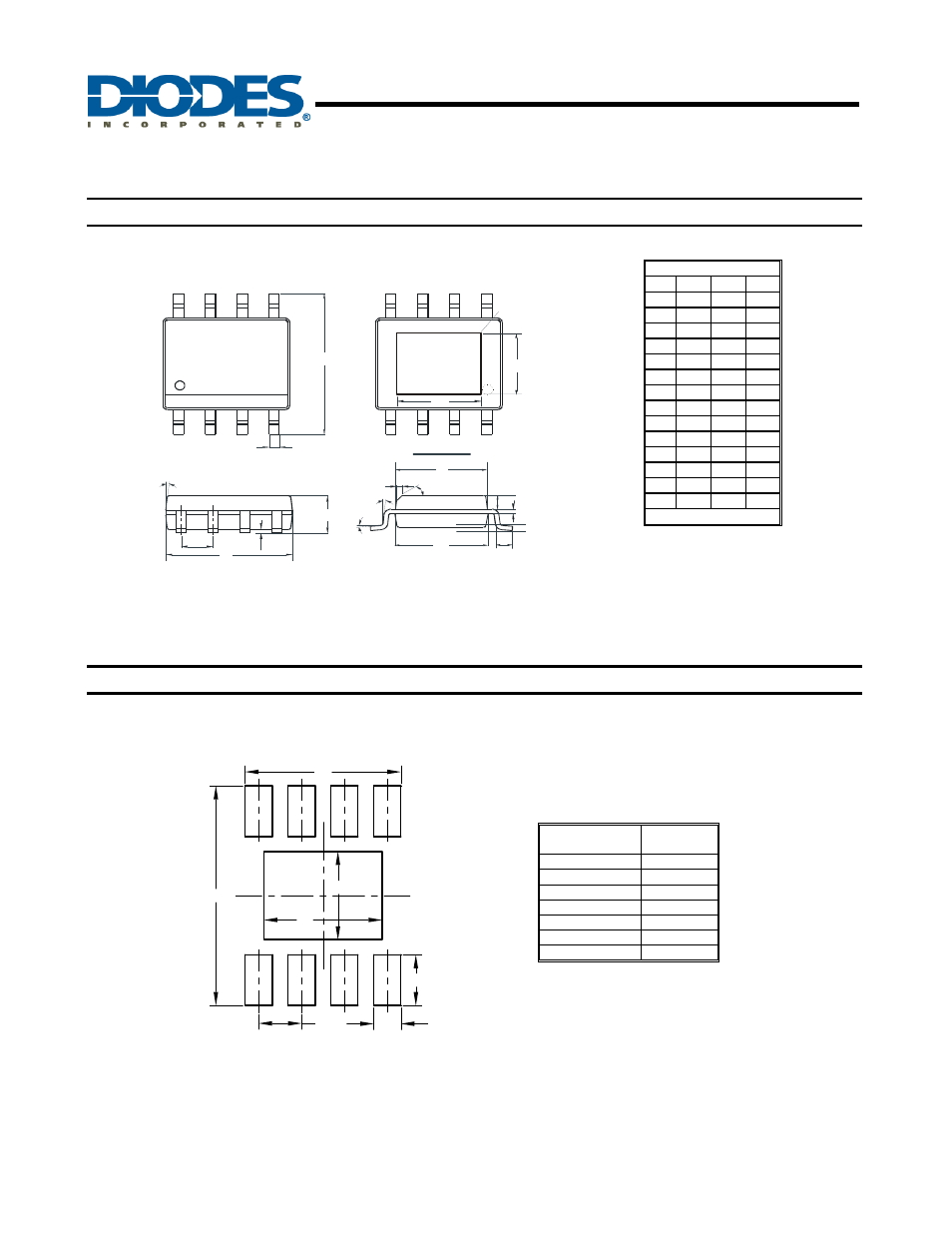

Package Outline Dimensions (All Dimensions in mm)
SO-8EP
Suggested Pad Layout
SO-8EP
SO-8EP (SOP-8L-EP)
Dim Min Max Typ
A 1.40 1.50 1.45
A1 0.00 0.13 -
b 0.30 0.50 0.40
C 0.15 0.25 0.20
D 4.85 4.95 4.90
E 3.80 3.90 3.85
E0 3.85 3.95 3.90
E1 5.90 6.10 6.00
e - - 1.27
F 2.75 3.35 3.05
H 2.11 2.71 2.41
L 0.62 0.82 0.72
N - - 0.35
Q 0.60 0.70 0.65
All Dimensions in mm
Dimensions
Value
(in mm)
C 1.270
X 0.802
X1 3.502
X2 4.612
Y 1.505
Y1 2.613
Y2 6.500
Gauge Plane
Seating Plane
E1
E
N
e
b
A
45 °
E0
H
F
Exposed Pad
Bottom View
L
Q
C
7 °
4° ± 3°
9° (All sides)
A1
D
1 4
8 5
C
Y 1
X 1
X
Y
Y 2
X 2
