AL8811
Document number: DS36090 Rev. 2 - 2
10 of 11
www.diodes.com
June 2013
© Diodes Incorporated
AL8811

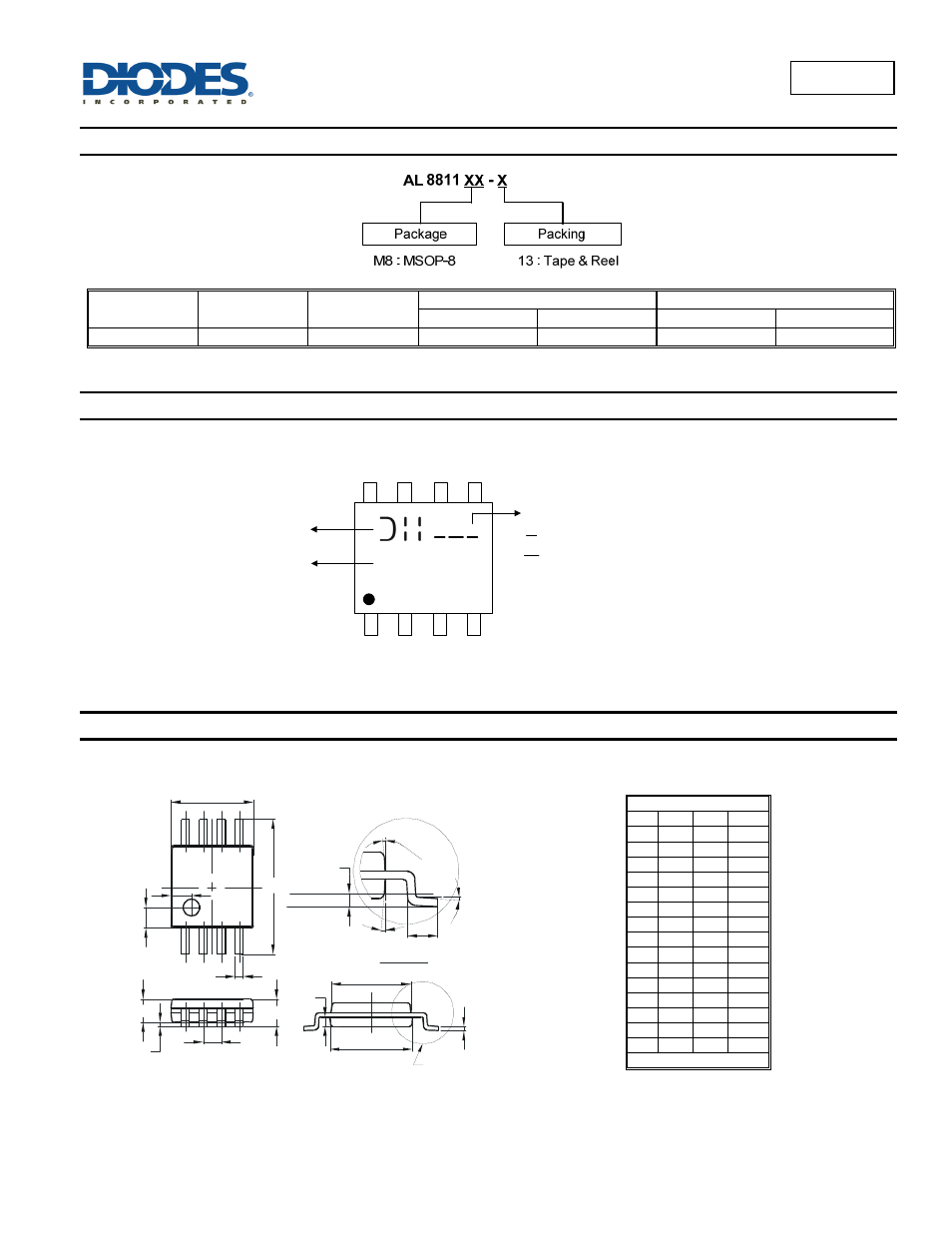

Ordering Information
Part Number Package Code Packaging
Tube 13” Tape and Reel
Quantity Part Number Suffix Quantity Part Number Suffix
AL8811M8-13 M8 MSOP-8 NA NA 2500/Tape & Reel -13
Marking Information
(1) MSOP-8
AL8811
( Top View )
Y W X
Part Number
Logo Y : Year : 0~9
Internal Code
8 7 6 5
1 2 3 4
a~z : 27~52 week; z represents
W : Week : A~Z : 1~26 week;
52 and 53 week
Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
MSOP-8
Dim Min Max Typ
A - 1.10 -
A1 0.05 0.15 0.10
A2 0.75 0.95 0.86
A3 0.29 0.49 0.39
b 0.22 0.38 0.30
c
0.08 0.23 0.15
D 2.90 3.10 3.00
E 4.70 5.10 4.90
E1 2.90 3.10 3.00
E3 2.85 3.05 2.95
e - - 0.65
L 0.40 0.80 0.60
a
0° 8° 4°
x - - 0.750
y - - 0.750
All Dimensions in mm
A
A1
A2
e
Seating Plane
Gauge Plane
L
See Detail C
Detail C
c
a
E1
E3
A3
1
E
y
x
D
b
0.25
4x10°
4x1
0°
