AL8811
Document number: DS36090 Rev. 2 - 2
1 of 11
June 2013
© Diodes Incorporated
AL8811
Boost/Buck/Inverting DC-DC CONVERTER
Description
The AL8811 is a monolithic control circuit containing the primary
functions required for DC-to-DC converters. These devices consist of
an internal temperature compensated reference, comparator,
controlled duty cycle oscillator with an active current limit circuit, driver
and high current output switch. This series is specifically designed for
incorporating in Boost, Buck and voltage-inverting applications with a
minimum number of external components.
Features
Operation from 3.0V to 20V Input
Low Standby Current
Current
Limiting
Output Switch Current to 1.6A
Output Voltage Adjustable
Frequency Operation to 100 kHz
Precision 2% Reference
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

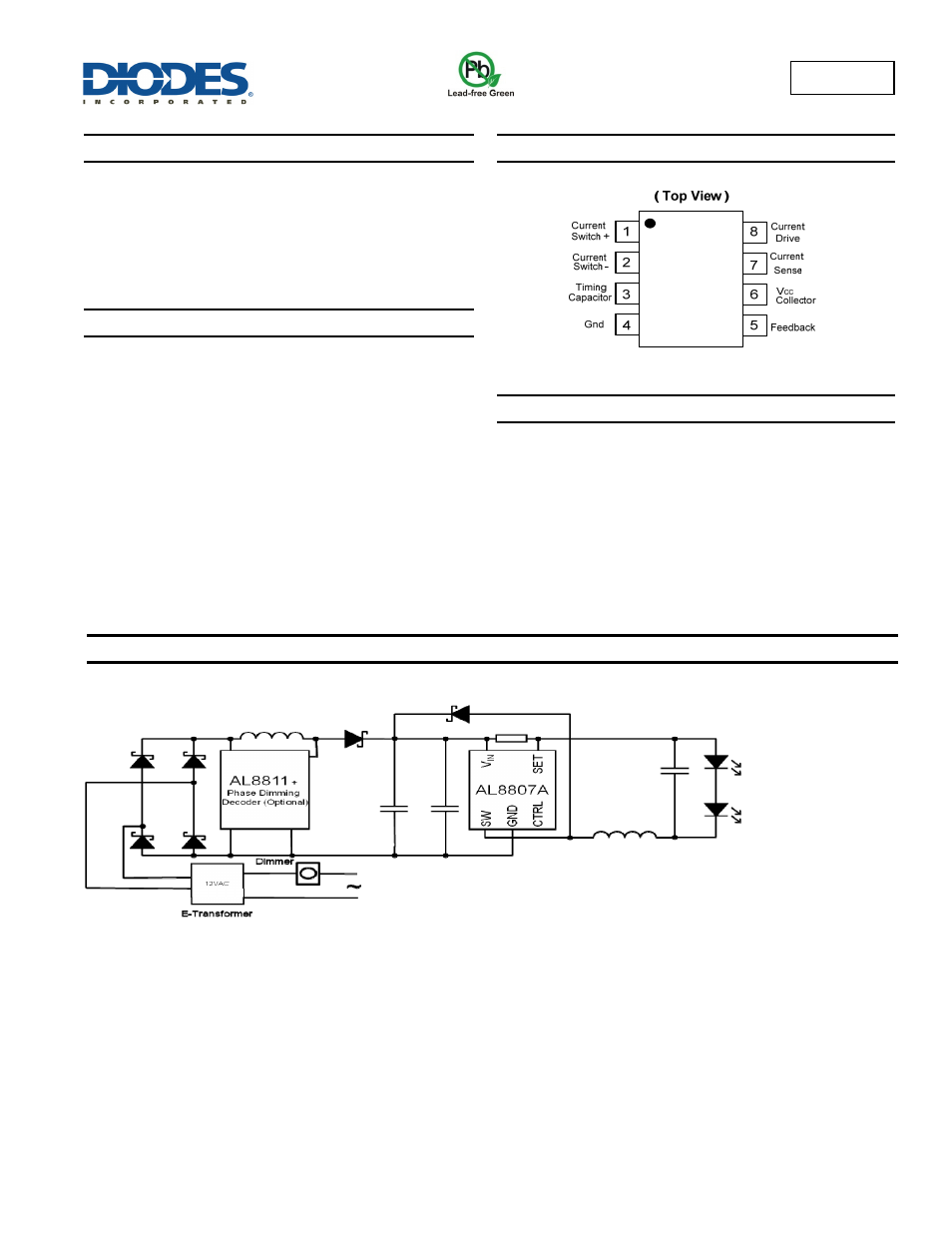

Pin Assignments
MSOP-8
Applications
Low Voltage LED Lighting such as MR-16
General Purpose DC-DC Converter
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Typical Application Diagram
Electronic Transformer compatible MR16 lamp Simplified Schematic
