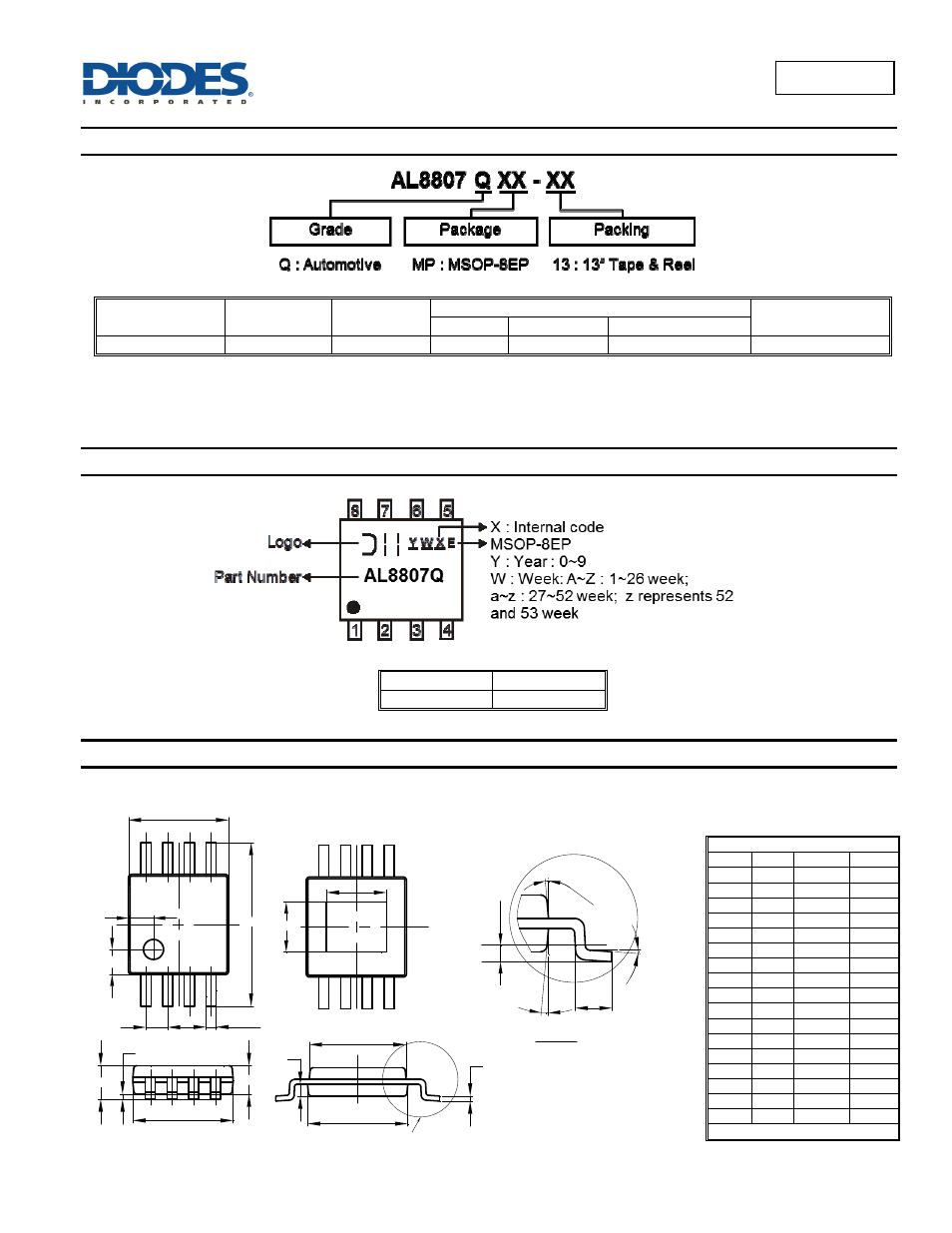

Ordering Information
Part Number Package Code
Packaging
(Note 9)
Packing: 13” Tape and Reel Qualification Grade
(Note 10)
Quantity Tape Width Part Number Suffix
AL8807QMP-13 MP MSOP-8EP 2500 12mm -13 Automotive Grade
Note: 9. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf
10. AL8807Q has been qualified to AEC-Q100 grade 1 and is classified as “Automotive Grade” which supports PPAP documentation.
See AL8807 datasheet for commercial qualified versions.
Marking Information
(1) MSOP-8EP
Part Number Package
AL8807QMP-13 MSOP-8EP
Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
MSOP-8EP
Dim Min Max Typ
A - 1.10 -
A1 0.05 0.15 0.10
A2 0.75 0.95 0.86
A3 0.29 0.49 0.39
b 0.22 0.38 0.30
c 0.08 0.23 0.15
D 2.90 3.10 3.00
D1 1.60 2.00 1.80
E 4.70 5.10 4.90
E1 2.90 3.10 3.00
E2 1.30 1.70 1.50
E3 2.85 3.05 2.95
e - - 0.65
L 0.40 0.80 0.60
a 0° 8° 4°
x - - 0.750
y - - 0.750
All Dimensions in mm
1
D
A
A 1
A 2
E
e
y
x
S e a t i n g P l a n e
G a u g e P l a n e
0
.
2
5
L
4X10
°
4X
10°
D
8 X b
S e e D e t a i l C
D e t a i l C
c
a
E 1
E 3
A 3
D 1
E 2
