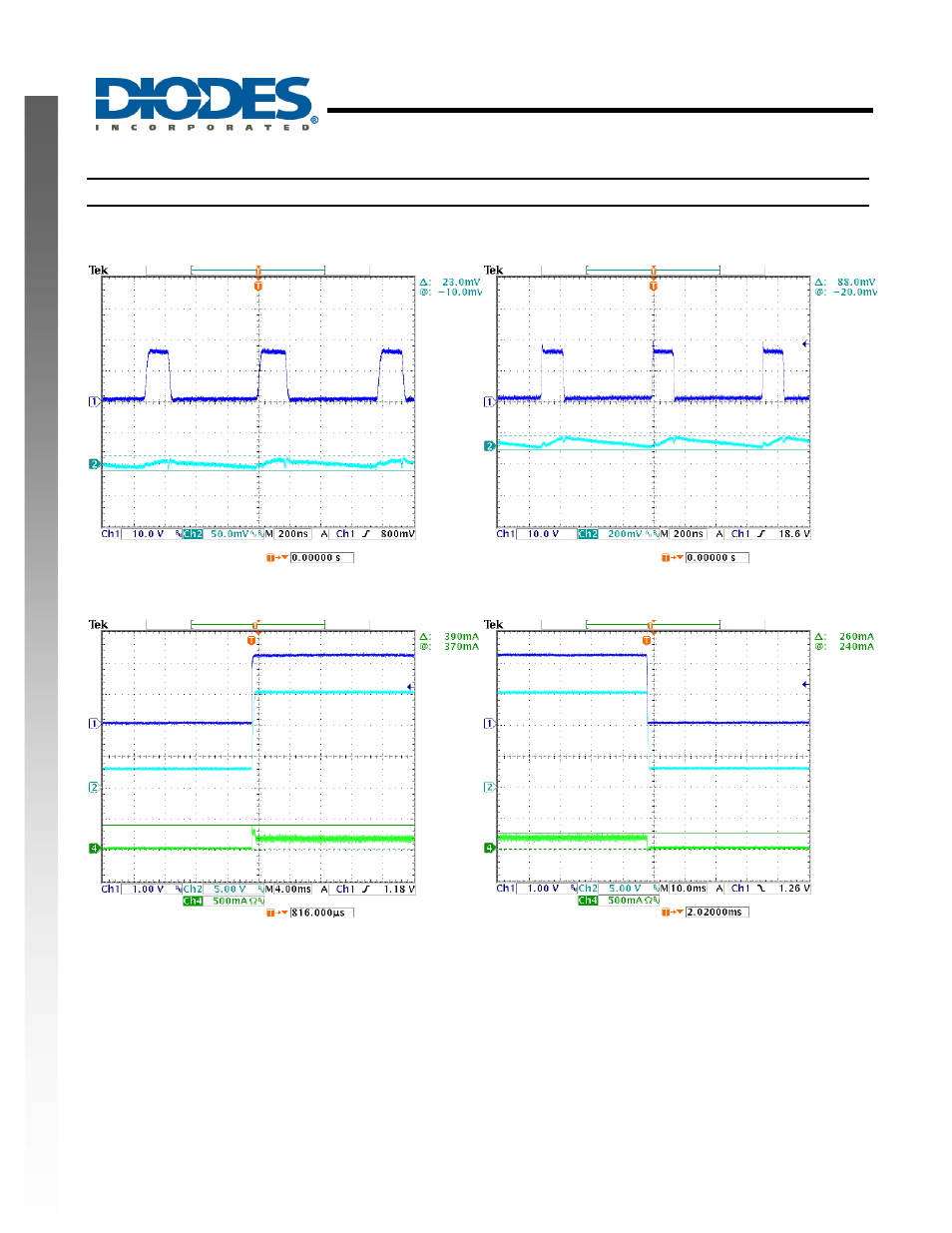

Typical Performance Characteristics (Continued)
V
OUT
Ripple
V
IN
= 3.3V; VOUT = 15V ; IOUT = 5mA
V
OUT
Ripple
V
IN
= 3.3V; VOUT = 15V ; IOUT = 50mA
POWER ON
V
IN
= 3.3V; VOUT = 15V ; IOUT = 50mA
POWER OFF
V
IN
= 3.3V; VOUT = 15V ; IOUT = 50mA
SW
N
V
EN
V
OUT
I
L
V
OUT
SW
V
OUT
V
EN
V
OUT
I
L
