AZ1117C
Document number: DS36676 Rev.
2 - 2
3 of 21
January 2014
© Diodes Incorporated
AZ1117C
A Product Line of
Diodes Incorporated

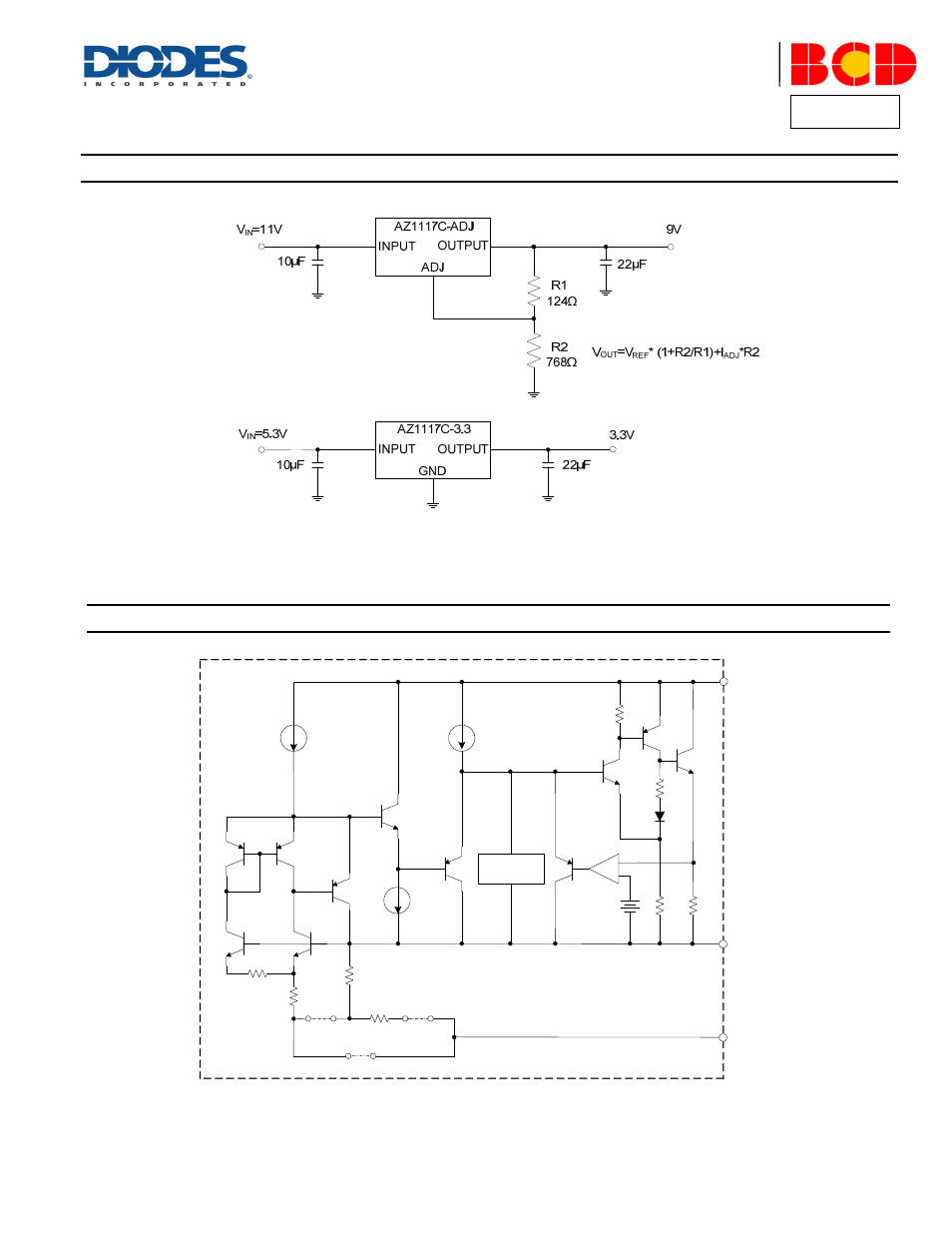

Typical Applications Circuit
(Note 4)
Note:
4. The AZ1117C is compatible with low ESR ceramic capacitor.
The ESR of the output capacitors must be less than 20Ω.
A minimum of 10µF output capacitor is required.
Functional Block Diagram
A(B){C}
A for TO2522 (3)/TO2522 (4)/ TO2522 (5)/SOT223 (H)/SOT89-3L (R)
B for SOT89-3L (R2)
C for SOT223 (H2)
Thermal
Protection
+
-
For Adjustable Output, disconnect A1 and A2, connect B
INPUT
OUTPUT
ADJ/GND
A1
A2
B
For Fixed Output, connect A1 and A2, disconnect B
3(2){1}
2(3){3}
1(1){2}
