Data Sheet
600mA CMOS LDO REGULATOR WITH ENABLE AP2112
Mar. 2013 Rev. 2. 0 BCD Semiconductor Manufacturing Limited
1
General Description
The AP2112 is CMOS process low dropout linear
regulator with enable function, the regulator delivers
a guaranteed 600mA (min.) continuous load current.
The AP2112 provides 1.2V, 1.8V, 2.5V, 2.6V, 2.8V
and 3.3V regulated output and 0.8V to 5V adjustable
output, and provides excellent output accuracy ±1.5%,
also provides an excellent load regulation, line
regulation and excellent load transient performance
due to very fast loop response. The AP2112 has
built-in auto discharge function.
The regulator features low power consumption, and
provides SOT-23-5, SOT-89-5, and SOIC-8 packages.
Features
•
Output Voltage Accuracy: ±1.5%
• Output Current: 600mA (Min.)
• Foldback Short Current Protection: 50mA
• Enable Function to Turn ON/OFF V
OUT
• Low Dropout Voltage (3.3V): 250mV (Typ.)
@I
OUT
=600mA
• Excellent Load Regulation: 0.2%/A (Typ.)
• Excellent Line Regulation: 0.02%/V (Typ.)
• Low Quiescent Current: 55 μA (Typ.)
• Low Standby Current: 0.01 μA (Typ.)
• Low Output Noise: 50 μV
RMS
• PSRR: 100Hz -65dB, 1kHz -65dB
• OTSD Protection
• Stable with 1.0 μF Flexible Cap: Ceramic,
Tantalum and Aluminum Electrolytic
• Operation Temperature Range: -40°C to 85°C
• ESD: MM 400V, HBM 4000V
Applications
• Laptop Computer
• Portable DVD
• LCD Monitor

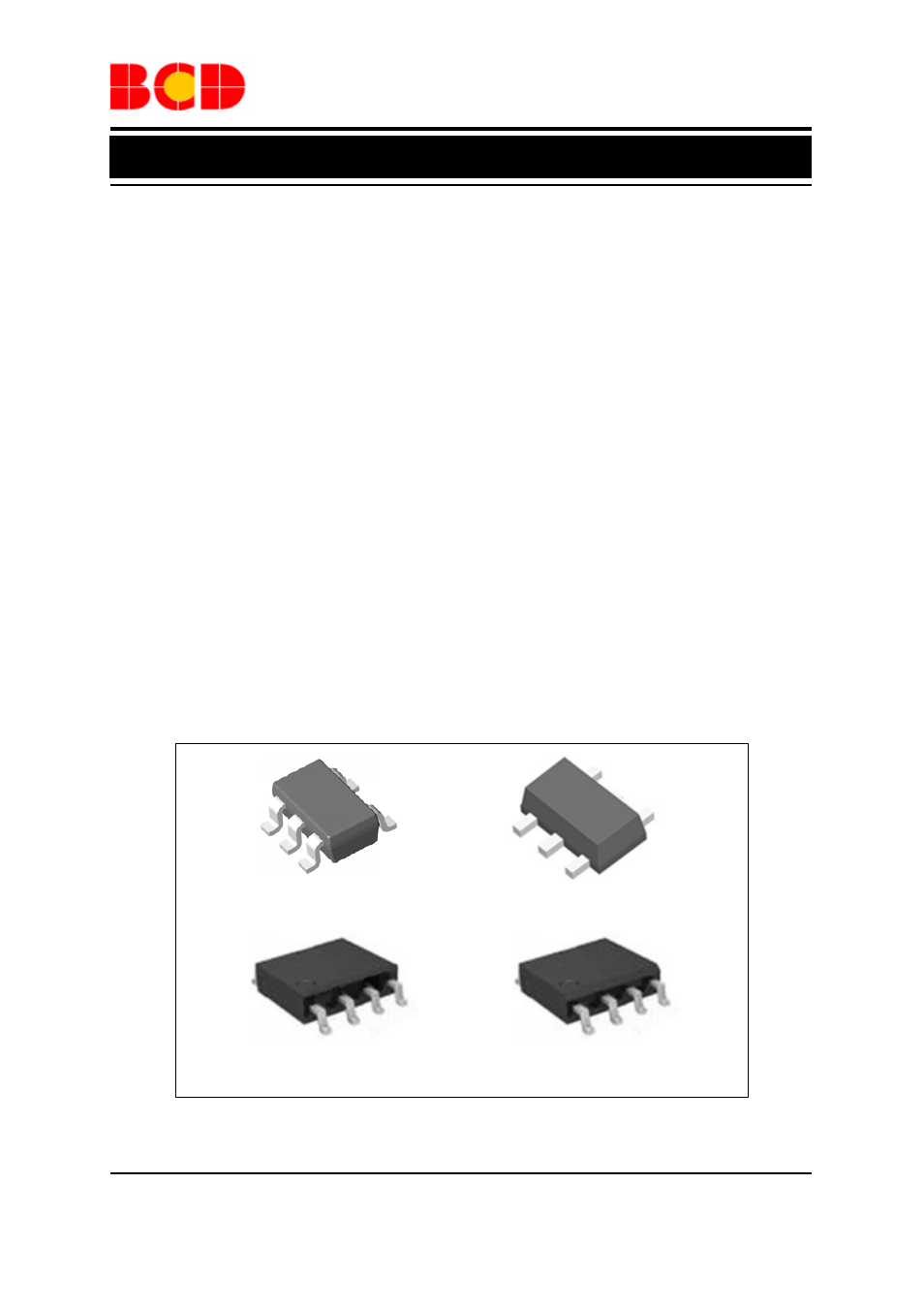

Figure 1. Package Types of AP2112
SOT-23-5 SOT-89-5
SOIC-8 (Option 1) SOIC-8 (Option 2)
