AP2141D/ AP2151D

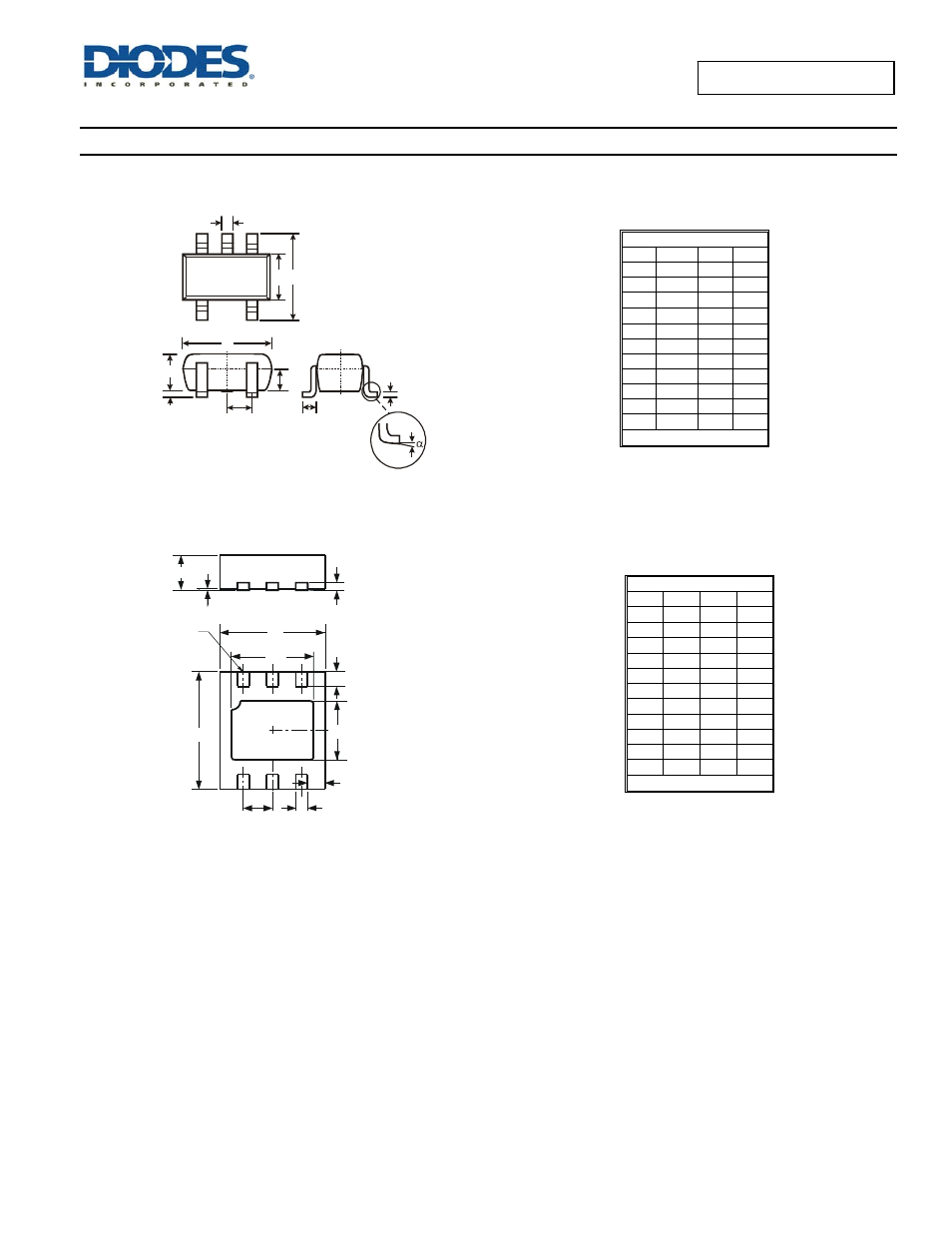

Package Outline Dimensions
(cont.) (All dimensions in mm.)
(3) Package Type: SOT25
(4) Package Type: U-DFN2018-6
SOT25
Dim Min Max Typ
A 0.35 0.50 0.38
B 1.50 1.70 1.60
C 2.70 3.00 2.80
D   0.95
H 2.90 3.10 3.00
J 0.013 0.10 0.05
K 1.00 1.30 1.10
L 0.35 0.55 0.40
M 0.10 0.20 0.15
N 0.70 0.80 0.75
 0° 8° 
All Dimensions in mm
U-DFN2018-6
Dim Min Max Typ
A 0.545 0.605 0.575
A1 0 0.05 0.02
A3   0.13
b 0.15 0.25 0.20
D 1.750 1.875 1.80
D2 1.30 1.50 1.40
e   0.50
E 1.95 2.075 2.00
E2 0.90 1.10 1.00
L 0.20 0.30 0.25
z   0.30
All Dimensions in mm
A
M
J
L D
B C
H
K
N
SEATING PLANE
E
E2
L
A
D
D2
A3
A1
e
b
Pin#1 ID
z
