AP2280
Single Channel Slew Rate Controlled Load Switch
AP2280 Rev. 6 7 of 12 FEBRUARY 2009
www.diodes.com © Diodes Incorporated
Typical Performance Characteristics
(Continued)

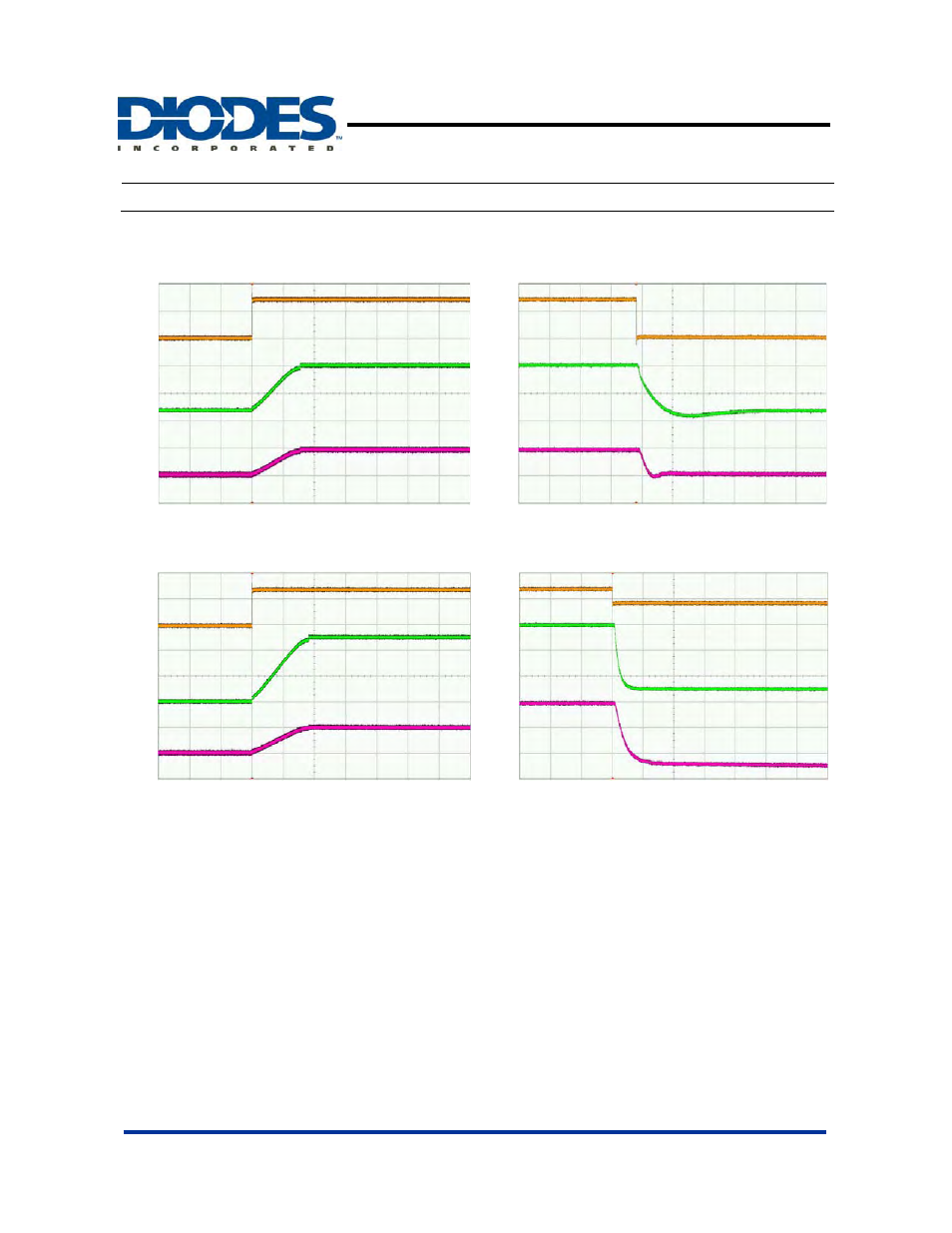

AP2280-2 Turn-On
(V
IN
=3.3V, R
L
=7 Ω)
Time (500 μs/div)
AP2280-2 Turn-Off
(V
IN
=3.3V, R
L
=7 Ω)
Time (5 μs/div)
AP2280-2 Turn-On
(V
IN
=5V, R
L
=10 Ω)
Time (500 μs/div)
AP2280-2 Turn-Off
(V
IN
=5V, R
L
=10 Ω)
Time (5 μs/div)
VEN (2V/div)
VOUT (2V/div)
IIN (500mA/div)
VEN (2V/div)
VOUT (2V/div)
IIN (500mA/div)
VEN (2V/div)
VOUT (2V/div)
IIN (500mA/div)
VEN (2V/div)
VOUT (2V/div)
IIN (200mA/div)
