AP2166/ AP2176
Document number: DS31814 Rev. 3 - 2
6 of 17
www.diodes.com
April 2013
© Diodes Incorporated
AP2166/ AP2176

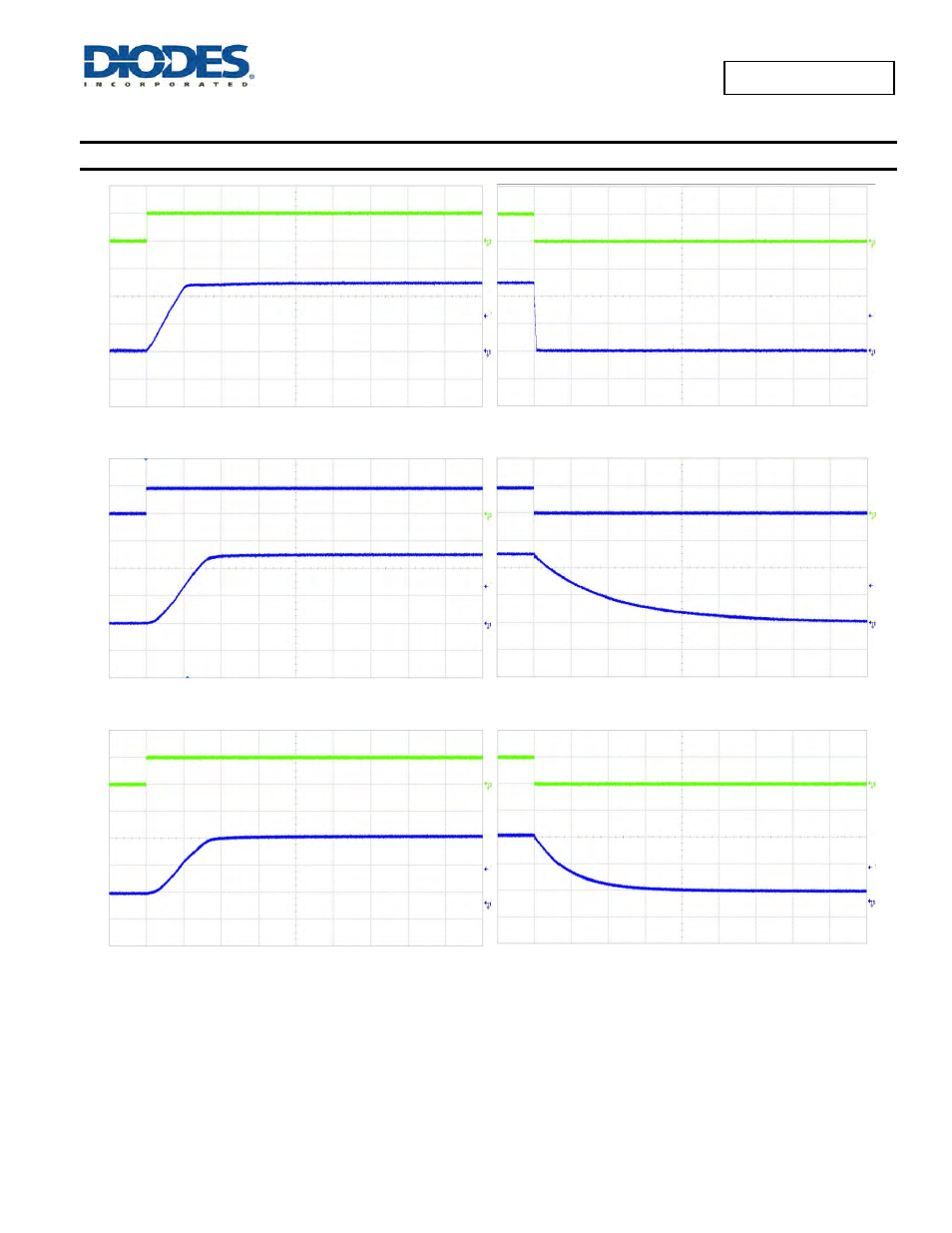

Typical Performance Characteristics
(cont.)
500µs/div
Channel 2 Turn-On Delay and Rise Time
500µs/div
Channel 2 Turn-Off Delay and Fall Time
500µs/div
Channel 1 Turn-On Delay and Rise Time
500µs/div
Channel 1 Turn-Off Delay and Fall Time
500µs/div
Channel 2 Turn-On Delay and Rise Time
500µs/div
Channel 2 Turn-Off Delay and Fall Time
Vout 2
2V/div
Ven 2
5V/div
CL=1µF
TA= +25°C
RL=10Ω
Vout 2
2V/div
Ven 2
5V/div
CL=1µF
TA= +25°C
RL=10Ω
Vout 1
2V/div
Ven 1
5V/div
CL=100µF
TA= +25°C
RL=10Ω
Vout 1
2V/div
Ven 1
5V/div
CL=100µF
TA= +25°C
RL=10Ω
Vout 2
2V/div
Ven 2
5V/div
CL=100µF
TA= +25°C
RL=10Ω
Vout 2
2V/div
Ven 2
5V/div
CL=100µF
TA= +25°C
RL=10Ω
