AP2182A/ AP2192A

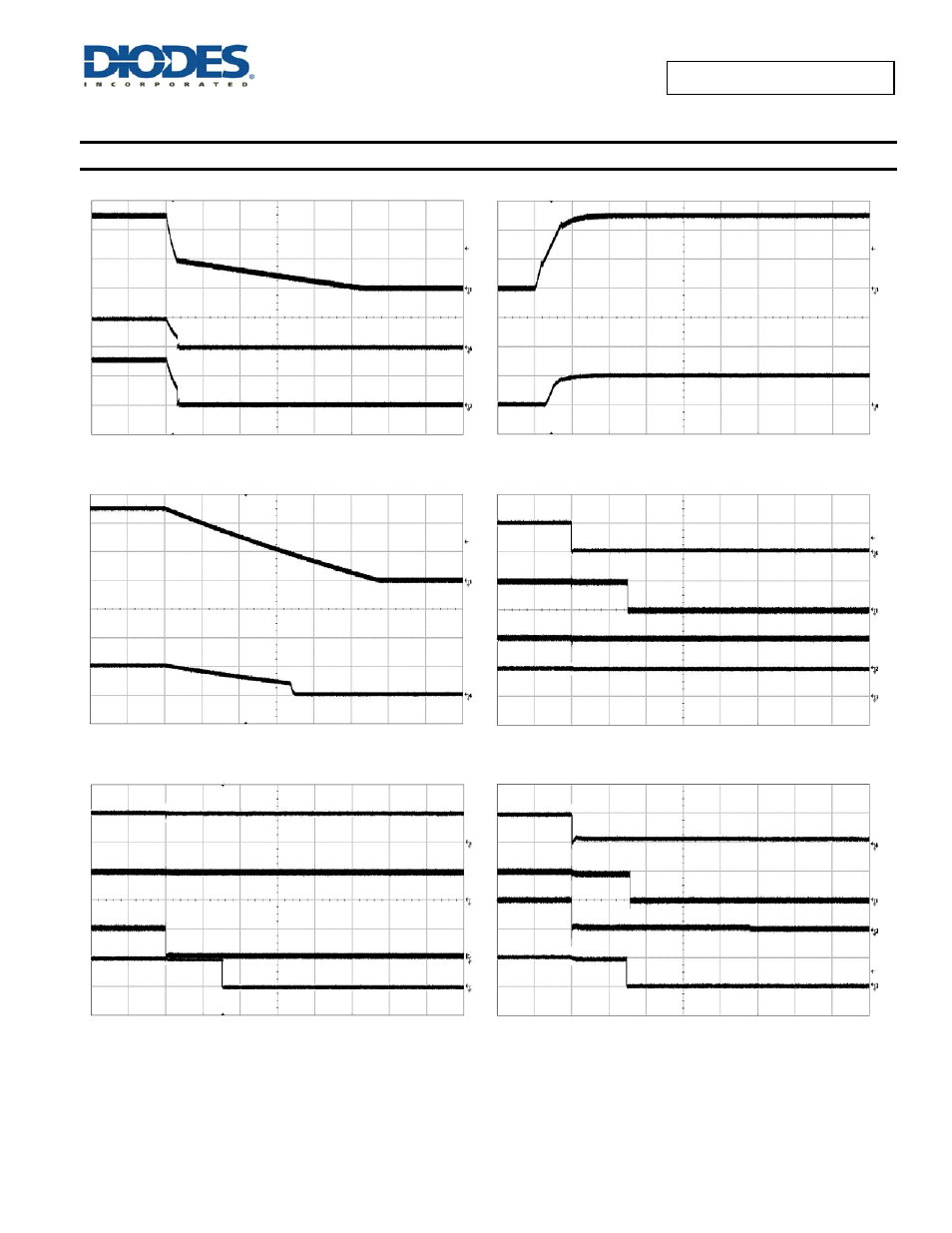

Typical Performance Characteristics
(cont.)
UVLO Decreasing
10ms/div
UVLO Increasing (No Load)
1ms/div
UVLO Decreasing (No Load)
20ms/div
Channel 1 Enabled and Shorted
with Channel 2 Enabled
5ms/div
Channel 2 Enabled and Shorted
with Channel 1 Enabled
5ms/div
Channels 1 and 2 Enabled and
Shorted
5ms/div
TA= +25°C
CL=1

F
RL=0Ω
Vin
2V/div
Vout
5V/div
TA= +25°C
CL=1

F
RL=3Ω
Vin
2V/div
Iout
1A/div
Vout
5V/div
Vout1
5V/div
FLG1
5V/div
Vout2
5V/div
FLG2
5V/div
TA= +25°C
CL=1

F
RL=0Ω
Vin
2V/div
Vout
5V/div
VIN=5V
TA= +25°C
CL=1

F
Vout1
5V/div
FLG1
5V/div
Vout2
5V/div
FLG2
5V/div
VIN=5V
TA=25°C
CL=1

F
