AP2162/AP2172
1A DUAL CHANNEL CURRENT-LIMITED POWER
SWITCH
AP2162/AP2172 Rev. 5 2 of 17 FEBRUARY 2009
www.diodes.com © Diodes Incorporated

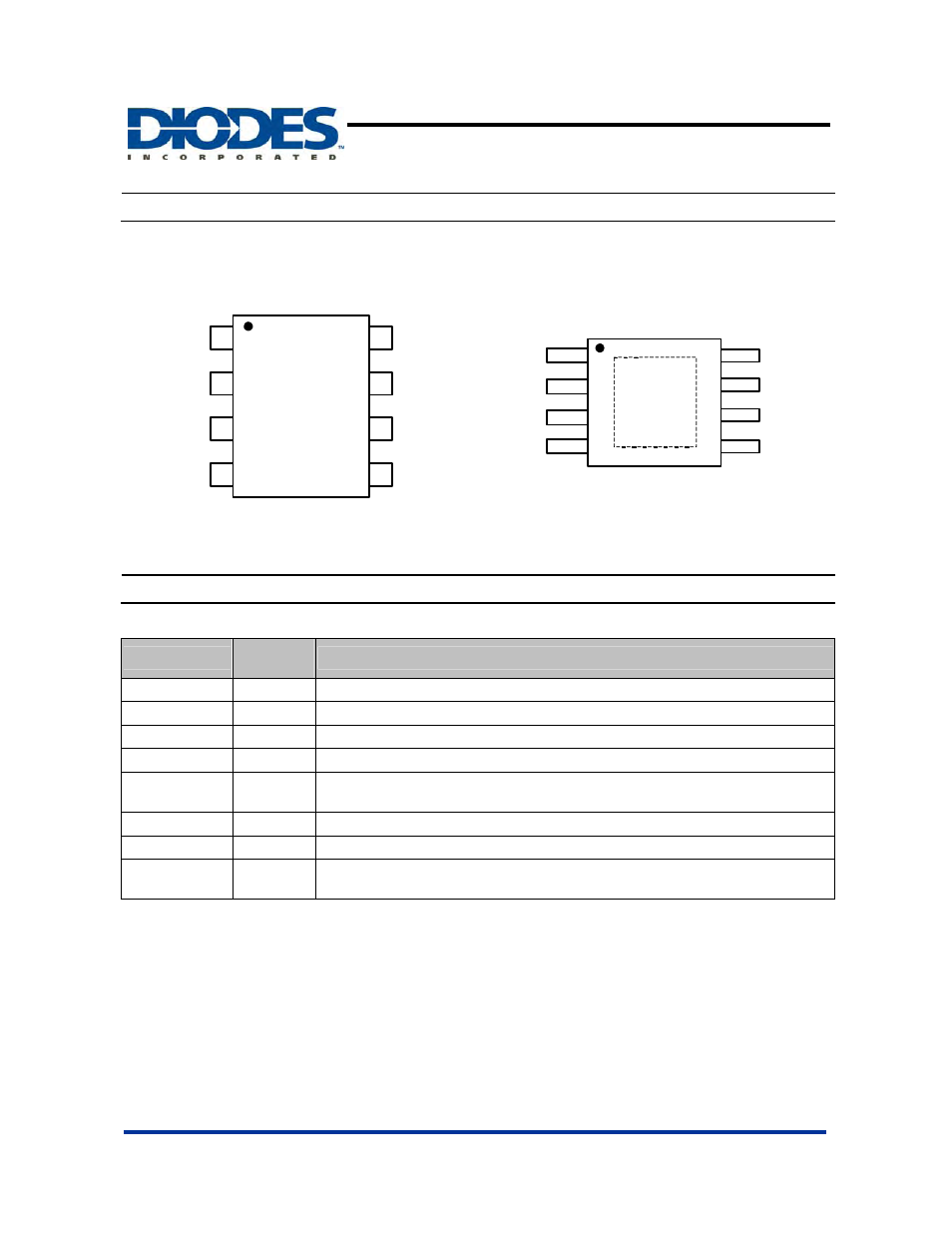

SOP-8L
( Top View )
1
2
3
4
8
7
6
5
FLG1
OUT1
FLG2
OUT2
GND
EN2
EN1
IN
MSOP-8L-EP
1
2
3
4
8
7
6
5
FLG1
OUT1
FLG2
OUT2
GND
EN2
EN1
IN
( Top View )
Pin Name
Pin
Number
Descriptions
GND 1 Ground
IN 2 Voltage input pin
EN1 3 Switch 1 enable input, active low (AP2162) or active high (AP2172)
EN2 4 Switch 2 enable input, active low (AP2162) or active high (AP2172)
FLG2 5
Switch 2 over-current and over-temperature fault report; open-drain flag is active
low when triggered
OUT2 6 Switch 2 voltage output pin
OUT1 7 Switch 1 voltage output pin
FLG1 8
Switch 1 over-current and over-temperature fault report; open-drain flag is active
low when triggered
Pin Assignment
Pin Descriptions
