AP2142A/ AP2152A

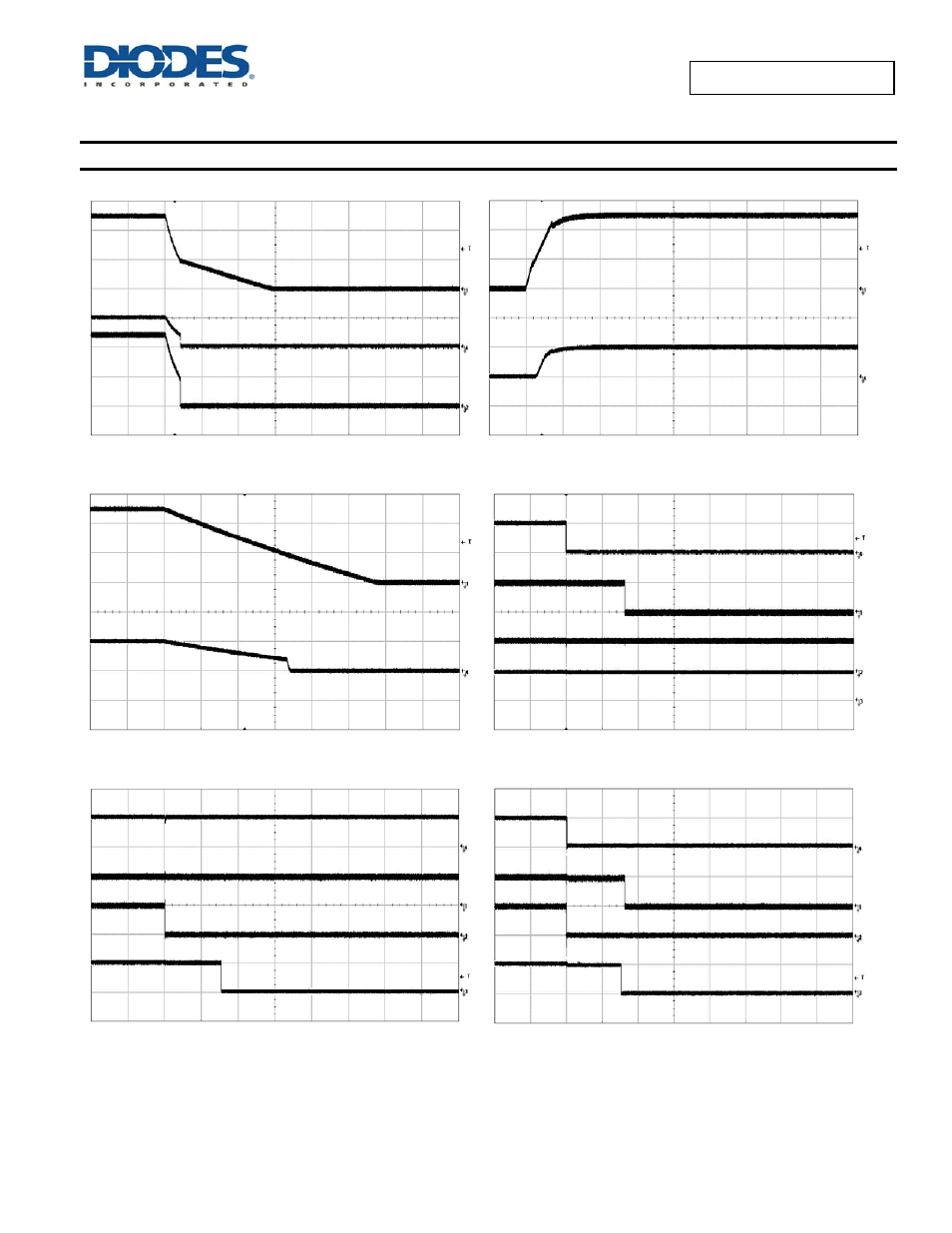

Typical Performance Characteristics
(cont.)
UVLO Decreasing UVLO Increasing (No Load)
20ms/div 1ms/div
UVLO Decreasing (No Load)
Channel 1 Enabled and Shorted
with Channel 2 Enabled
20ms/div 5ms/div
Channel 2 Enabled and Shorted
with Channel 1 Enabled Channels 1 and 2 Enabled and Shorted
5ms/div 5ms/div
TA= +25°C
CL=1

F
RL=10Ω
Vin
2V/div
Iout
200mA/div
Vout
5V/div
TA= +25°C
CL=1

F
RL=0Ω
Vin
2V/div
Vout
5V/div
TA= +25°C
CL=1

F
RL=0Ω
Vin
2V/div
Vout
5V/div
Vout1
5V/div
FLG1
5V/div
Vout2
5V/div
FLG2
5V/div
VIN=5V
TA= +25°C
CL=1

F
Vout1
5V/div
FLG1
5V/div
Vout2
5V/div
FLG2
5V/div
VIN=5V
TA=25°C
CL=1

F
Vout1
5V/div
FLG1
5V/div
Vout2
5V/div
FLG2
5V/div
