AP2142A/ AP2152A
0.5A DUAL CHANNEL CURRENT-LIMITED
POWER SWITCH WITH OUTPUT DISCHARGE
Description
The AP2142A and AP2152A are dual channel current-limited
integrated high-side power switches optimized for Universal Serial
Bus (USB) and other hot-swap applications. The family of devices
complies with USB standards and available with both polarities of
enable input.
The devices have fast short-circuit response time for improved overall
system robustness, and have integrated output discharge function to
ensure completely controlled discharging of the output voltage
capacitor. They provide a complete protection solution for application
subject to heavy capacitive loads and the prospect of short circuit,
and offer reverse current blocking, over-current, over-temperature
and short-circuit protection, as well as controlled rise time and under-
voltage lockout functionality. A 7ms deglitch capability on the open-
drain flag output prevents false over-current reporting and does not
require any external components.
All devices are available in SO-8, MSOP-8EP and U-DFN3030-8
packages.
Features
 Dual Channel Current-Limited Power Switch with Output
Discharge

Fast Short-Circuit Response Time: 2µs

0.7A Accurate Current Limiting
 Reverse Current Blocking
 85mΩ On-Resistance

Input Voltage Range: 2.7V – 5.5V
 Built-In Soft-Start with 0.6ms Typical Rise Time
 Short Circuit and Thermal Protection

Fault Report (FLG) with Blanking Time (7ms typ)

ESD protection: 2kV HBM, 300V MM
 Active High (AP2152A) or Active Low (AP2142A) Enable

Ambient Temperature Range: -40°C to +85°C

SO-8, MSOP-8EP and DFN3030E-8 (Exposed Pad): Available
in “Green” Molding Compound (No Br, Sb)

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 UL Recognized, File Number E322375
 IEC60950-1 CB Scheme Certified

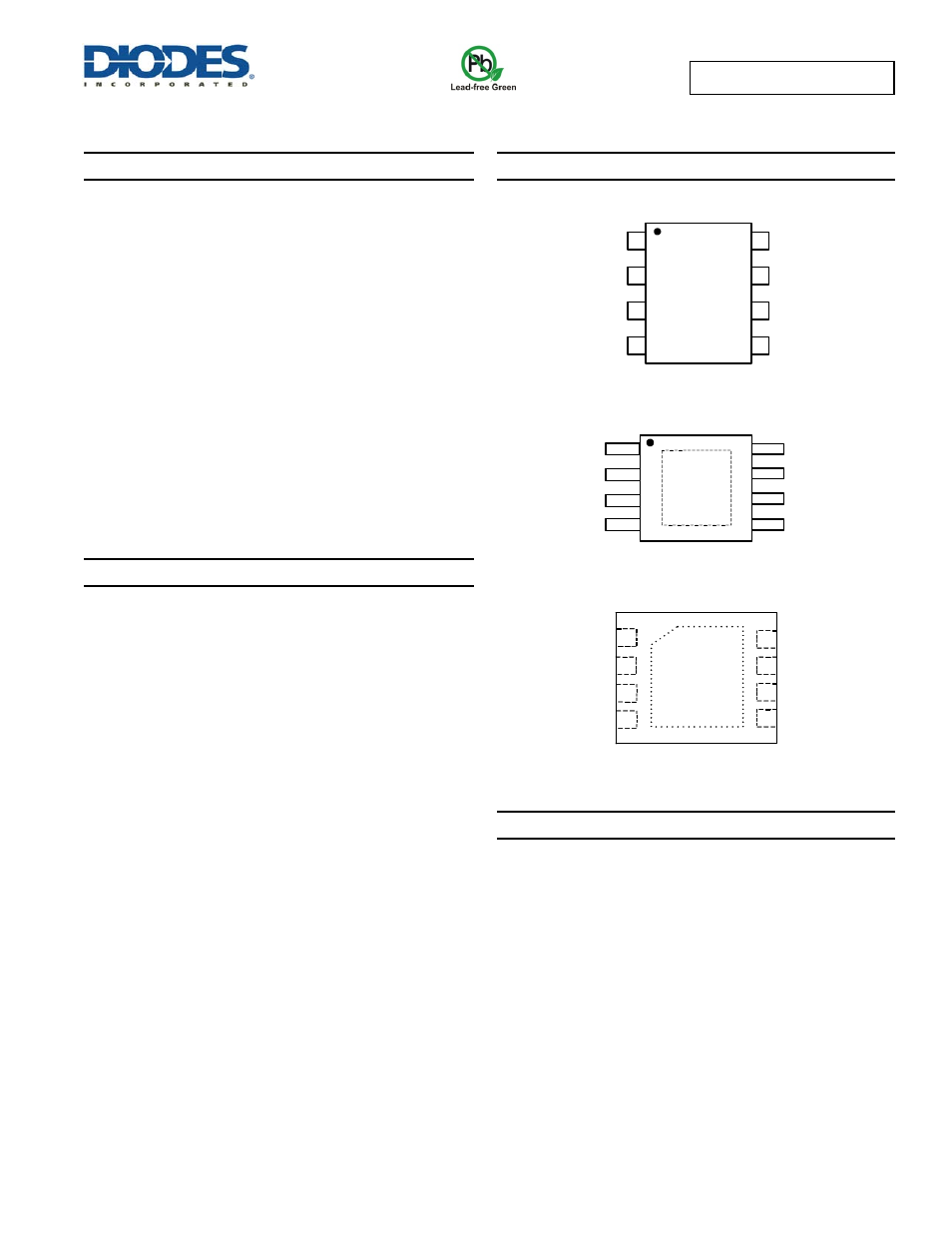

Pin Assignments
SO-8
( Top View )
1
2
3
4
8
7
6
5
FLG1
OUT1
FLG2
OUT2
GND
EN2
EN1
IN
MSOP-8EP
1
2
3
4
8
7
6
5
FLG1
OUT1
FLG2
OUT2
GND
EN2
EN1
IN
( Top View )
( Top View )
EN2
GND FLG1 1
2 IN
3
4
6
5
8
7
FLG2
EN1
OUT1
OUT2
U-DFN3030-8
Applications

LCD TVs & Monitors

Set-Top-Boxes, Residential Gateways
 Laptops, Desktops, Servers,
 Printers, Docking Stations, HUBs
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
