Typical Application

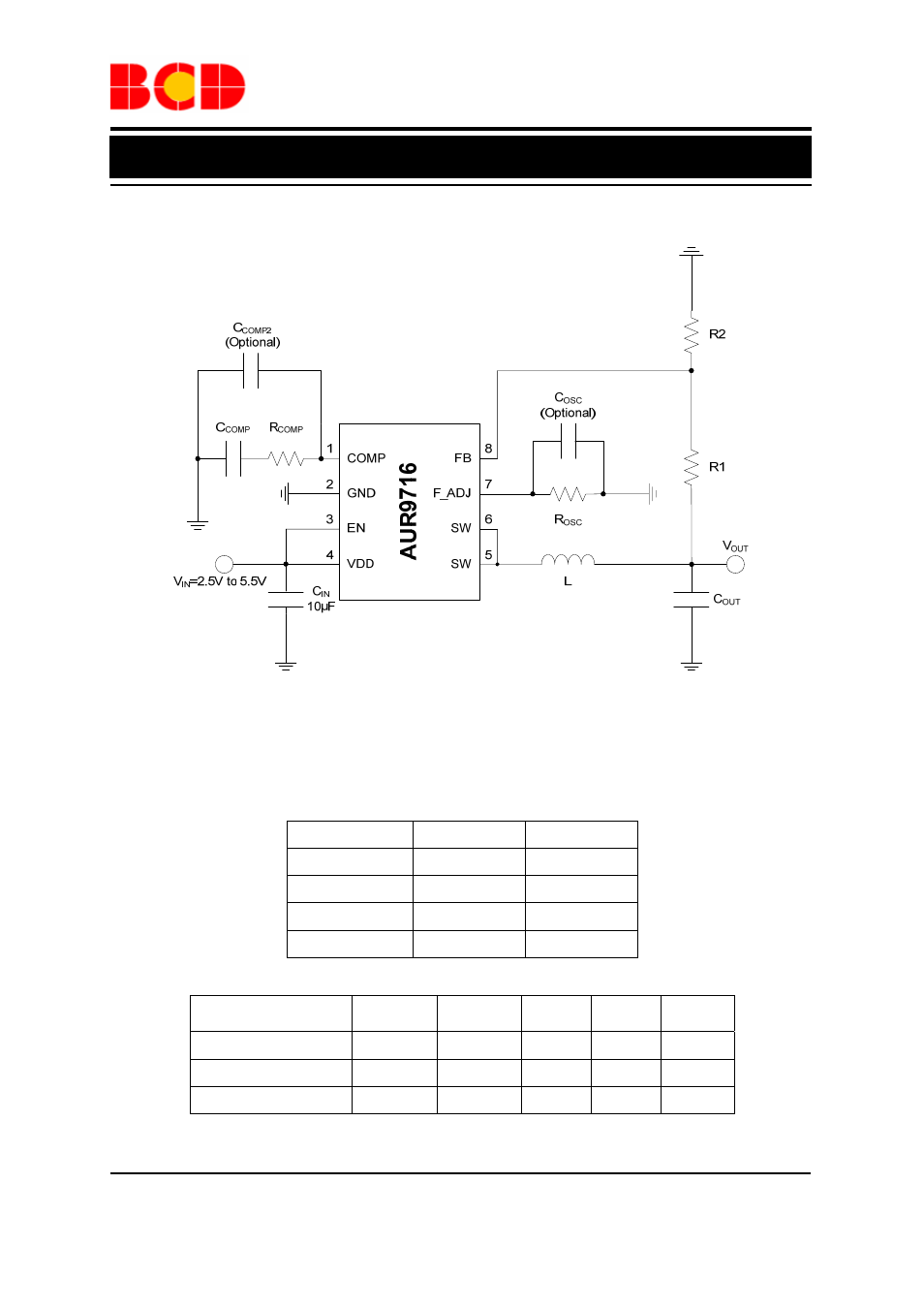

Figure 27. Typical Application Circuit of AUR9716
(Switching Frequency=1.0MHz to 1.4MHz)
V
OUT
(V) R1 (kΩ) R2 (kΩ)
3.3 6.25 2
2.5 4.25 2
1.8 2.5 2
1.1 0.75 2
Switching Frequency
(MHz)
R
OSC
(kΩ)
R
COMP
(kΩ)
C
COMP
(nF)
L
(µH)
C
OUT
(µF)
1.0 536 3.6 1.5 2.2 10
1.2 976 4.3 1.0 1.5 10
1.4 5100 4.3 1.0 1.5 10
