Data sheet, Typical performance characteristics (continued) – Diodes AP3431 User Manual
Page 9
Data Sheet
1.0MHz, 2.0A, Synchronous Step Down DC-DC Converter AP3431
Nov. 2011 Rev. 1. 0 BCD Semiconductor Manufacturing Limited
9

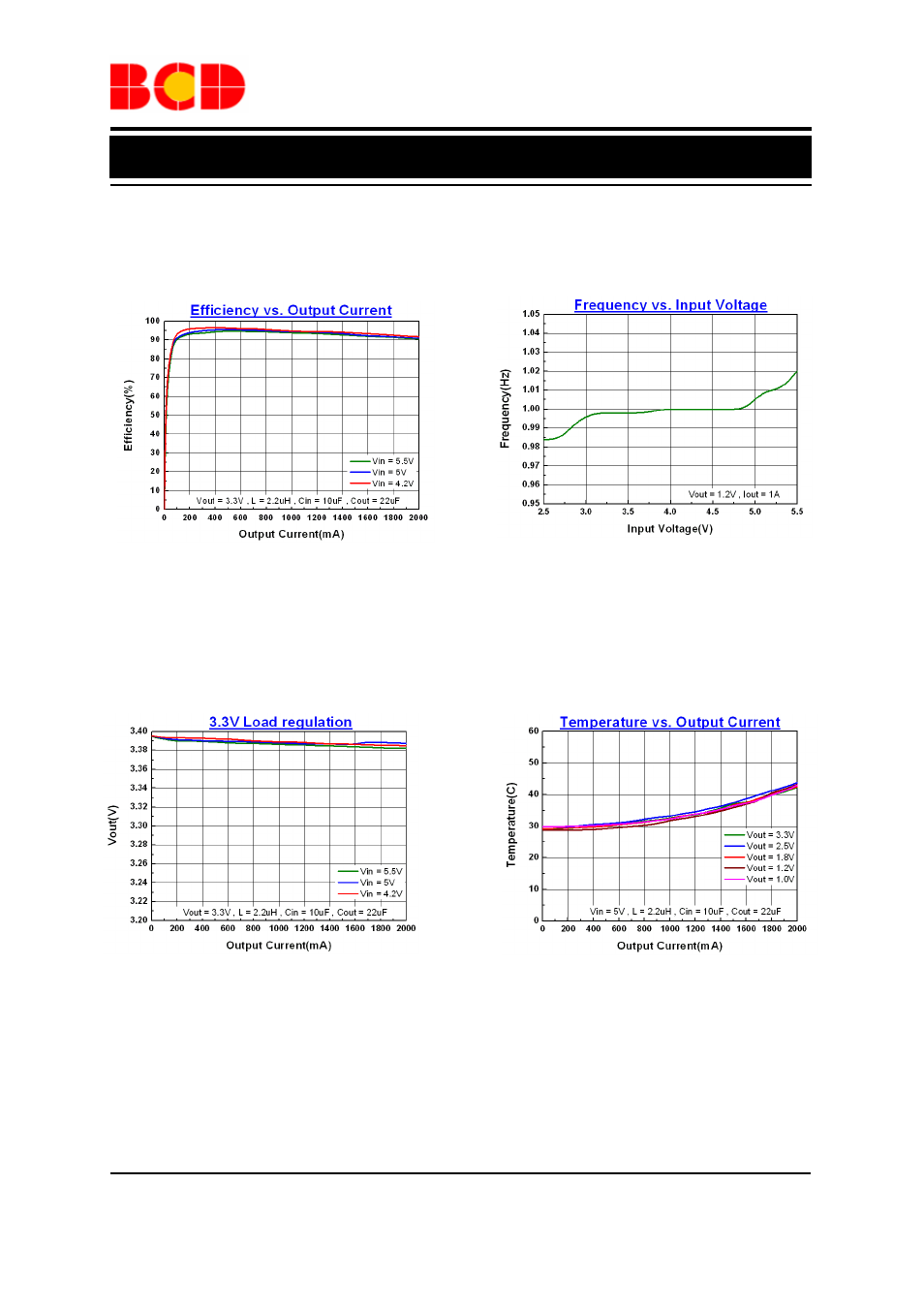

Typical Performance Characteristics (Continued)
Figure 16. Efficiency vs. Output Current
Figure 17. Frequency vs. Input Voltage
Figure 18. 3.3V Load Regulation
Figure 19. Temperature vs. Output Current
