Data sheet, Typical performance characteristics (continued) – Diodes AP3431 User Manual
Page 7
Data Sheet
1.0MHz, 2.0A, Synchronous Step Down DC-DC Converter AP3431
Nov. 2011 Rev. 1. 0 BCD Semiconductor Manufacturing Limited
7

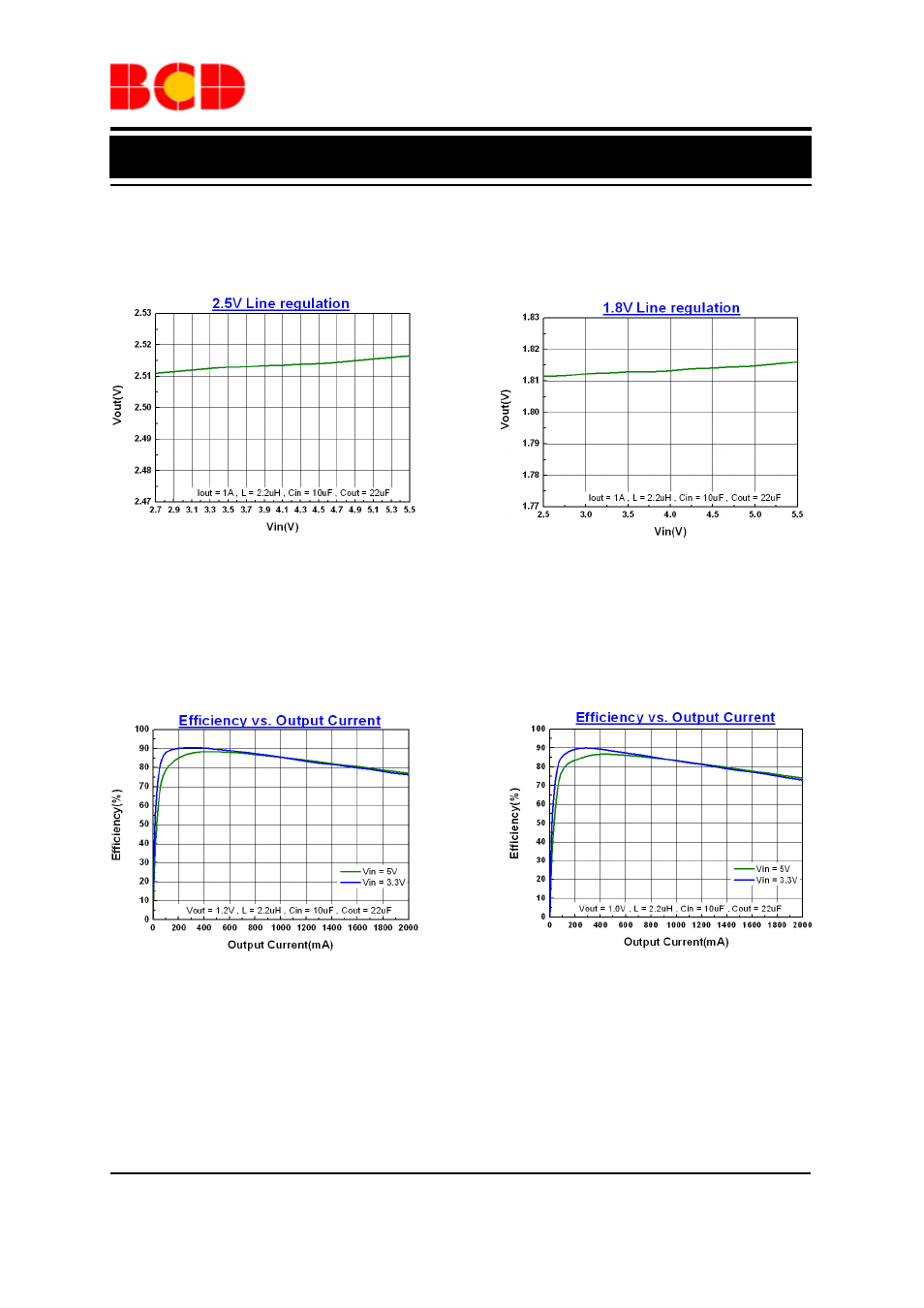

Typical Performance Characteristics (Continued)
Figure 8. 2.5V Line Regulation
Figure 9. 1.8V Line Regulation
Figure 10. Efficiency vs. Output Current
Figure 11. Efficiency vs. Output Current
