Preliminary Datasheet
2A, 4MHz High Efficiency Synchronous Buck Converter AP3408
Jan. 2013 Rev. 1. 1 BCD Semiconductor Manufacturing Limited
10

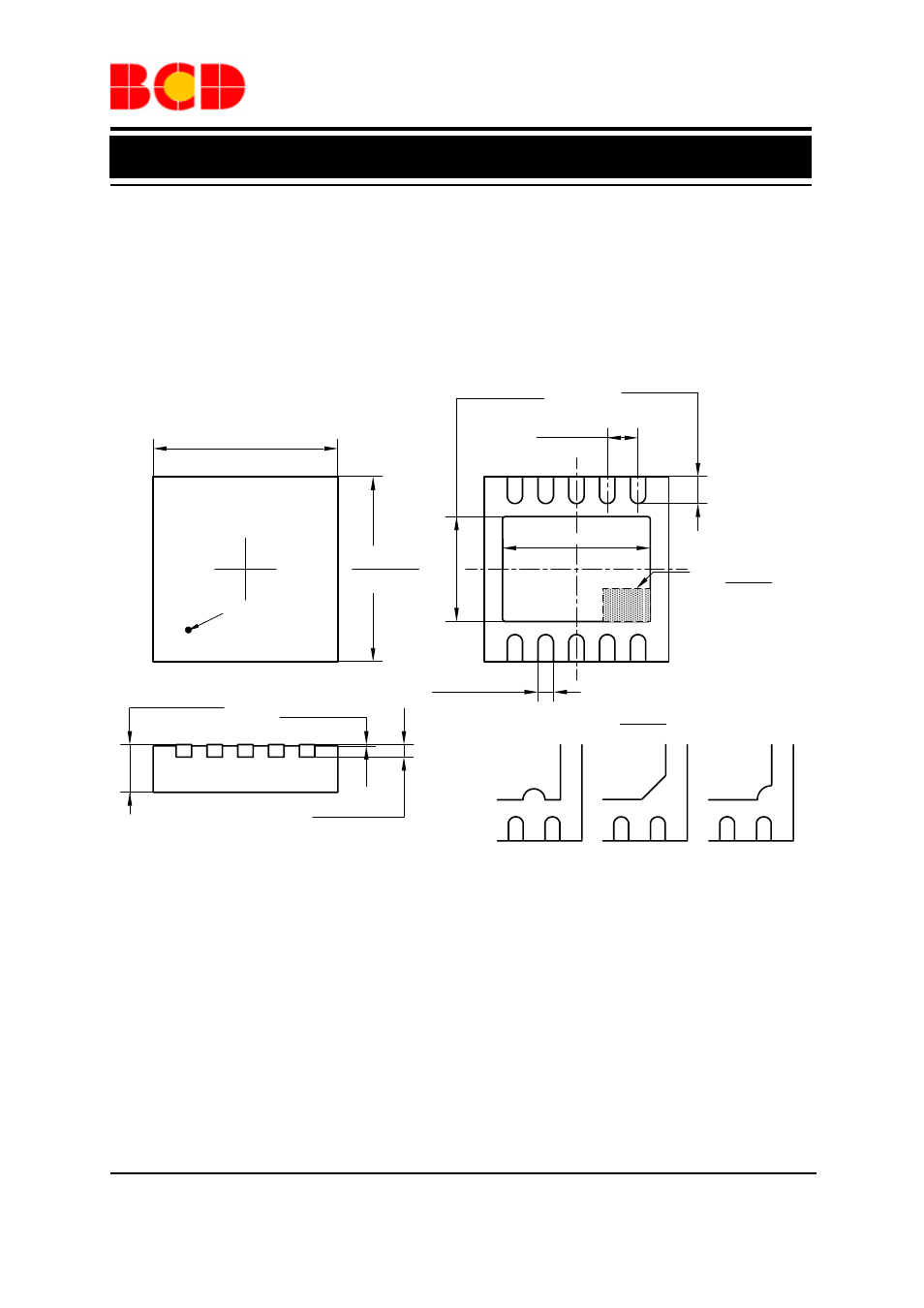

Mechanical Dimensions
DFN-3×3-10 Unit: mm(inch)
2.900(0. 114)
3.100(0. 122)
2.900(0. 114)
3.100(0. 122)
1.600(0. 063)
1.800(0. 071)
0.200(0. 008)
0.300(0. 012)
0.500(0. 020)
TYP
0.300(0. 012)
0.500(0. 020)
0.000(0. 000)
0.050(0. 002)
0.700(0. 028)
0.800(0. 031)
0.153(0. 006)
0.253(0. 010)
2.300(0. 090)
2.500(0. 098)
N1 N5
N6 N10
Pin 1 Mark
PIN #1 IDENTIFICATION
See DETAIL A
1 2
DETAIL A
1 2 1 2
Pin 1 options
