DUAL OP AMP AND VOLTAGE REFERENCE
Description
The AP4310E is a monolithic IC specifically designed to regulate the
output current and voltage levels of switching battery chargers and
power supplies
The device contains two Op Amps and a 2.5V precision shunt voltage
reference. Op Amp 1 is designed for voltage control with its non-
inverting input internally connected to the output of the shunt
regulator. Op Amp 2 is for current control with both inputs
uncommitted. The IC offers the power converter designer a control
solution that features increased precision with a corresponding
reduction in system complexity and cost. AP4310E has more
stringent reference voltage tolerance and offset.
The AP4310E is available in standard package of SO-8.
Applications
Battery Charger
Switching Power Supply

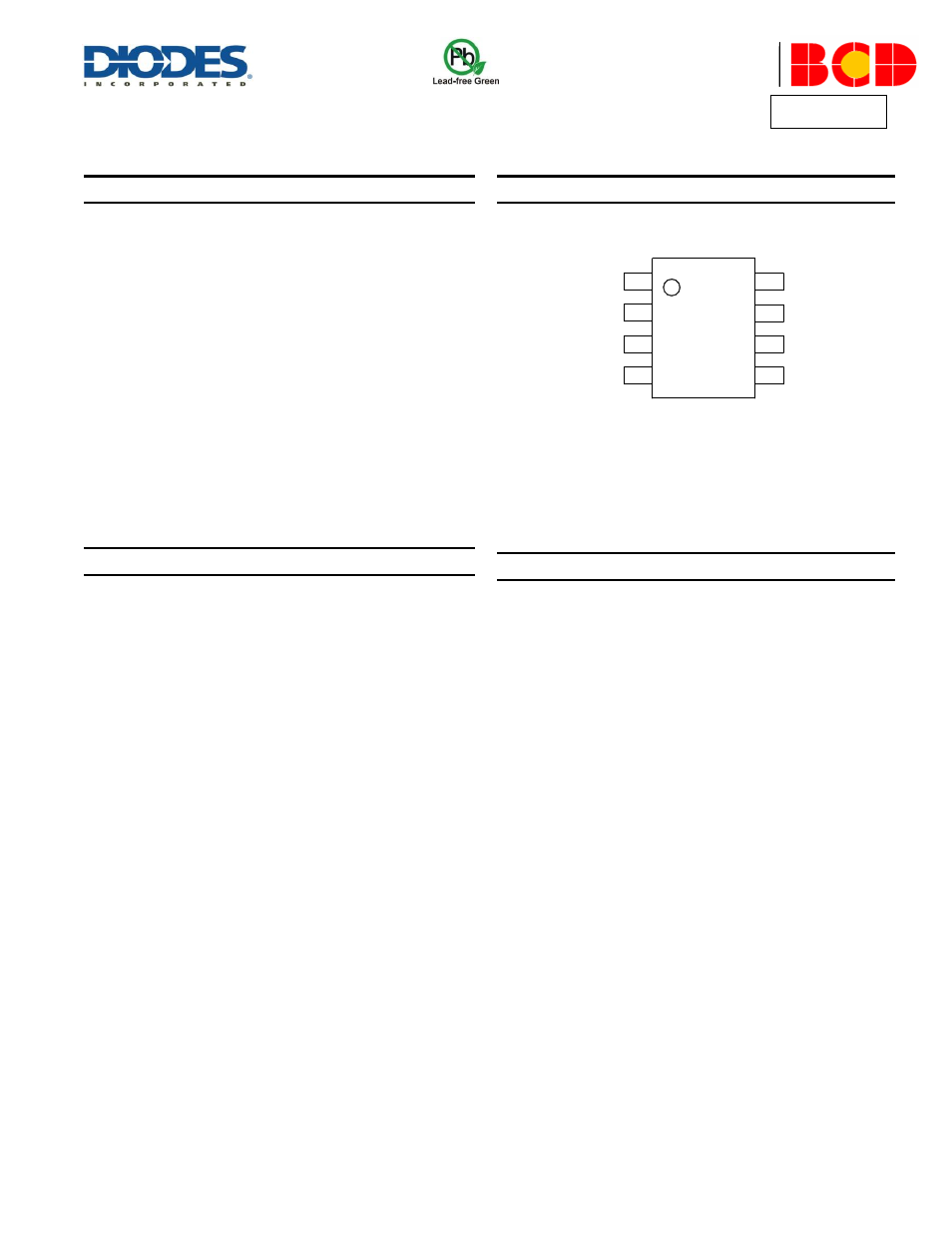

Pin Assignments
(Top View)
1
2
3
4
8
7
6
5
OUTPUT 1
INPUT 1-
INPUT 1+/VKA
GND
INPUT 2-
INPUT 2+
OUTPUT 2
VCC
SO-8 (M Package)
Features
OP Amp
Input Offset Voltage: 0.5mV
Supply Current: 75
A per OP Amp at 5.0V Supply Voltage
Unity Gain Bandwidth:1MHz
Output Voltage Swing: 0 to V
CC
-1.5V
Power Supply Range: 3 to 36V
Voltage Reference
Fixed Output Voltage Reference: 2.5V
Reference Voltage Tolerance: ±0.4%
Sink Current Capability: 0.05 to 80mA
Typical Output Impedance: 0.2
Ω
Totally Lead-free & Fully RoHS Compliant (Note1 & 2)
Halogen and Antimony Free.
“Green” Device (Note 3)
