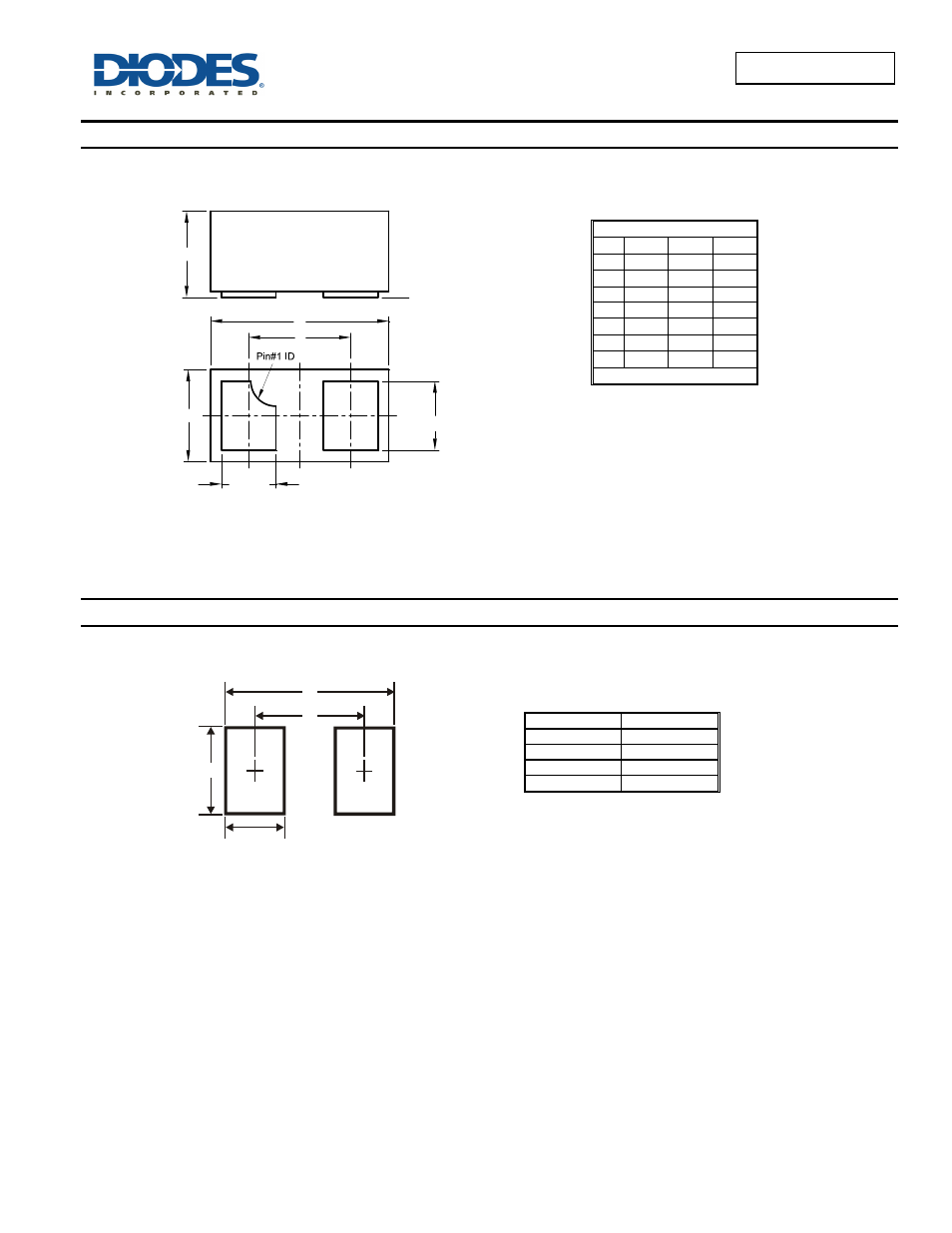

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X2-DFN0603-2
Dim Min Max Typ
A 0.27 0.35 0.30
A1 0.00 0.03 0.02
b 0.19 0.29 0.24
D 0.595 0.645 0.62
E 0.295 0.345 0.32
e - - 0.355
L3 0.14 0.24 0.19
All Dimensions in mm
Dimensions Value (in mm)
C 0.355
X 0.230
Y 0.300
Z 0.610
Z
Y (2x)
X (2x)
C
S e a t i n g P l a n e
A
E
D
b ︵2 x ︶
L 3 ︵2 x ︶
e
