Diodes D5V0X1B2LP3 User Manual
Product summary, Description, Applications
D5V0X1B2LP3
Document number: DS36494 Rev. 3 - 2
1 of 5
May 2014
© Diodes Incorporated
D5V0X1B2LP3
ADVAN
CE I
N
F
O
RM
ATI
O
N

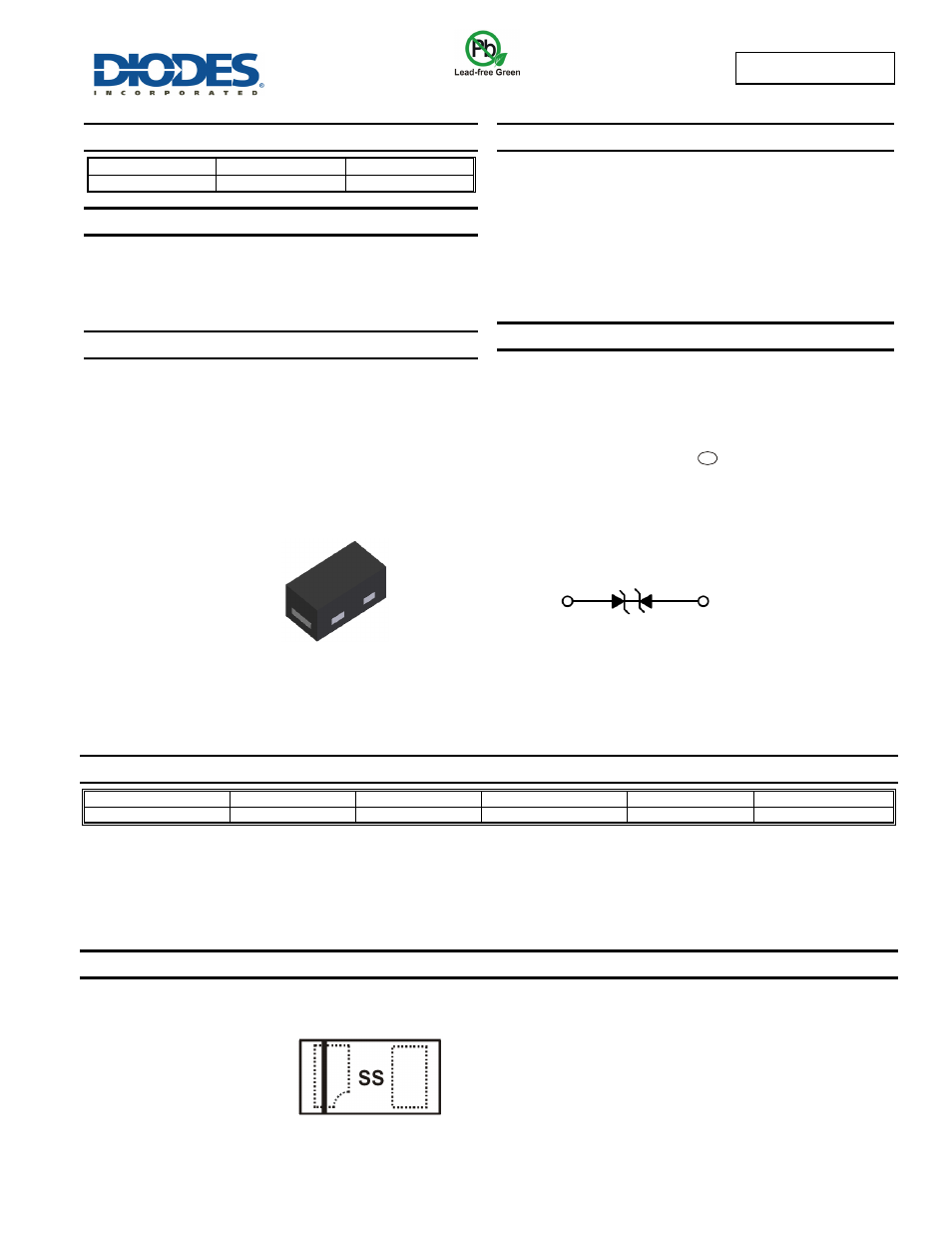

ADVANCED INFORMATION
ULTRA LOW CAPACITANCE BIDIRECTIONAL TVS DIODE
Product Summary
V
BR (min)
I
PP (max)
C
T (typ)
7V 1.5A
0.23pF
Description
This new generation TVS is designed to protect sensitive electronics
from the damage due to ESD. The combination of small size and high
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players.
Applications
• Cellular
Handsets
• Portable
Electronics
• Computers
and
Peripheral
Features
•
Ultra-Small, Low Profile Leadless Surface Mount Package (0.6 *
0.3 * 0.3mm)
•
Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±15kV, Contact ±15kV
•
1 Channel of ESD Protection
•
Ultra Low Channel Input Capacitance
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
•
Case: X3-DFN0603-2
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminals:
Finish
− Matte Tin over Copper leadframe, solderable
per MIL-STD-202, Method 208
•
Weight: 0.0002 grams (approximate)
Ordering Information
(Note 4)
Product
Compliance Marking
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
D5V0X1B2LP3-7
Standard
SS
7
8
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Device Schematic
Top View
SS = Product Type Marking Code
e3
