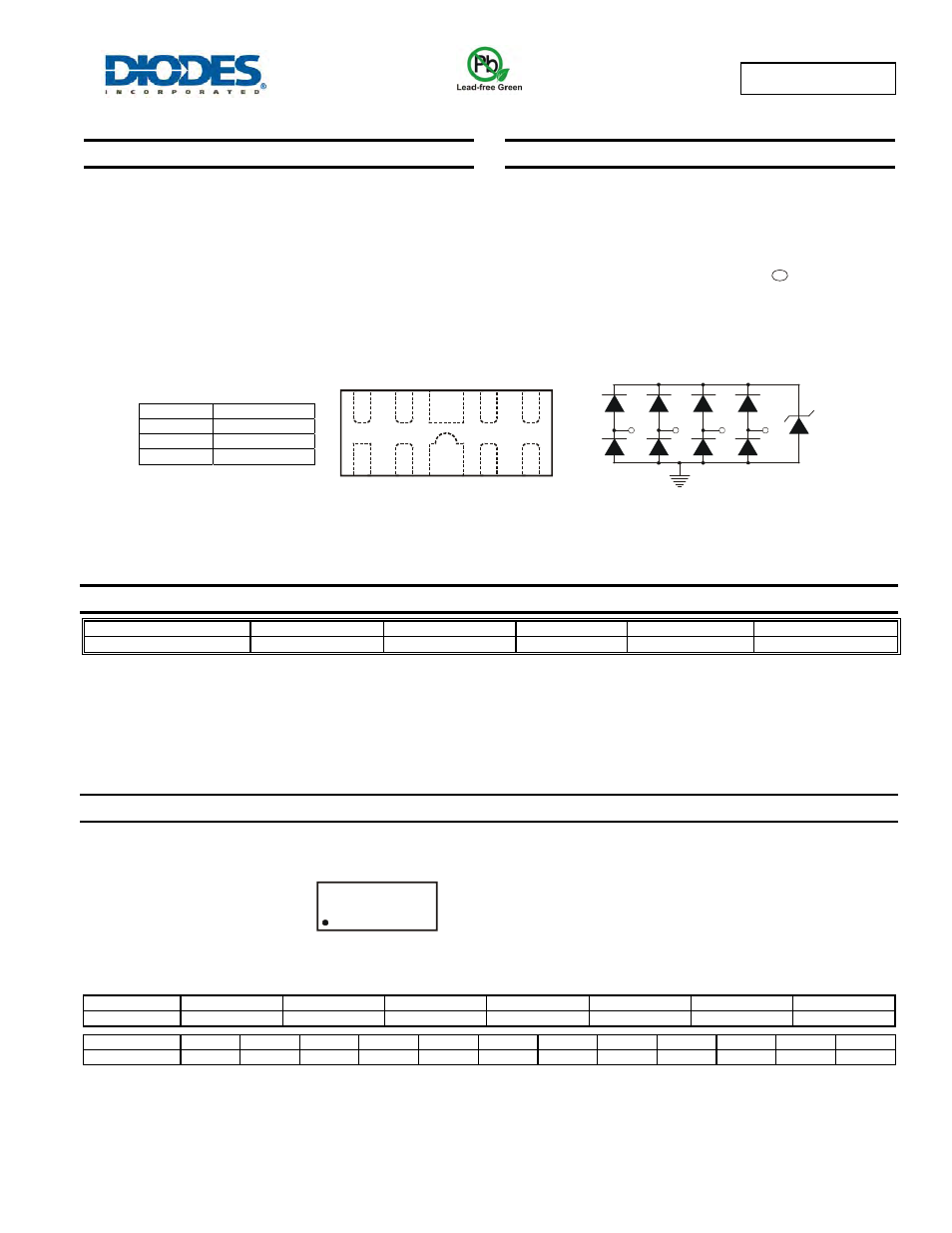

D5V0F4U10LP

Document number: DS35456 Rev. 3 - 2

1 of 4

www.diodes.com

July 2013

© Diodes Incorporated

D5V0F4U10LP


4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Features

IEC 61000-4-2 (ESD): Air – ±15kV, Contact – ±8kV

4 Channels of ESD Protection

Low Channel Input Capacitance of 0.5pF Typical

Typically Used at High Speed Ports such as USB 2.0, USB 3.0,

IEEE1394, Serial ATA, DVI, HDMI, PCI

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data

 Case:

U-DFN2510-10

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: NiPdAu over Copper leadframe (Lead Free Plating).

Solderable per MIL-STD-202, Method 208

Weight: 0.039 grams (approximate)












Ordering Information

(Note 4)

Product

Compliance Marking

Reel size (inches)

Tape width (mm)

Quantity per reel

D5V0F4U10LP-7

Standard

TF2

7

8

3,000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.




Marking Information












Date Code Key

Year

2013

2014

2015 2016 2017 2018 2019

Code

A B C D E F G

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D








e4

Pin# Description

1, 2, 4, 5

Input

6, 7, 9, 10

No Connection

3, 8

Ground

Pin Description (Top View)

TF2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)

Device Schematic

Pin 1

Pin 2

3,8

Pin 5

Pin 4

1

2

3

4

5

10

9

8

7

6

TF2

YM
