BST52
Da
tasheet Number: DS33022 Rev. 4 - 2
1 of 6
December 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
BST52
80V NPN SILICON PLANAR DARLINGTON TRANSISTOR
IN SOT89
Features
• BV
CEO
> 80V
•
High current gain
•
Max Continuous Current I
C
= 500mA
• Fast
switching
•
Lead Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free, “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT89
•
Moisture Sensitivity: Level 1 per J-STD-020
•
UL Flammability Rating 94V-0
•
Terminals: Matte Tin Finish
•
Weight: 0.052 grams (Approximate)
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
BST52TA
AS3 7
12
1,000
Notes:
1. No purposefully added lead.
2. Halogen and Antimony Free. Diodes Inc’s “Green” Policy can be found on our website at
3. For packaging details, go to our website at

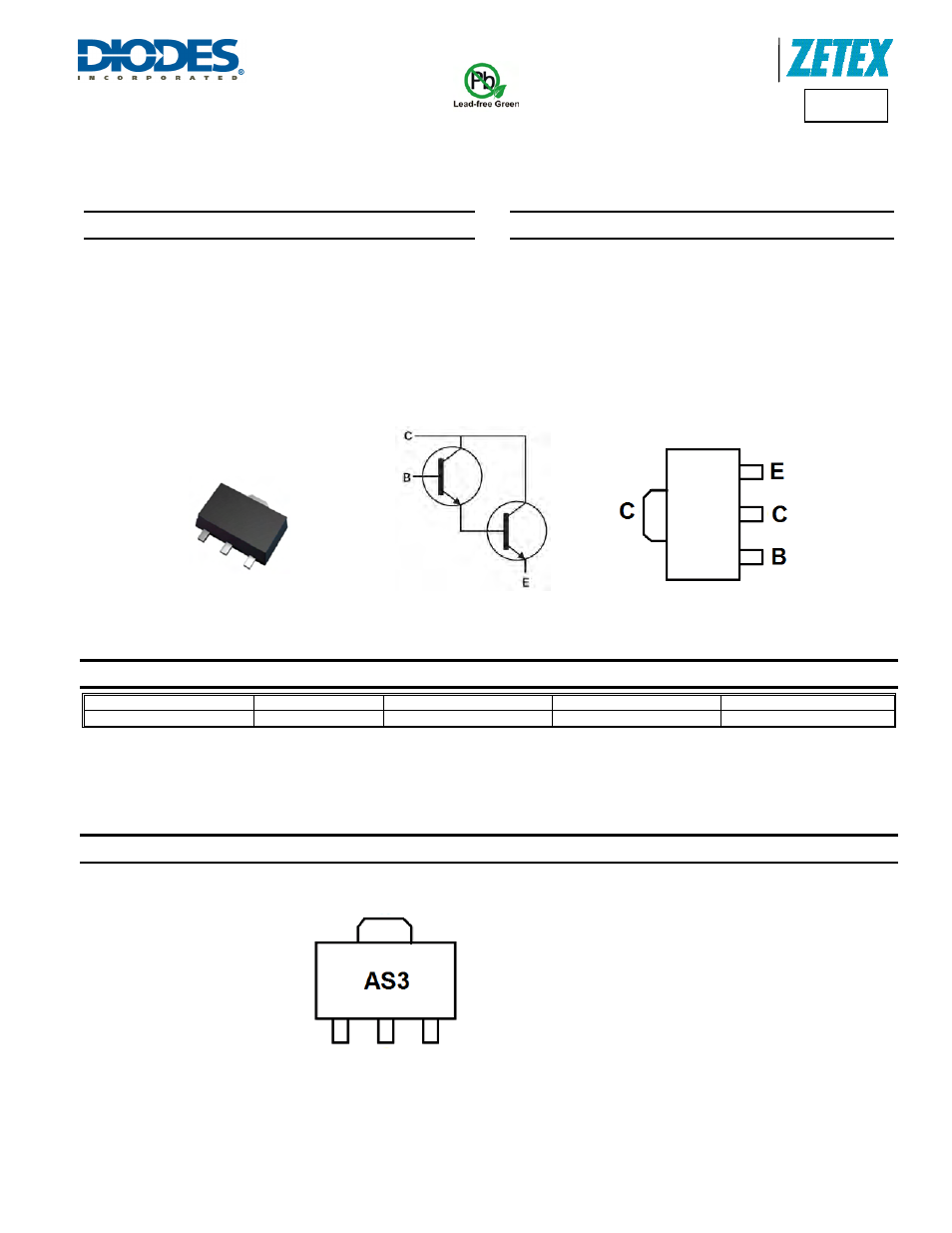

Marking Information
Top View
SOT89
Device symbol
Top View
Pin-out
AS3 = Product Type Marking Code
