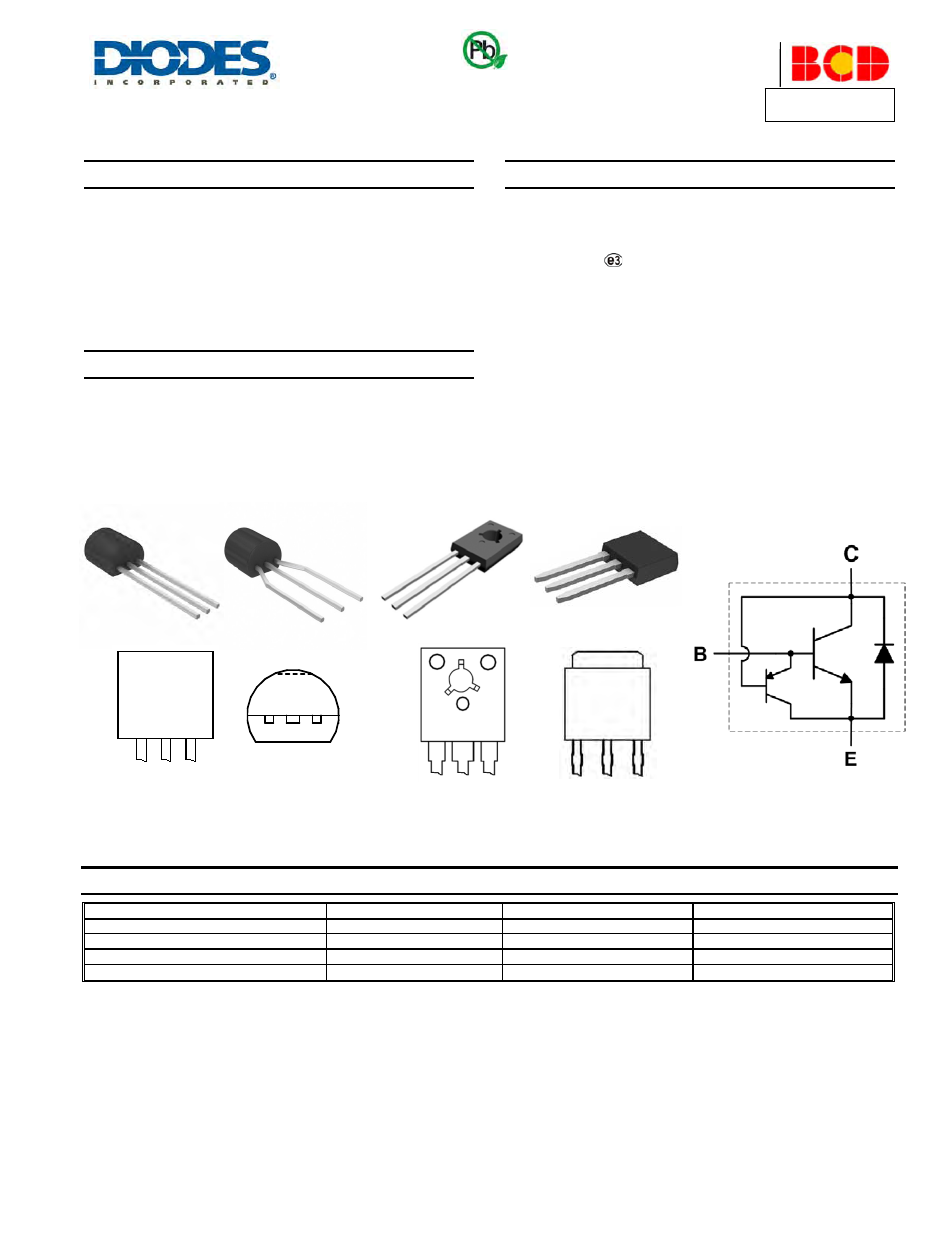

APT13003D

Datasheet Number: DS36347 Rev. 1 - 2

1 of 7

www.diodes.com

July 2013

© Diodes Incorporated

A Product Line of

Diodes Incorporated

APT13003D


450V NPN HIGH VOLTAGE POWER TRANSISTOR

Features

 BV

CEO

> 450V

 BV

CES

> 700V

 BV

EBO

> 9V

I

C

= 1.5A high Continuous Collector Current

Integrated Collector-Emitter Diode to act as free-wheeling diode

Anti-saturation for faster switching

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Applications

Low power AC-DC SMPS for:

Battery Chargers for Mobile Phone / Tablets / Smartphones

Power Supply for DVD / STB

 LED

lighting


Mechanical Data

Case: TO92, TO126 or TO251

Case Material: Molded Plastic, "Green" Molding Compound; UL
Flammability Classification Rating 94V-0

Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208

Weight: TO92: 200mg (Approximate)
TO126: 400mg (Approximate)
TO251: 340mg (Approximate)























Ordering Information

(Note 4)

Product

Package

Marking

Quantity

APT13003DZ-G1

TO92 (Straight Legs)

13003DZ-G1

10,000 Bulk, Loose per Box

APT13003DZTR-G1

TO92 (Joggled Legs)

13003DZ-G1

2,000 Taped, per Ammo Box

APT13003DU-G1

TO126

GU13003D

4,000 Bulk, Loose per Box

APT13003DI-G1

TO251

APT13003DI-G1

3,600 per Box in Tubes

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html









TO126

TO251

Device Schematic

Green

TO92

(Bulk)

TO92

(Ammo)

Flat Face

View

Pin-Out

E

C

B

Bottom View

B

C

E

E

C

B

Front Face View

Pin-Out

E

C

B

Front Face View

Pin-Out
