DC0150ADJ / DC0150BDJ
Document number: DS31480 Rev. 3 - 2
1 of 6
www.diodes.com
April 2009
© Diodes Incorporated
DC0150ADJ / DC0150BDJ
NEW PROD
UC
T
COMPLEMENTARY NPN/PNP SURFACE MOUNT TRANSISTOR
Features
•
Epitaxial Planar Die Construction
• Ideally Suited for Automated Assembly Processes
•
Lead Free By Design/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
• Ultra Small Package
Mechanical Data
• Case:
SOT-963
• Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020D
• Terminals: Finish ⎯ Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
• Marking Information: See Page 5
•
Ordering Information: See Page 5
•
Weight: 0.0027 grams (approximate)
Maximum Ratings–Q1 NPN
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Collector-Base Voltage V CBO
60 V
Collector-Emitter Voltage V
CEO
50 V
Emitter-Base Voltage V
EBO
5 V
Collector Current – Continuous I
C
100 mA
Base Current I B
30 mA
Maximum Ratings–Q2 PNP
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Collector-Base Voltage V
CBO
-50 V
Collector-Emitter Voltage V
CEO
-50 V
Emitter-Base Voltage V
EBO
-5 V
Collector Current - Continuous I C
-100 mA
Base Current I
B
-30 mA
Thermal Characteristics
Characteristic Symbol Value Unit
Power Dissipation (Note 3) P
D
300 mW
Thermal Resistance, Junction to Ambient (Note 3) R θJA 417 °C/W
Operating and Storage Temperature Range T
J
, T
STG
-55 to +150 °C
Notes: 1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on FR-4 PCB with minimum recommended pad layout.

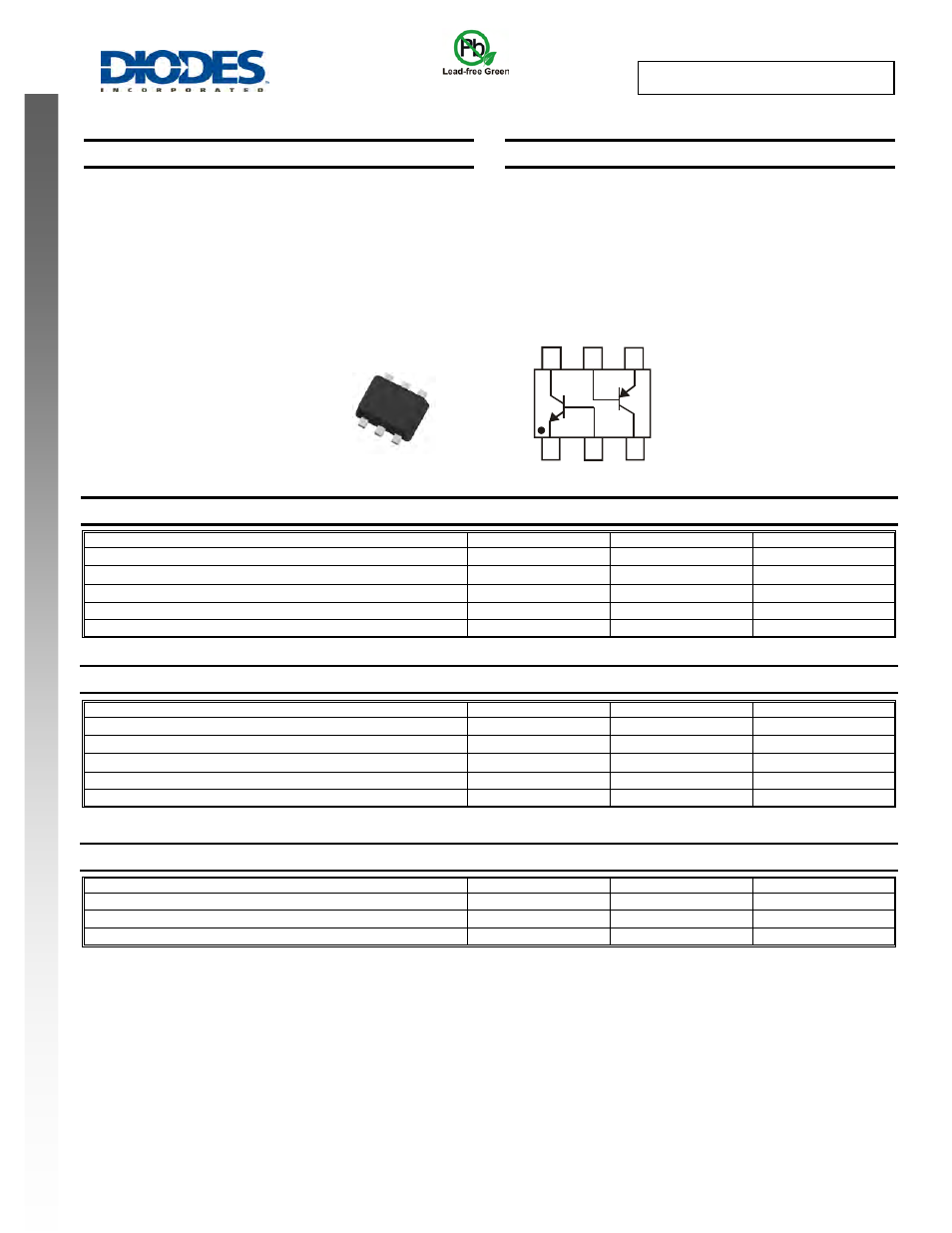

Device Schematic
6
Q1 Q2
5 4
3 1 2
Top View
SOT-963
