BC847CDLP
Document number: DS30817 Rev. 7 - 2
5 of 6
www.diodes.com
May 2013
© Diodes Incorporated
BC847CDLP

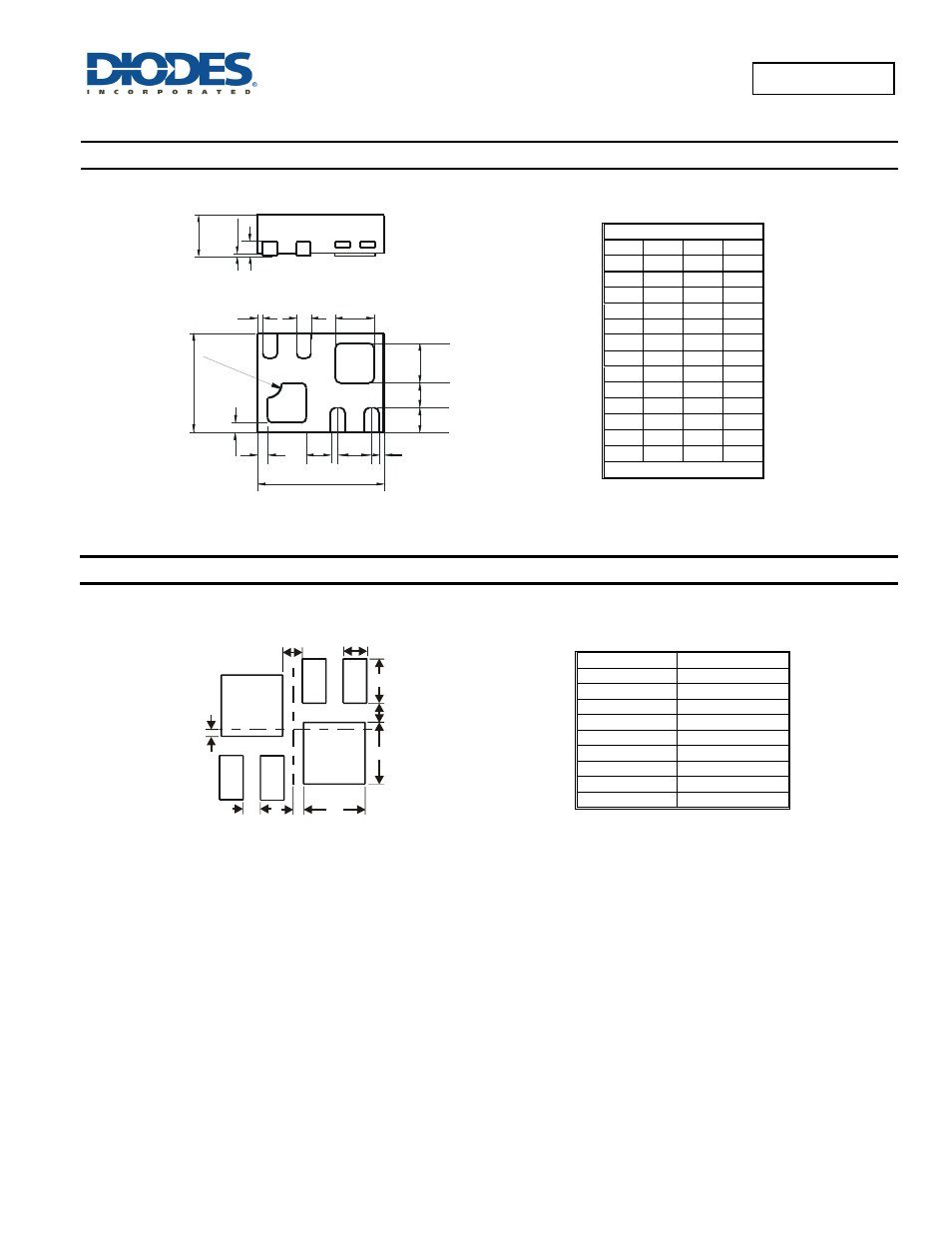

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X2-DFN1310-6
Dim Min Max Typ
A  0.40 
A1 0 0.05 0.02
A3   0.13
b 0.10 0.20 0.15
D 1.25 1.38 1.30
d   0.25
D2 0.30 0.50 0.40
E 0.95 1.075 1.00
e   0.35
E2 0.30 0.50 0.40
f   0.10
L 0.20 0.30 0.25
Z   0.05
All Dimensions in mm
Dimensions Value (in mm)
G1 0.16
G2 0.17
G3 0.15
X1 0.52
X2 0.20
Y1 0.52
Y2 0.375
a 0.09
b 0.06
A
A1
A3
E
B
L
D
D2
E2
d
e d f
Z
z
R0.15
0
b
G3
a
G2 X2
Y2
Y1
G1
X1
