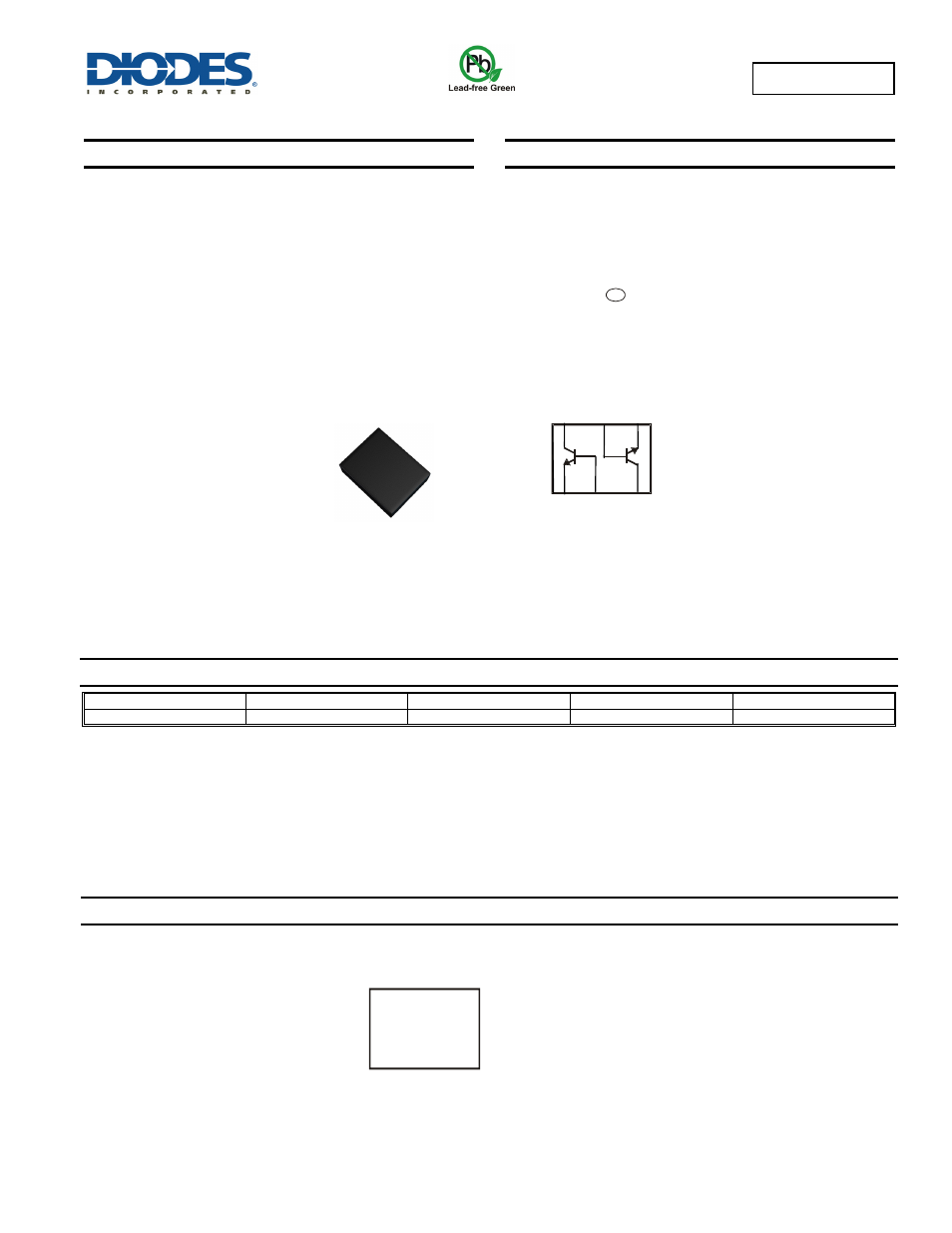

BC847CDLP
Document number: DS30817 Rev. 7 - 2
1 of 6
May 2013
© Diodes Incorporated
BC847CDLP
1M
45V DUAL NPN SMALL SIGNAL TRANSISTOR
Features
BV
CEO
> 45V
Low profile 0.4mm high package for thin applications
Ultra-Small Surface Mount Package
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
X2-DFN1310-6
Nominal package height: 0.4mm
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - NiPdAu, Solderable per MIL-STD-202,
Method 208
Weight: 0.0015 grams (approximate)
Ordering Information
(Note 4)
Part Number
Marking
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
BC847CDLP-7 1M
7
8
3000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4.
For packaging details, go to our website at ht
Marking Information
Top View
X2-DFN1310-6
C
B
B
E
E
C
Device Schematic
Top View
1M = Product Type Marking Code
(Top View)
e4
