DCP69/-16/-25
Document number: DS30798 Rev. 7 - 2
1 of 5
April 2012
© Diodes Incorporated

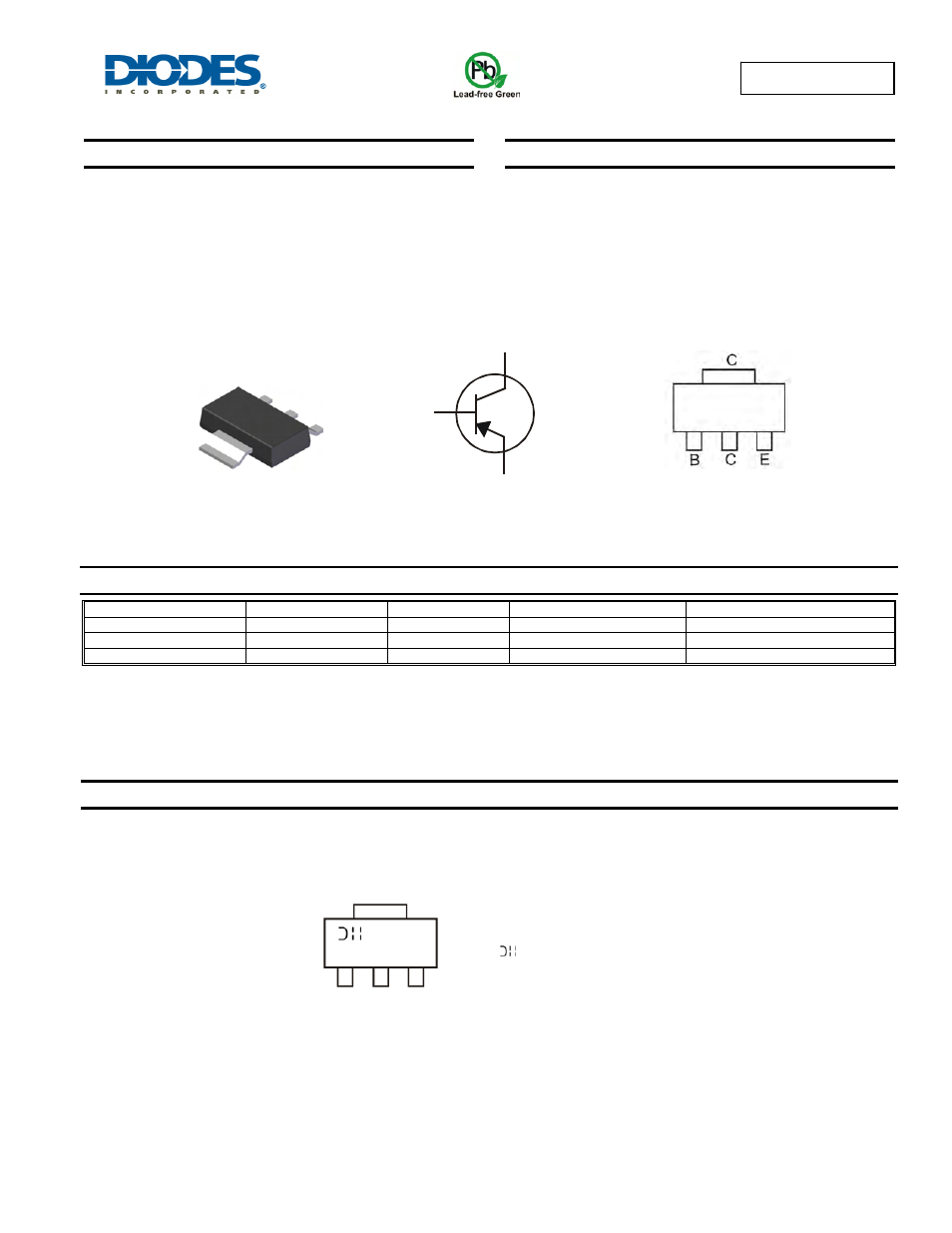

DCP69/-16/-25
20V PNP SURFACE MOUNT TRANSISTOR
Features
•
Epitaxial Planar Die Construction
•
Complementary NPN Type Available (DCP68)
•
Ideally Suited for Automated Assembly Processes
•
Ideal for Medium Power Switching or Amplification Applications
•
Totally Lead-Free & Fully RoHS compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT223
•
Case Material: Molded Plastic, "Green Molding” Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin
•
Solderable per MIL-STD -202, Method 208
•
Weight: 0.112 grams (approximate)
Ordering Information
(Note 3)
Part Number
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DCP69-13 P12 13
12
2500
DCP69-16-13 P12-16 13
12
2500
DCP69-25-13 P12-25 13
12
2500
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
3. For packaging details, go to our website at
Marking Information
Top View
Device Schematic
Top View
Pin Out Configuration
xxx = Product Type Marking Code
P12 = DCP69
P12-16 = DCP69-16
P12-25 = DCP69-25
= Manufacturer’s code marking
YWW = Date Code Marking
Y = Last digit of year (ex: 1 = 2011)
WW = Week code (01 – 53)
xxx
YWW
C
E
B
SOT223
