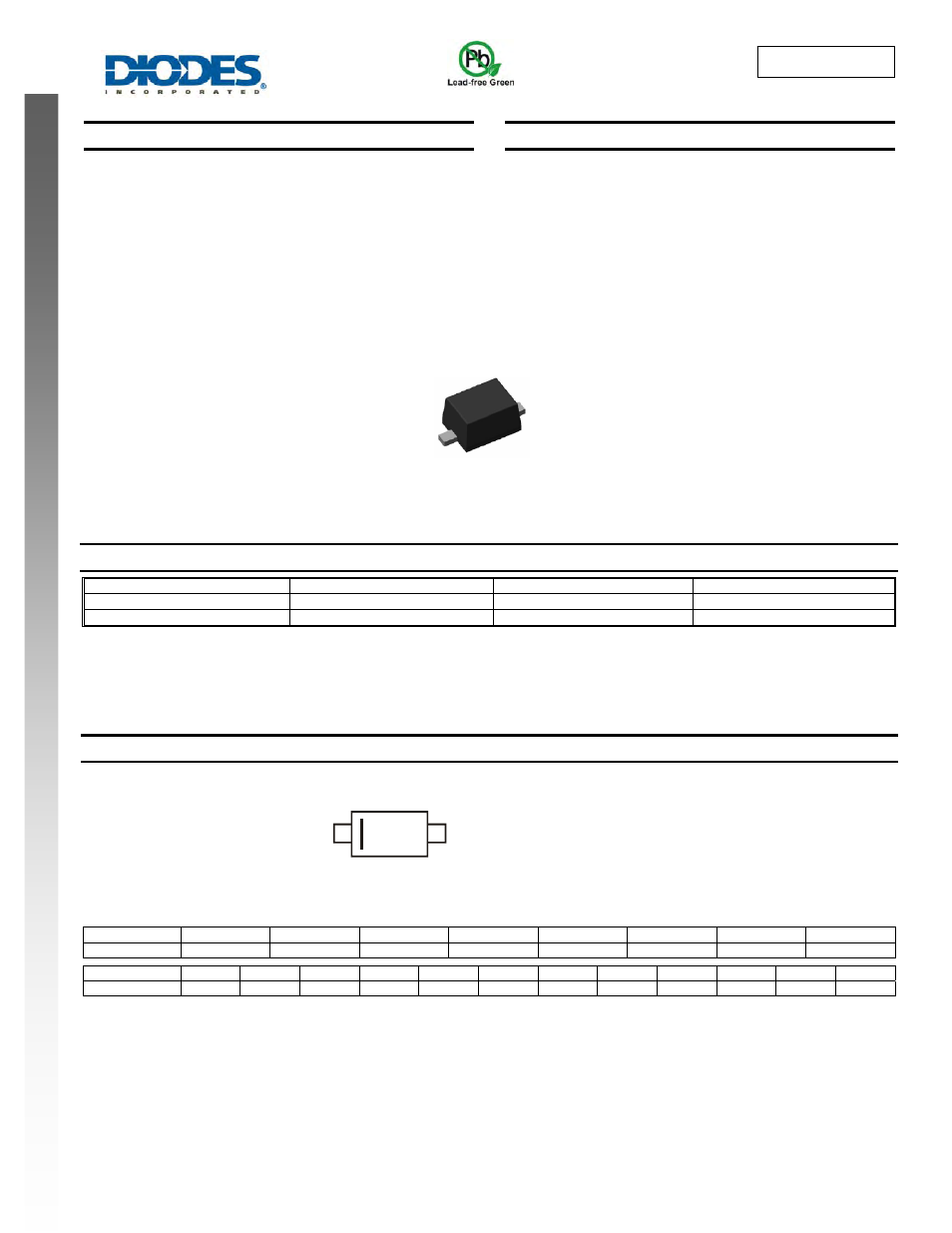

SURFACE MOUNT FAST SWITCHING DIODE

Features

Fast Switching Speed: t

rr

≤ 4.0ns

Low Leakage Current: I

R

≤ 25nA

Low Capacitance: C

T

≤ 4pF

Flat Lead for High Thermal Efficiency

Small Surface Mount Package

Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)

"Green" Device (Note 2)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

SOD323F

Case Material: Molded Plastic, “Green Molding Compound”.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: Cathode Band

Terminals: Finish - Matte Tin annealed over Copper Alloy
leadframe. Solderable per MIL-STD-202, Method 208

Weight: 0.007 grams (approximate)

Ordering Information

(Note 3)

Part Number Qualification

Case

Packaging

1N4448WSF-7

Commercial

SOD323F

3000/Tape & Reel

1N4448WSFQ-7

Automotive

SOD323F

3000/Tape & Reel

Notes:

1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com.
3. For packaging details, go to our website at http://www.diodes.com.




Marking Information











Date Code Key

Year

2011

2012

2013

2014

2015

2016

2017

2018

Code

Y Z A B C D E F

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D


Top View

SOD323F

TK = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)

TK

YM
