BYY57A / BYY58A
Thermal resistance
Parameter Symbol Value Unit
Junction to case R
θJC
0.8 °C/W
Thermal characteristics

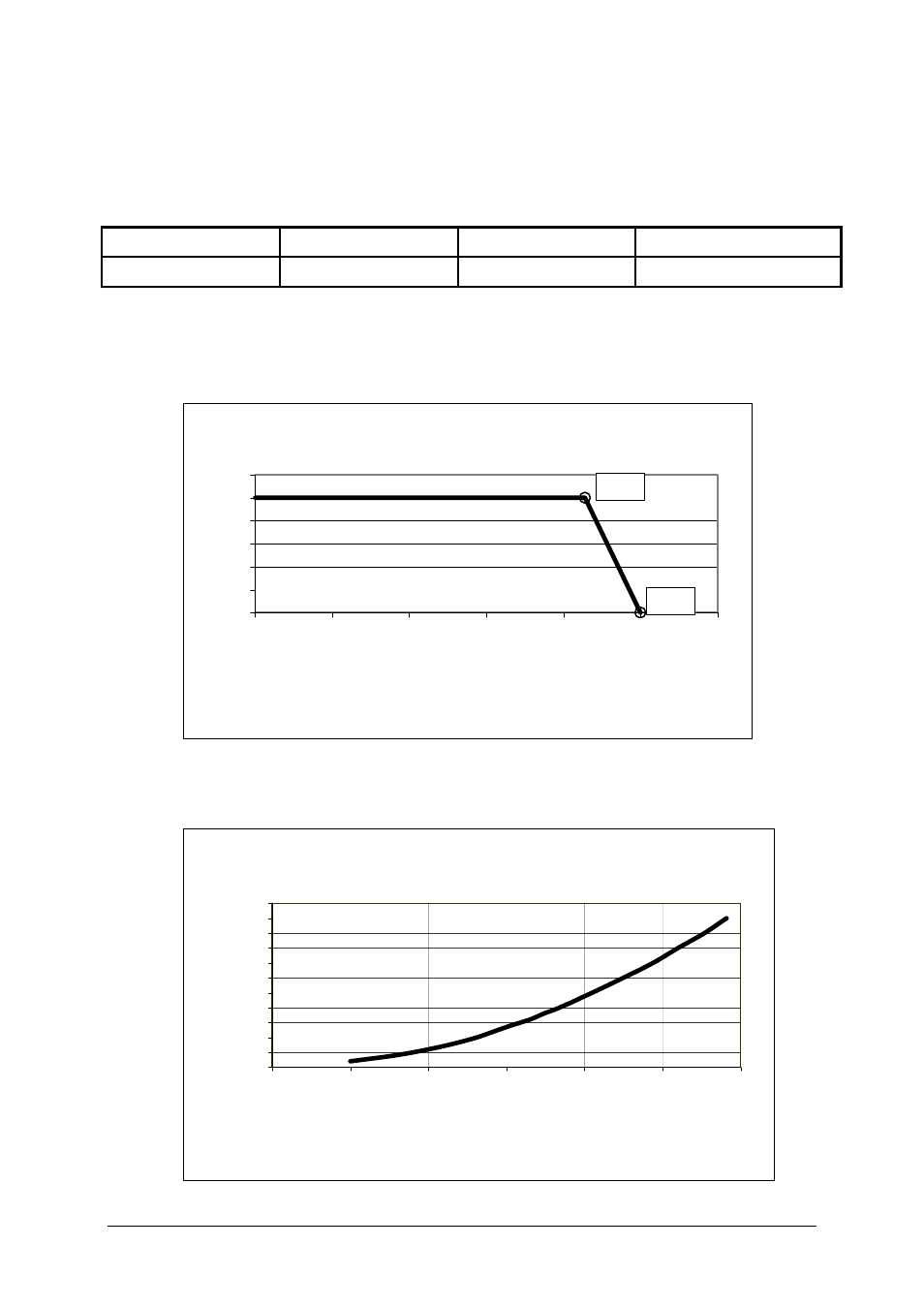

Forward current derating diagram
200°C
164°C
0
10
20
30
40
50
60
-50 0 50 100 150 200 250
T
C
(°C)
I F
(A)
Electrical characteristics (at T
amb
= 25°C unless otherwise stated)
Forward voltage characteristic
0
5
10
15
20
25
30
35
40
45
50
55
0,75 0,8 0,85 0,9 0,95 1 1,05
V
F
(V)
I F
(A)
