BYY57A / BYY58A
50A Silicon Power Rectifier Diode
Part no.
Description
The BYY57A/58A are hermetically sealed 50A-
diodes, which are available in different reverse
voltage classes up to 800V. The diodes can be delivered with limited forward
voltage and reverse current differences for
parallel connecting in rectifier stacks and back-
off-diodes
Features
• Forward current 50A
• Reverse voltage 75V – 800V
• Hermetic press-fit package
• Available in different modifications of the
package
Applications
• Power supplies
• Rectifier diode in car generators
• Rectifier bridges/stacks
• Back-off-diodes
Pinout details
BYY57A: 1 – cathode; 2 - anode
BYY58A: 1 – anode; 2 - cathode

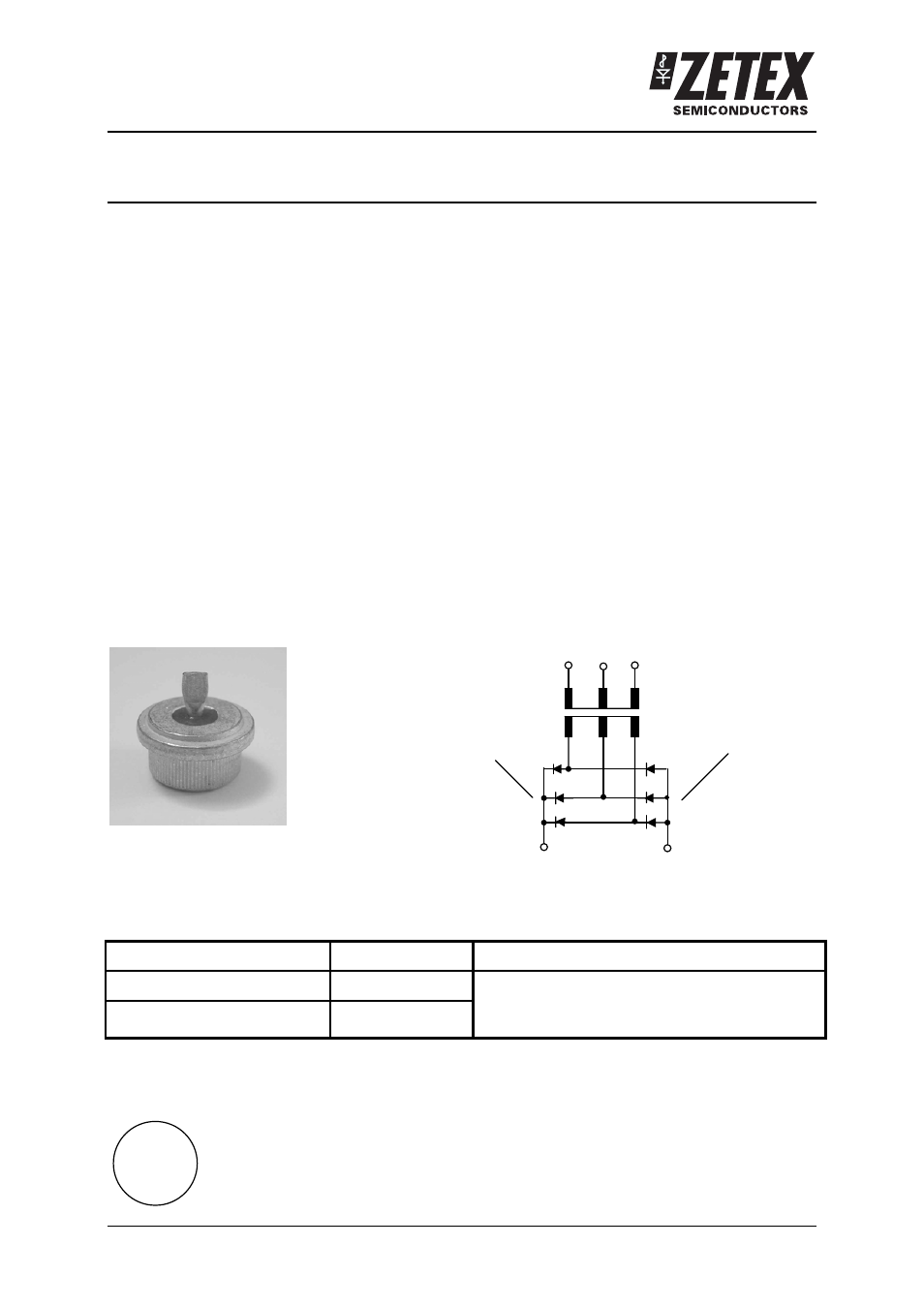

Typical application circuit
Six pulse
bridge
connection
~ ~ ~
3 x BYY57A-700 3 x BYY58A-700
+ -
1
2
Ordering information
Device Quantity per box Options
BYY57A-75; …; BYY57A-800 500
BYY58A-75; …; BYY58A-800 500
The package quantities for the different package
modifications are included in
“PressFitPackageModifications.pdf”
Device marking
Devices are identified by type. Colour of marking: BYY57A- black, BYY58A – red
422........................................……. date code 422 = 2004 week 22
ZETEX
BYY57...……………………………... diode type
A400 ……………………………….. 50A diode / repetitive peak reverse voltage V
RRM
(in V) 400
Issue 2 – November 2006 1 www.zetex.com
© Zetex Semiconductors plc 2006
