Diodes ZABG4002 - Manual (Page 6)

ZABG4002
ZABG4002
Document number: DS32047 Rev. 2 - 2
6 of 7
www.diodes.com
February 2010
© Diodes Incorporated
NEW PROD
UC
T
A Product Line of
Diodes Incorporated

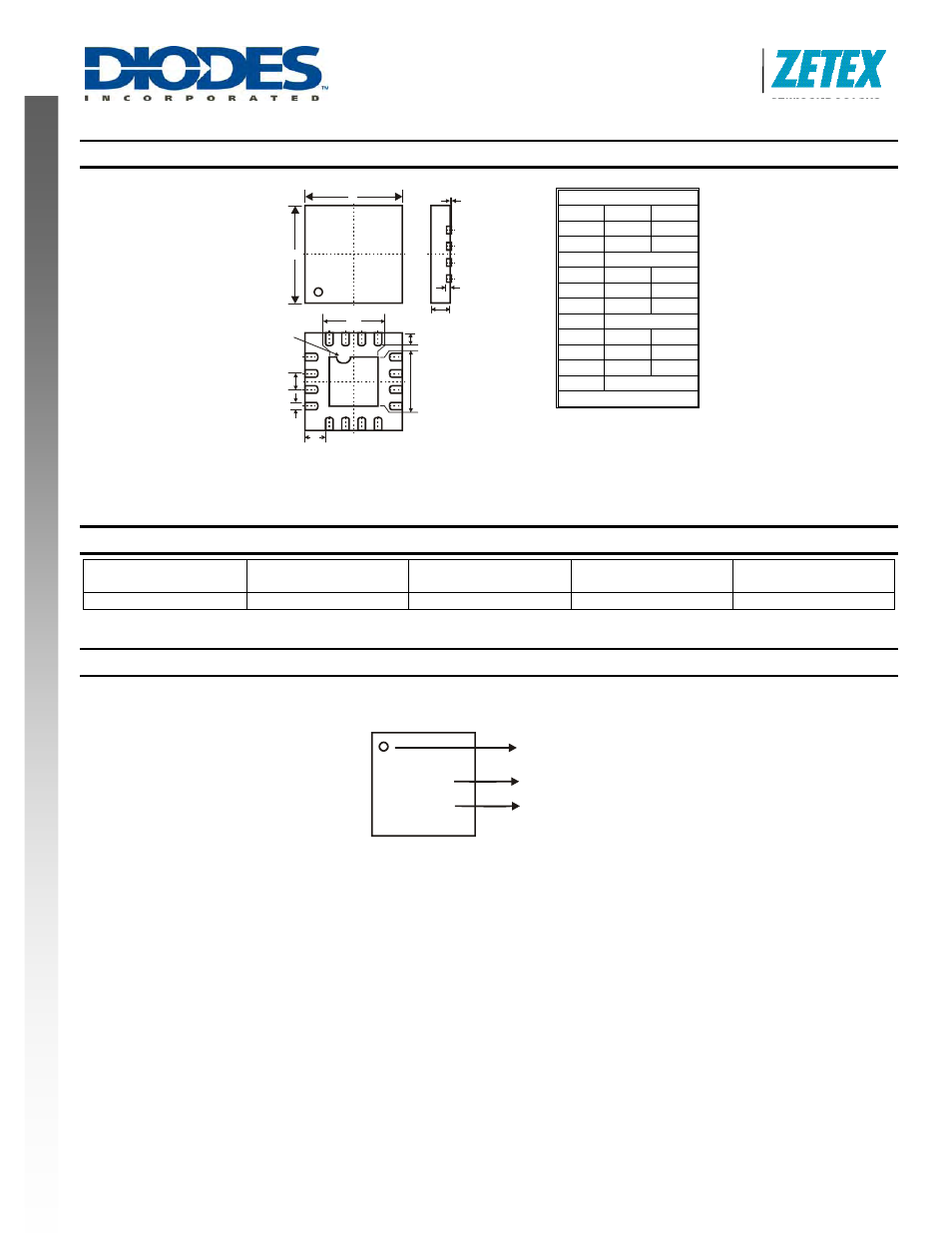

Package Outline Dimensions
Note: Controlling dimensions are in millimetres. Approximate dimensions are provided in inches.
The package appearance may vary as shown, for further details please contact your local Diodes sales office.
Ordering Information
(Note x)
Device Package
Reel Size
(inches)
Tape Width
(mm)
Quantity
(per reel)
ZABG4002JA16TC QFN1633 13 8 3000
Marking Information
QFN16 3x3
Dim Min Max
A 0.55 0.65
A1 0.00 0.05
A3 0.15 Typ
b 0.18 0.28
D 2.95 3.05
D2 1.40 1.60
e 0.50 BSC
E 2.95 3.05
E2 1.40 1.60
L 0.35 0.45
Z 0.625 Typ
All Dimensions in mm
E
D
E2
e
b
Z
D2
L
A
A3
A1
Pin #1 ID
ZABG
4002
YYWW
Pin 1
Part Name
Date Code
Year/Week
